描述

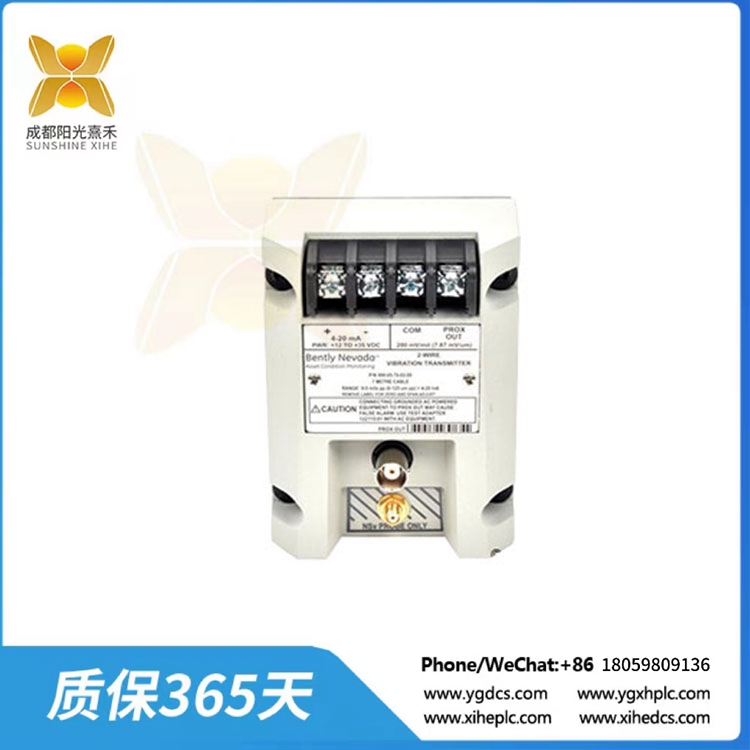

990-05-70-01-CN0-5 振動變送器

產品詳情

990振動變送器主要是離心式空氣壓縮機、小型水泵、電機、風機設備制造商（OEM）為了將簡單的振動信號，按照比例變送成4-20mA信號供給設備控制系統。

該變送器是一款兩線制、環形供電的設備，可以接收本特利3300 Nsv電渦流傳感器系統，變送器可以將信號調整為相應的振動峰值單位，并將此值按比例變成4-20mA的標準模擬信號提供給控制系統，以實現機組的保護、報警和邏輯控制。

990-05-70-01-CN0-5振動變送器特點：

·?集成前置器單元，無需外部裝置

· 非隔離的“out”和“com”端子加上同軸連接器可以提供動態的振動和間隙電壓信號輸出，以便故障診斷

· 零點電位器和量程電位器支持回路調節，相互不會制約

· 采用函數發生器方式作為輸入，在測試輸入端可以快速驗證回路信號輸出

· 上電抑制電路可以消除由于線路瞬變電壓信號而導致的錯誤

· 非正常信號故障電路可防止由于傳感器發生故障或鏈接松動而導致的高輸出或假報警

· 密封結構適用于高濕度（100%結露）環境

· 與3300Nsv傳感器兼容，可以安裝在狹小的空間

訂購信息
990-05-70-01-CN0-5
A: 量程
0 4 ?0-4 mils pp (0-100 um pp)
0 5 ?0-5 mils pp (0-125 um pp)
B: 系統長度
5 0 ?5.0米
7 0 ?7.0米

C: 安裝方式
0 1 ?35 mm DIN導軌安裝
0 2 ?面板安裝
0 3 ?DIN 導軌和面板安裝

D: 認證選項
0 0 ?不需要
C N ?防爆認證

990-05-70-01-CN0-5 振動變送器

Product details

990 vibration transmitters are mainly centrifugal air compressors, small water pumps, motors, fans equipment manufacturers (Oems) in order to send simple vibration signals to 4-20mA signals in proportion to the equipment control system.

The transmitter is a two-wire, ring-powered device that can receive the Bentley 3300 Nsv eddy current sensor system, the transmitter can adjust the signal to the corresponding vibration peak unit, and this value is proportional to the 4-20mA standard analog signal provided to the control system to achieve unit protection, alarm and logic control.

990-05-700-01-CN0-5 Vibration transmitter Features:

· Integrated preprocessor unit, no external device required

Non-isolated “out” and “com” terminals plus coaxial connectors provide dynamic vibration and gap voltage signal output for fault diagnosis

· Zero point potentiometer and range potentiometer support loop regulation and will not restrict each other

· Using function generator as input, the loop signal output can be quickly verified at the test input

The power-on suppression circuit can eliminate errors caused by transient voltage signals of the line

· Abnormal signal failure circuit prevents high output or false alarms due to faulty sensors or loose links

· The sealing structure is suitable for high humidity (100% condensation) environment

· Compatible with 3300Nsv sensors, can be installed in tight Spaces

Ordering information
990-05-70-01-CN0-5
A: The range
0 4 ?0-4 mils pp (0-100 um pp)
0 5 ?0-5 mils pp (0-125 um pp)
B: System length
5 0 5.0 meters
7 0 7.0 meters

C: Installation mode
0 1 35 mm DIN rail mounting
0 2 Panel installation
0 3 DIN rail and panel mounting

D: authentication option
0 0 No need
C N Explosion-proof certification
