描述

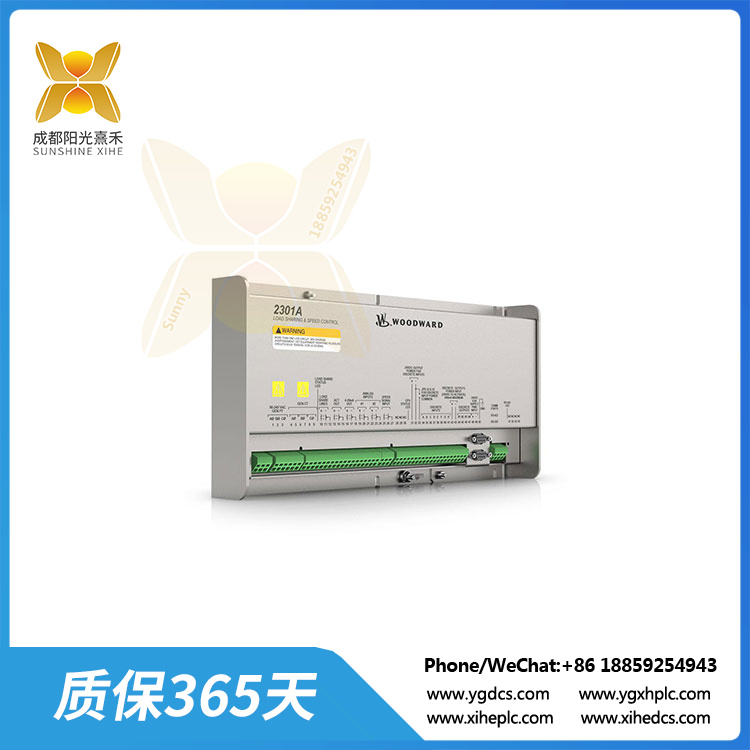

9907-023 輸出I/O模塊

技術描述：

2301A速度控制控制柴油或燃?xì)獍l(fā)動機，或蒸汽或燃?xì)廨啓C(jī)的速度或負載。
這些動力源在本手冊中被稱為“原動機”。

控制裝置安裝在一個金屬板底盤上，由一塊印刷電路板組成。
所有的電位器都可以從機箱的前面進入。

在2301A速度控制提供控制在等時模式與下垂可通過外部連線電位器。

等時模式用于控制原動機的恒定速度，只要它能夠提供負載。當與Woodward負載傳感器共享負載時，也使用等時傳感器。外部下垂用于速度控制，作為負載的函數，當一個素?cái)?shù)原動機在無限母線上運行，或兩個或多個原動機并聯運行。

用于原動機的2301A系統包括:
2301A電子調速裝置，外部電源，測速裝置(MPU)，
比例致動器，用于定位燃油或蒸汽計量裝置。

9907-023 輸出I/O模塊

Technical description:

2301A Speed control Controls the speed or load of a diesel or gas engine, or a steam or gas turbine.
These power sources are referred to in this manual as “prime movers.”

The control unit is mounted on a metal plate chassis and consists of a printed circuit board.
All potentiometers can be accessed from the front of the case.

The 2301A speed control provides control in isochronous mode with droop available via an externally wired potentiometer.

Isochronous mode is used to control the constant speed of the prime mover as long as it can provide load. Isochronous sensors are also used when the load is shared with Woodward load sensors. External droop is used for speed control, as a function of load, when a prime prime mover is running on an infinite bus, or two or more prime movers are running in parallel.

2301A systems for prime movers include:
2301A Electronic speed regulating device, External power supply, Speed measuring device (MPU),
Proportional actuator for positioning fuel or steam metering devices.
