描述
9907-147 3個lcd | 2行16個字符
產品描述
型號9907-147使用磁性拾音器來監測底漆速度的超速條件。本系列設備易受電磁干擾、振動、潮濕和工作溫度超出-25 ~ +60°C(-13 ~ +140°F)的影響。protect超速保護裝置應安裝在通風良好、有維修空間、遠離陽光直射、遠離大電流或高壓設備的地方。
該脫電跳閘系統具有100 Hz至32 kHz的速度感應頻率范圍和±(0.05% x跳閘點在Hz +2 Hz)精度等級。超速檢測功能由三個獨立的速度傳感單元執行,它們獨立地監測速度并執行速度計算。這三個單元是三選二的配置,所以只有當至少兩個單元檢測到超速情況時,原動機跳閘繼電器才會發生。
ProTech超速保護型號9907-147的觸發點頻率范圍為250hz至25khz。跳閘設定點分別為每個單元編程(為了精確輸出,它們必須編程相同),使用操作界面。每個速度傳感單元有一個接口。每一個都有:
兩行16字符液晶顯示
觸控板
電位計
領導的指標
報警輸出
編程和測試功能被鎖定,以防止未經授權的更改。一鍵開關之間移動監控模式和程序模式連接到所有三個單位。

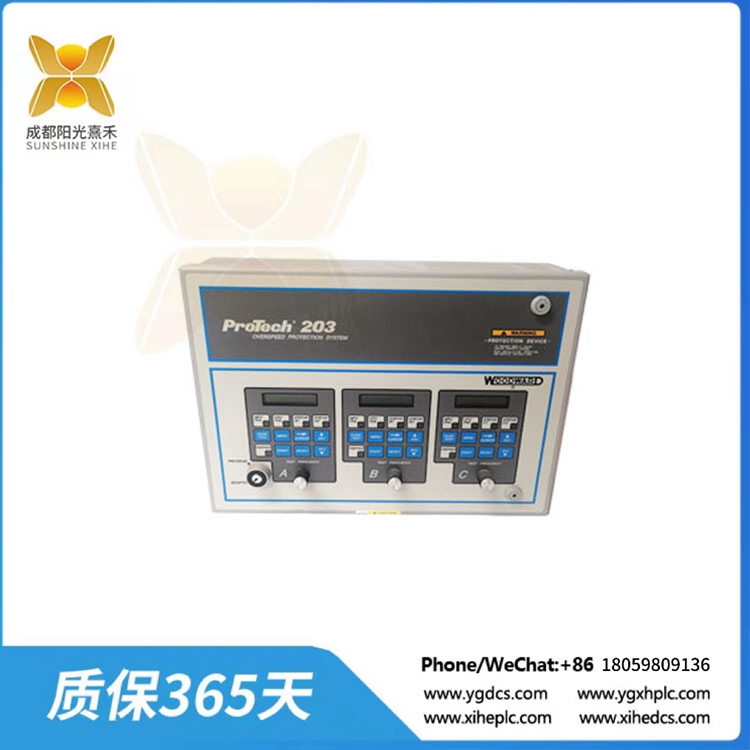

9907-147
9907-147? 3個lcd | 2行16個字符
Product Description
Model 9907-147 uses magnetic pickups to monitor primer speed for overspeed conditions.? Devices in this series are susceptible to electromagnetic interference, vibration, moisture, and temperatures outside of the operating temp range of –25 to +60 °C (–13 to +140 °F). ProTech overspeed protection models should be installed in locations that allow adequate ventilation for cooling, space for servicing, and away from direct sunlight, and away from high-current or high-voltage devices.
This de-energize-to-trip system has a 100 Hz to 32 kHz speed-sensing frequency range and a ±(0.05% x Trip Point in Hz +2 Hz) accuracy rating. Overspeed detection functions are carried out by three individual speed-sensing units, which act independently to monitor speed and perform speed calculations. The three units are in a two-out-of-three vote configuration, so a prime mover trip relay will only occur if overspeed conditions are detected by at least two of the units.
The trip-point frequency range of ProTech overspeed protection model 9907-147 is 250 Hz to 25 kHz. Trip set points are programmed for each of the units separately (they must be programmed identically for accurate outputs) using the operator interfaces. There is one interface per speed-sensing unit. Each one has:
Two-line by 16-character LCD display
Touchpad
Potentiometer
LED indicators
Alarm output
Programming and testing functions are locked to prevent unauthorized changes. One key switch?to move between MONITOR mode and PROGRAM mode is connected to all three units.
