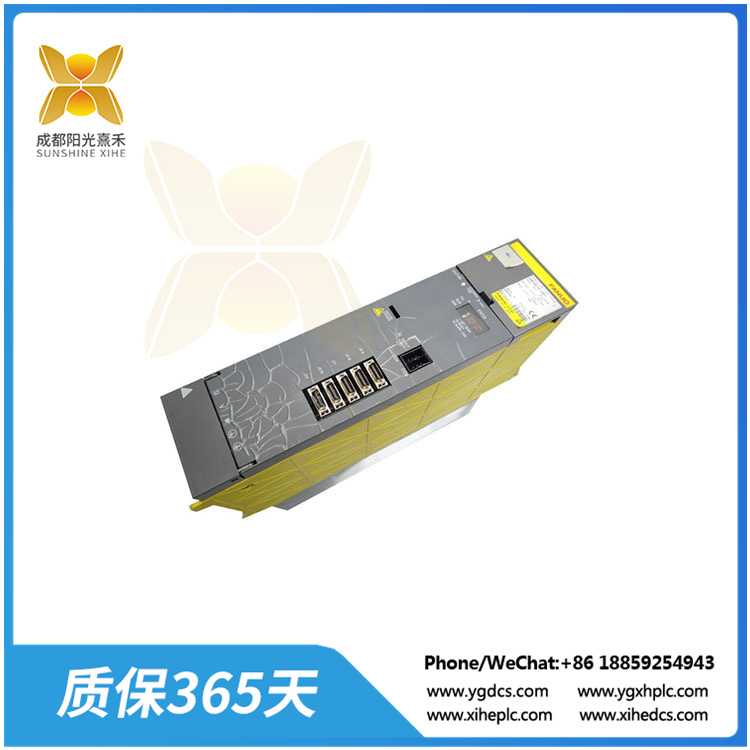

A06B-6082-H206 ALPHA 主軸模塊 MDL SPMC-5.5
fanuc alpha主軸模塊MDL spmc-5.5
制造商:發那科
模型: a06b – 6082 h206 # H510
附加信息:阿爾法主軸模塊MDL SPMC-5.5
預計運輸規模
外形尺寸:263 × 58 × 28mm
重量:.4.3公斤
原產國:美國
A06B-6082-H206 是 Fanuc 制造的主軸放大器模塊，特別是其 Alpha SPMC-5.5 系列的一部分 [1,2,3]。以下是其功能和潛在用途的細分：
- 功能：它控制主軸電機，主軸電機是在數控機床中旋轉刀具的電動機。通過控制放大器，可以精確調節主軸的速度和扭矩。
- 規格：?該特定型號的額定功率為 6.8 kW、230 伏和 27 安培 [1,2,3]。
- 應用：?它用于數控機床中進行各種切割和加工操作，如銑削、鉆孔和攻絲。
與一般數控系統不同，發那科系統采用自己特有的供電系統供電，有的書稱為功率放大器，有的書直接稱為功率模塊。
電源模塊作為獨立模塊安裝在機床電柜中。今天就簡單介紹一下電源模塊的接線方式。在電源模塊面板上粘貼如下標簽，然后依次通過各接口。
①—TB1:直流電源輸出端子
該接口連接主軸放大器和伺服放大器的直流輸入端，為主軸放大器和伺服放大器提供DC300V電源。
②—狀態指示
指示燈用于指示電源模塊的狀態，有異常時顯示相應的告警碼。
③-CX1A
單相AC200V輸入接口。
④-CX1B
單相200VAC輸出接口。
⑤直流電路連接點狀態指示
指示燈完全熄滅后，才能導入模塊線纜
請進行各種操作，否則會有危險。
A06B-6082-H206 ALPHA 主軸模塊 MDL SPMC-5.5
fanuc alpha Spindle module MDL spmc-5.5
Manufacturer: Fanuc
Model (s): a06b-6082 h206 # H510
Additional information: Alpha Spindle module MDL SPMC-5.5
Expected transport scale
Dimensions :263 × 58 × 28mm
Weight :.4.3 kg
Country of origin: USA
The A06B-6082-H206 is a spindle amplifier module manufactured by Fanuc, specifically as part of its Alpha SPMC-5.5 series [1,2,3]. Here’s a breakdown of its functions and potential uses:
Function: It controls the spindle motor, which is the motor that rotates the tool in a CNC machine tool. By controlling the amplifier, the speed and torque of the spindle can be precisely adjusted.
Specifications: This particular model is rated at 6.8 kW, 230 volts, and 27 amps [1,2,3].
Application: It is used in CNC machine tools for various cutting and machining operations such as milling, drilling and tapping.
Different from the general CNC system, Fanuc system uses its own unique power supply system, some books are called power amplifiers, and some books are directly called power modules.
The power module is installed in the machine cabinet as an independent module. Today, I will briefly introduce the wiring method of the power module. Attach the following labels to the power module panel and pass them through each port.
① – TB1: indicates the DC power output terminal
This interface connects the DC input of the spindle amplifier and the servo amplifier to provide DC300V power to the spindle amplifier and the servo amplifier.
② – Status indication
Indicator Indicates the status of the power module. If an exception occurs, the alarm code is displayed.
③-CX1A
Single-phase AC200V input interface.
④-CX1B
Single phase 200VAC output interface.
⑤ Direct current connection point status indication
Import the module cable only after the indicator is completely off
Please perform various operations, otherwise it will be dangerous.
