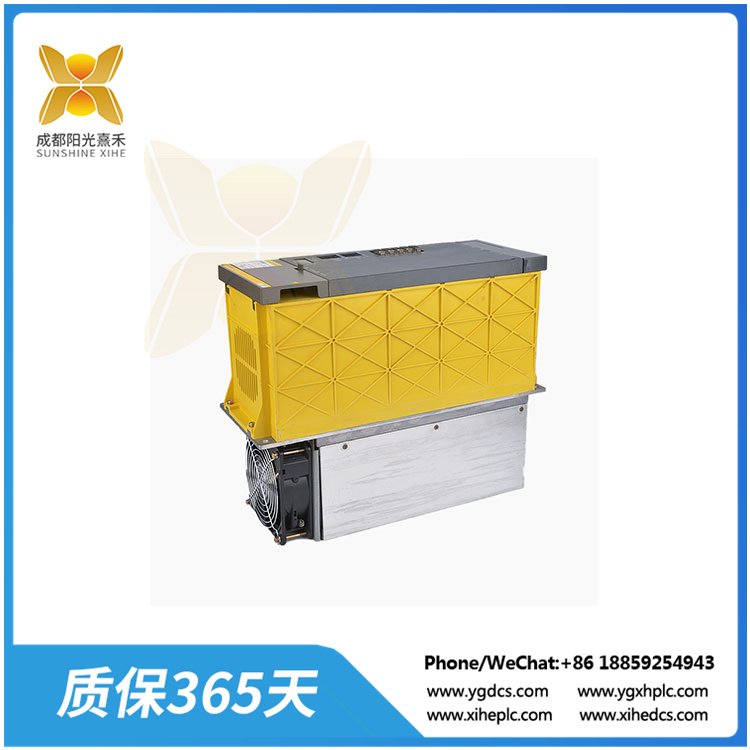

A06B-6082-H226 ALPHA 主軸模塊 MDL SPMC-5.5
fanuc alpha主軸模塊MDL spmc-5.5
制造商:發那科
模型: a06b – 6082 h206 # H510
附加信息:阿爾法主軸模塊MDL SPMC-5.5
預計運輸規模
外形尺寸:263 × 58 × 28mm
重量:.4.3公斤
原產國:美國
與一般數控系統不同，發那科系統采用自己特有的供電系統供電，有的書稱為功率放大器，有的書直接稱為功率模塊。
電源模塊作為獨立模塊安裝在機床電柜中。今天就簡單介紹一下電源模塊的接線方式。在電源模塊面板上粘貼如下標簽，然后依次通過各接口。
①—TB1:直流電源輸出端子
該接口連接主軸放大器和伺服放大器的直流輸入端，為主軸放大器和伺服放大器提供DC300V電源。
②—狀態指示
指示燈用于指示電源模塊的狀態，有異常時顯示相應的告警碼。
③-CX1A
單相AC200V輸入接口。
④-CX1B
單相200VAC輸出接口。
⑤直流電路連接點狀態指示
指示燈完全熄滅后，才能導入模塊線纜
請進行各種操作，否則會有危險。
A06B-6082-H226 ALPHA 主軸模塊 MDL SPMC-5.5
A06B-6082-H206#H510 FANUC ALPHA SPINDLE MODULE MDL SPMC-5.5
Manufacturers ：FANUC
Model(s)? ：A06B-6082-H206#H510
Additional Information ：ALPHA SPINDLE MODULE MDL SPMC-5.5
Estimated Shipping Size
Dimensions: 263 × 58 × 28mm
Weight:.4.3?kg
Country of Origin: United States of America
Different from the general numerical control system, Fanuc system uses its own unique power supply system for power supply, some books are called power amplifiers, and some books are directly called power modules.
The power module is installed as an independent module in the electrical cabinet of the machine tool. Today, briefly introduce the wiring of the power module. Label the power module panel as follows:Then go through each interface one by one:
① – TB1: Output terminal of the DC power supply
The interface is connected with the DC input end of the spindle amplifier and servo amplifier to provide DC300V power supply for the spindle amplifier and servo amplifier.
② – Status indication
The LED is used to indicate the status of the power module, and the relevant alarm code is displayed when there is an anomaly.
③—CX1A
Single-phase AC200V input interface.
④—CX1B
Single phase 200VAC output interface.
⑤ – DC circuit connection point status indication
Only after the indicator is completely off, can the module cable be imported
Perform various operations, otherwise it is dangerous.
