描述

A6500-UM? 機械保護系統的一個組件

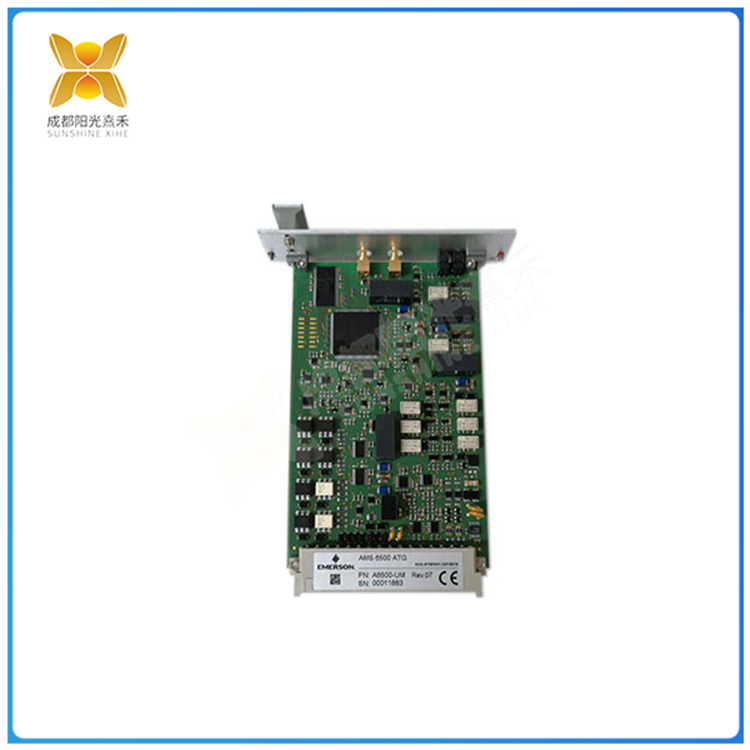

A6500-UM通用測量卡是AMS 6500 ATG機械保護系統的一個組件。該卡配有2個傳感器輸入通道（獨立或組合，根據所選測量模式），與渦流、壓電（加速度計或速度計）、地震（電動）、LF（低頻軸承振動）、霍爾效應和LVDT（與A6500-LC組合）傳感器等最常見的傳感器一起工作。除此之外，該卡還包含5個數字輸入和6個數字輸出。測量信號通過內部RS 485總線傳輸至A6500-CC通信卡，并轉換為Modbus RTU和Modbus TCP/IP協議，以進一步傳輸至主機或分析系統。此外，通信卡通過面板上的USB插座提供通信，用于連接PC/筆記本電腦，以配置卡和可視化測量結果。除此之外，測量結果可以通過模擬輸出0/4-20mA輸出。這些輸出具有公共接地，并且與系統電源電氣隔離。A6500-UM通用測量卡的操作在A6500-SR系統機架中執行，該機架還提供電源電壓和信號連接。A6500-UM通用測量卡提供以下功能：Q軸絕對振動Q軸相對振動Q軸偏心率Q殼體壓電振動Q推力和桿位置、差速器和殼體膨脹、閥位置Q速度和鍵信號輸入，渦流輸入信號和原始信號電壓范圍-1 V至-22 V頻率范圍0至18750 Hz衰減<0.1 db電源電壓-23.25 V/-26.0 V DC可選短路防護最大電源負載35 mA電源精度±1%電源負載變化±1%負載0至100%電源溫度漂移±1%，工作溫度范圍-20°C至+70°C A6500-UM通用測量卡Q雙通道、3U大小、1插槽插件模塊將機柜空間需求從傳統的The A6500-UM

A6500-UM? 機械保護系統的一個組件

The A6500-UM Universal measuring card is a component of the AMS 6500 ATG mechanical protection system. The card is equipped with 2 sensor input channels (independent or combined, depending on the selected measurement mode) and works with the most common sensors such as vortex, piezoelectric (accelerometer or speedometer), seismic (electric), LF (low frequency bearing vibration), Hall effect and LVDT (combined with A6500-LC) sensors. In addition, the card also contains 5 digital inputs and 6 digital outputs. The measurement signals are transmitted via the internal RS 485 bus to the A6500-CC communication card and converted into Modbus RTU and Modbus TCP/IP protocols for further transmission to the host or analysis system. In addition, the communication card provides communication via a USB socket on the panel for connecting a PC/ laptop to configure the card and visualize the measurement results. In addition, the measurement results can be output by analog output 0/4-20mA. These outputs have common ground and are electrically isolated from the system power supply. Operation of the A6500-UM Universal measuring card is performed in the A6500-SR system rack, which also provides power voltage and signal connections. The A6500-UM Universal Measuring card provides the following functions: Q axis absolute vibration Q axis relative vibration Q axis eccentricity Q housing piezoelectric vibration Q thrust and rod position, differential and housing expansion, valve position Q speed and key signal input, Eddy current input signal and original signal voltage range -1 V to -22 V Frequency range 0 to 18750 Hz Attenuation < 0.1db Power supply voltage -23.25V / -26.0V DC Optional short circuit protection Maximum power load 35 mA Power accuracy ±1% Power load change ±1% Load 0 to 100% Power temperature shift ±1%, operating temperature range -20°C to +70°C A6500-UM Universal Measurement card Q Dual-channel, 3-U, 1-slot plug-in module eliminates The need for cabinet space from the traditional A6500-UM
