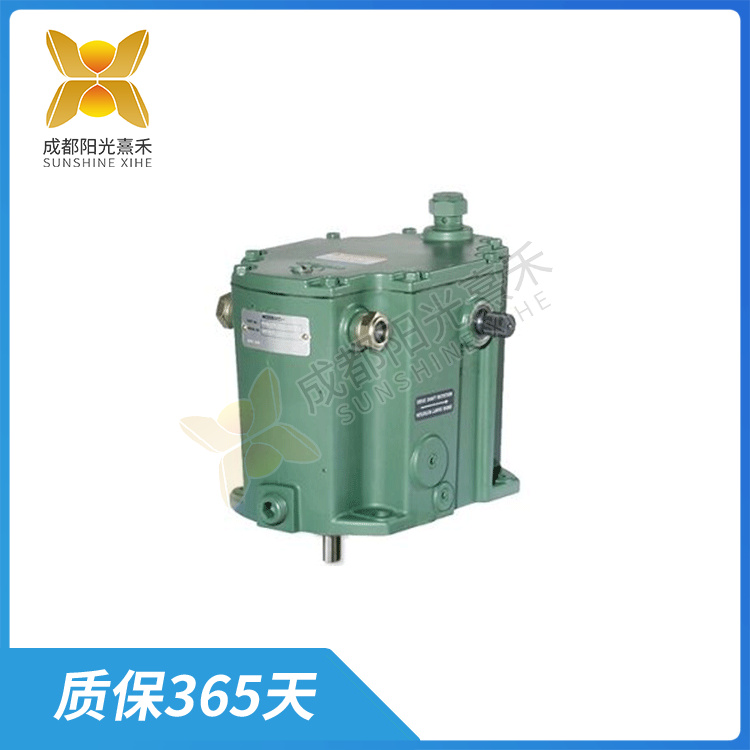

A8516-040 汽輪機機械液壓調速器

A8516-040是一款汽輪機機械液壓調速器是汽輪機控制系統中的重要組成部分，它負責根據汽輪機的運行狀態和外界負荷的變化，自動調節汽輪機的轉速，確保機組在安全、穩定、經濟的狀態下運行。

A8516-040的工作原理主要基于導水葉開度調節過程、硬反饋作用過程和軟反饋作用過程。當機組帶負荷運行時，若外界負荷突然減小，機組的轉速會升高。此時，調速器中的離心飛擺的轉速會同步上升，導致離心飛擺重塊所受的離心力增大，重塊外張。這一動作會帶動引導閥轉動套上移，從而開通引導閥中的通道，使輔助接力器上腔的油排出，導致上腔壓力小于下腔壓力。隨后，主配壓閥閥體會同輔助接力器活塞一起上移，接通壓力油到主配壓閥關閉腔的通路，主接力器活塞右移。這一系列的機械動作會使導水葉開度減小，從而減少進入水輪機的流量，使機組停止加速并恢復到額定轉速。

硬反饋作用過程是調速器實現精確控制的關鍵環節。當調節達到目標時，硬反饋機制會終止調節過程，防止過度調節或調節不足。

此外，A8516-040具備較高的可靠性和穩定性，能夠適應各種復雜的運行環境。同時，隨著技術的不斷發展，現代的機械液壓調速器還具備了更多的智能化和自動化功能，能夠更好地滿足現代汽輪機的控制需求。

需要注意的是，對于機械液壓調速器的維護和管理也非常重要。定期對調速器進行檢查、清潔和維修，確保其處于良好的工作狀態，對于保障汽輪機的安全穩定運行具有重要意義。

總的來說，A8516-040是汽輪機控制系統中的核心部件，它通過精確的自動調節，確保機組在各種運行狀態下都能保持穩定的轉速和性能。

A8516-040 汽輪機機械液壓調速器

A8516-040 is a steam turbine mechanical hydraulic governor is an important part of the steam turbine control system, it is responsible for automatically adjusting the speed of the steam turbine according to the running state of the steam turbine and the change of external load, to ensure that the unit in a safe, stable and economic state of operation.

The working principle of A8516-040 is mainly based on the opening adjustment process of the water guide blade, the hard feedback process and the soft feedback process. When the unit is running with load, if the external load suddenly decreases, the speed of the unit will increase. At this time, the rotational speed of the centrifugal pendulum in the governor will rise synchronously, resulting in the increase of centrifugal force on the centrifugal pendulum weight and the outer tension of the weight block. This action will drive the pilot valve rotation sleeve to move up, thereby opening the channel in the pilot valve, so that the oil in the upper chamber of the auxiliary relay is discharged, resulting in the upper chamber pressure is less than the lower chamber pressure. Subsequently, the main distribution valve body moves up together with the auxiliary relay piston to connect the pressure oil to the main distribution valve closing chamber, and the main relay piston moves to the right. This series of mechanical actions will reduce the opening of the water guide blade, thereby reducing the flow into the turbine, so that the unit stops accelerating and returns to the rated speed.

The process of hard feedback is the key link to realize precise control of the governor. When the adjustment reaches its goal, the hard feedback mechanism terminates the adjustment process and prevents over – or under-adjustment.

In addition, the A8516-040 has high reliability and stability, and can adapt to a variety of complex operating environments. At the same time, with the continuous development of technology, modern mechanical hydraulic governor also has more intelligent and automated functions, which can better meet the control needs of modern steam turbines.

It should be noted that the maintenance and management of mechanical hydraulic governor is also very important. Regular inspection, cleaning and maintenance of the governor to ensure that it is in good working condition is of great significance to ensure the safe and stable operation of the steam turbine.

In general, the A8516-040 is the core component of the turbine control system, which ensures that the unit can maintain stable speed and performance under various operating conditions through precise automatic regulation.
