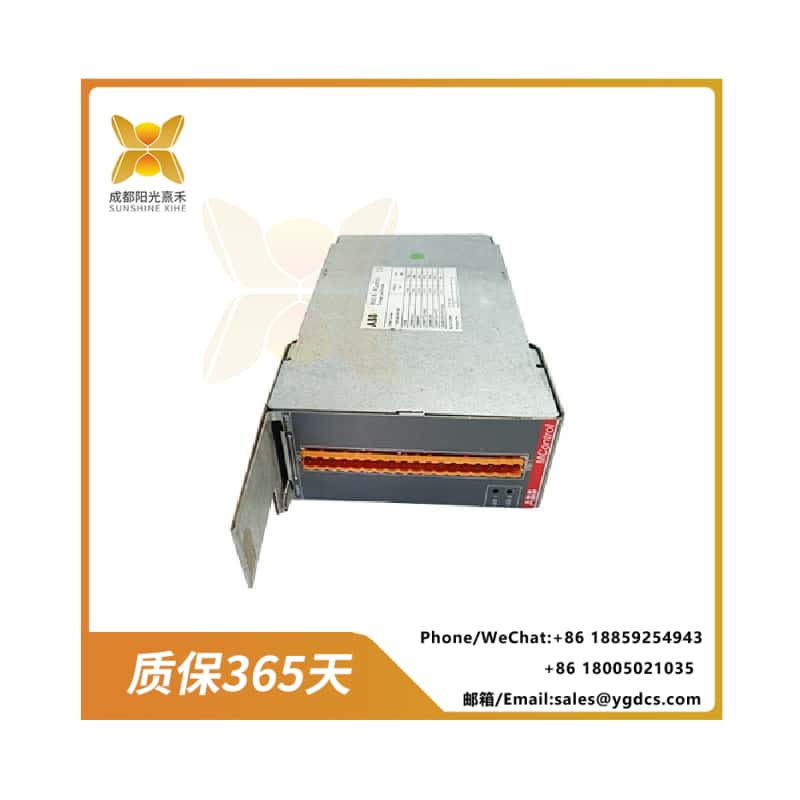

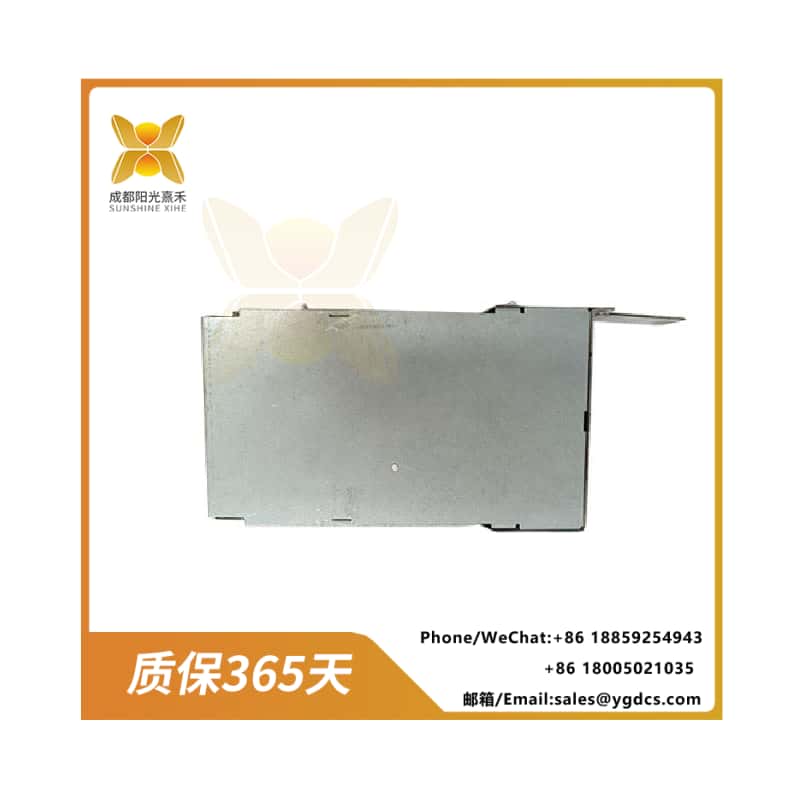

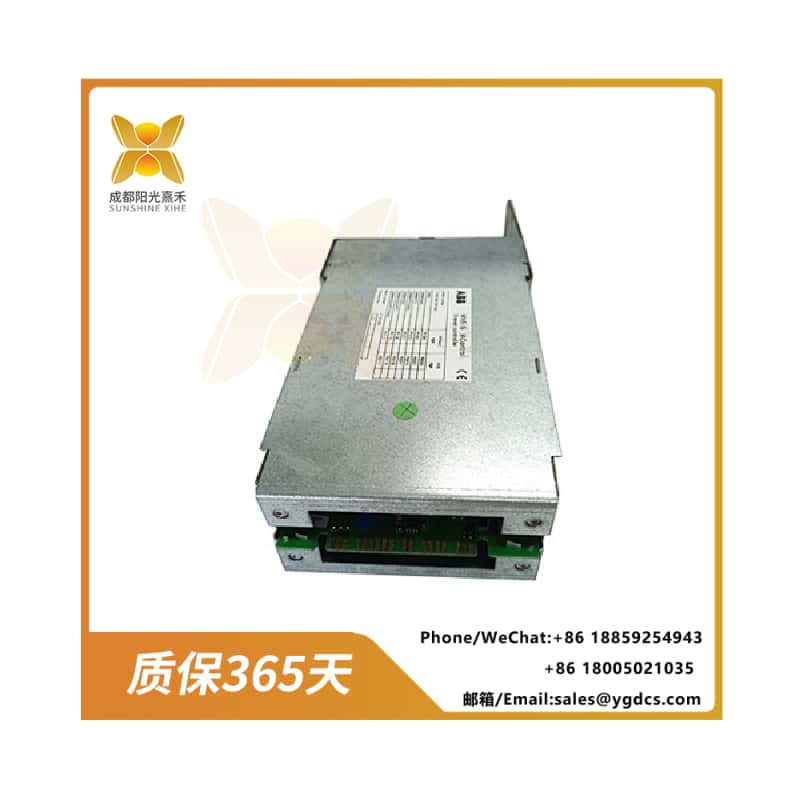

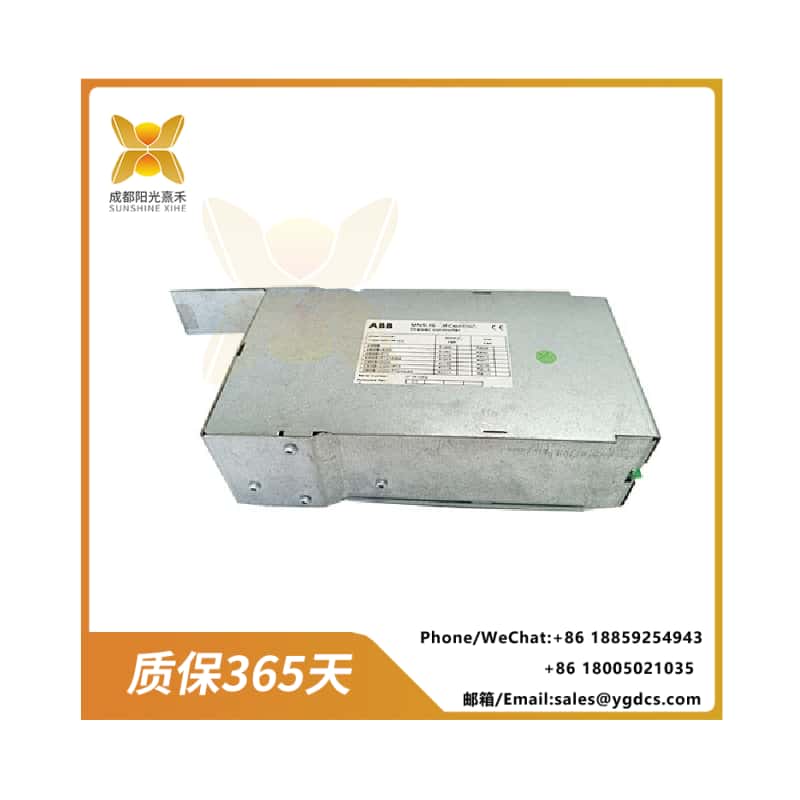

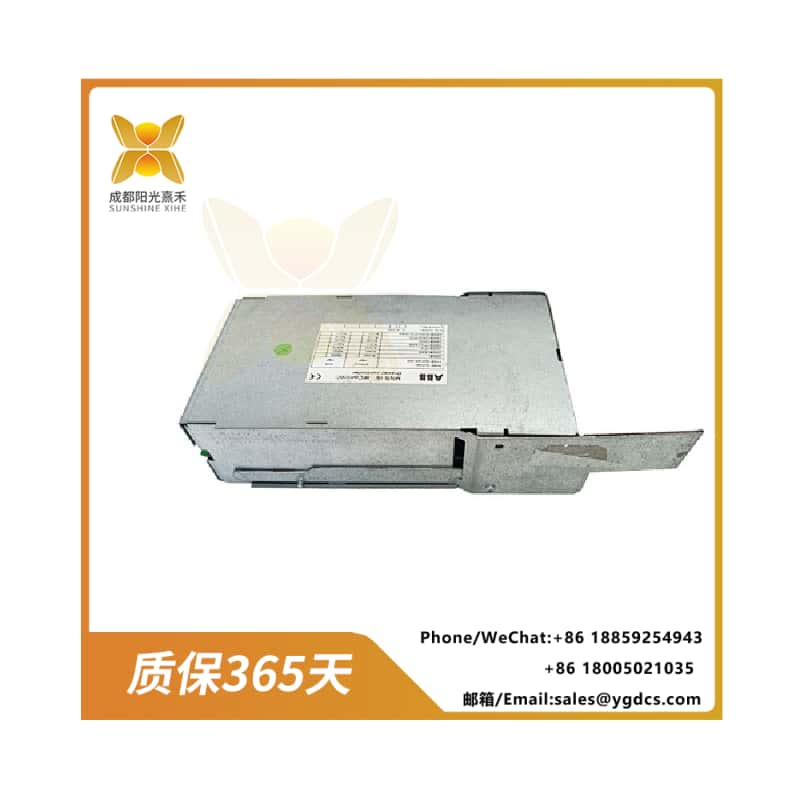

ABB 1TGE120010R1300 工業自動化控制模塊
1. Product type
1. 產品類型
The ABB 1TGE120010R1300 has been repeatedly described as an industrial automation control module or electronic module for industrial automation and control systems.
ABB 1TGE120010R1300 被多次描述為一種 工業自動化控制模塊 或 電子模塊，用于工業自動化和控制系統。
It is usually part of a larger system, providing specific functions such as input/output (I/O) processing, communication capabilities or power management.
它通常作為更大系統的一部分，提供輸入/輸出（I/O）處理、通信能力或電源管理等特定功能 。
In addition, it is also described as a programmable logic controller (PLC) module used for the control of industrial processes and machines.
此外，它也被描述為一種 可編程邏輯控制器（PLC）模塊，用于工業過程和機器的控制 。
2. Main functions
2. 主要功能
Control and Monitoring: This module is capable of controlling industrial processes and machines, and provides real-time monitoring functions to ensure that equipment operates in a safe environment.
控制與監控：該模塊能夠控制工業過程和機器，并提供實時監控功能，確保設備在安全的環境下運行 。
Communication capability: Supports multiple communication protocols, such as Modbus, Profibus, Ethernet /IP, etc., facilitating seamless integration with other industrial automation equipment and systems.
通信能力：支持多種通信協議，如 Modbus、Profibus、以太網/IP 等，便于與其他工業自動化設備和系統無縫集成 。
Programmability: User-defined control functions can be achieved through programming, making it suitable for various complex industrial application scenarios.
可編程性：可以通過編程實現用戶自定義的控制功能，適用于各種復雜的工業應用場景 。
Protection functions: It is equipped with overcurrent, overvoltage and undervoltage protection functions to ensure the safe operation of the motor and equipment.
保護功能：具備過電流、過電壓和欠電壓保護功能，確保電機和設備的安全運行 。
Remote Diagnosis and Maintenance: Supports remote diagnosis and maintenance to enhance the reliability and availability of the system.
遠程診斷與維護：支持遠程診斷和維護，提高系統的可靠性和可用性 。
3. Technical parameters
3. 技術參數
General parameters
通用參數
Working voltage: 220V AC ±10%.
工作電壓：220V AC ±10% 。
Frequency range: 50/60Hz ±5%.
頻率范圍：50/60Hz ±5% 。
Dimensions: 120 × 80 × 45mm (compact DIN rail mounting).
尺寸：120 × 80 × 45 mm（緊湊型 DIN 導軌安裝）。
Protection grade: IP65, suitable for harsh environments (-25°C to +70°C).
防護等級：IP65，適用于惡劣環境（-25°C 至 +70°C）。
Communication and Interface
通信與接口
Communication protocol: Supports common protocols such as Modbus, Profibus, Ethernet/IP, etc.
通信協議：支持 Modbus、Profibus、Ethernet/IP 等常見協議 。
Communication interface: Supports multiple communication interfaces, including Ethernet, serial communication, etc.
通信接口：支持多種通信接口，包括以太網、串行通信等 。
Electrical parameters
電氣參數
Rated current: Depending on different descriptions, the rated current range is from 63A to 100A.
額定電流：根據不同的描述，額定電流范圍為 63A 至 100A 。
Short-circuit capacity: 1300A (indicated by “1300” in the model number).
短路容量：1300A（由型號中的“1300”表示）。
Voltage level: Applicable to 230V AC (1 phase) or 400V AC (3 phases).
電壓等級：適用于 230V AC（1 相）或 400V AC（3 相）。
Application scope
應用范圍
Industrial automation: It is applicable to automatic production line control systems, energy management in power distribution, process monitoring in chemical plants, etc.
工業自動化：適用于自動生產線控制系統、電力分配中的能源管理、化工廠中的過程監控等 。
Motor control: Applicable to three-phase asynchronous motors, DC motors, etc., it is widely used in power, chemical, mining, metallurgy and other fields.
電機控制：適用于三相異步電機、直流電機等，廣泛應用于電力、化工、礦山、冶金等領域 。
Low-voltage circuit breaker: As a component of a low-voltage circuit breaker, it is used to protect electrical systems from overloads and short circuits.
低壓斷路器：作為低壓斷路器的一部分，用于保護電氣系統免受過載和短路的影響 。
4. Application scenarios
4. 應用場景
Manufacturing industry: For the control and monitoring of automated production lines.
制造業：用于自動化生產線的控制和監控。
Energy industry: used for power distribution and energy management.
能源行業：用于電力分配和能源管理。
Transportation: For the automatic control of transportation systems.
交通運輸：用于交通系統的自動化控制。
Buildings and Infrastructure: Power distribution and protection for building electrical systems.
建筑與基礎設施：用于建筑電氣系統的配電和保護 。
5. Summary
5. 總結
The ABB 1TGE120010R1300 is a high-performance and multi-functional industrial automation control module, suitable for a variety of industrial application scenarios.
ABB 1TGE120010R1300 是一款高性能、多功能的工業自動化控制模塊，適用于多種工業應用場景。
It has powerful control capabilities, communication capabilities and protection functions, and can meet the demands of complex industrial environments.
它具備強大的控制能力、通信能力和保護功能，能夠滿足復雜工業環境的需求。
Whether used in motor control, low-voltage circuit breakers or industrial automation systems, the ABB 1TGE120010R1300 is a reliable product.
無論是用于電機控制、低壓斷路器還是工業自動化系統，ABB 1TGE120010R1300 都是一款值得信賴的產品。
