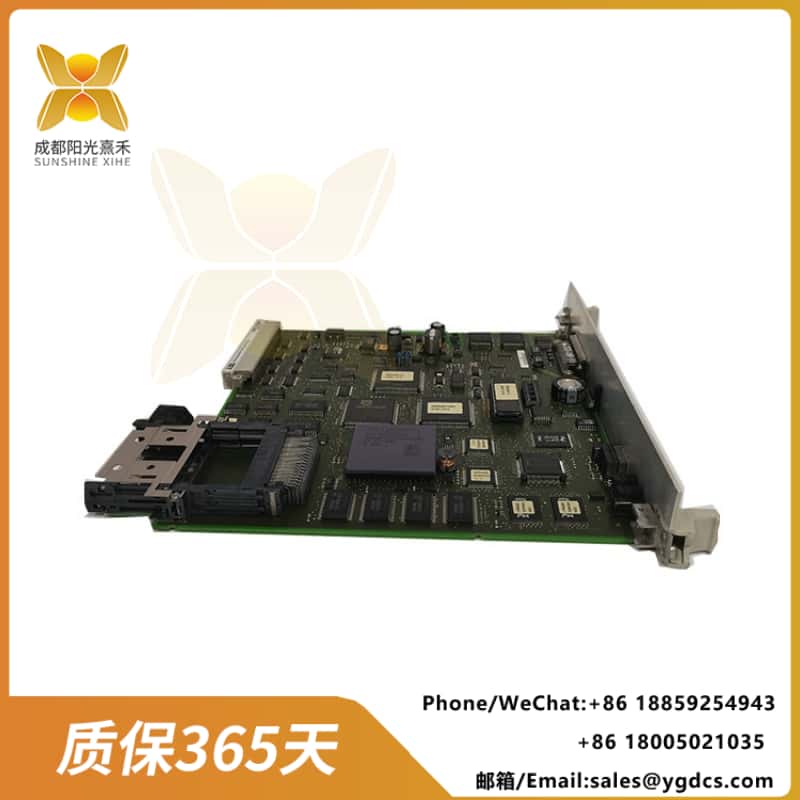

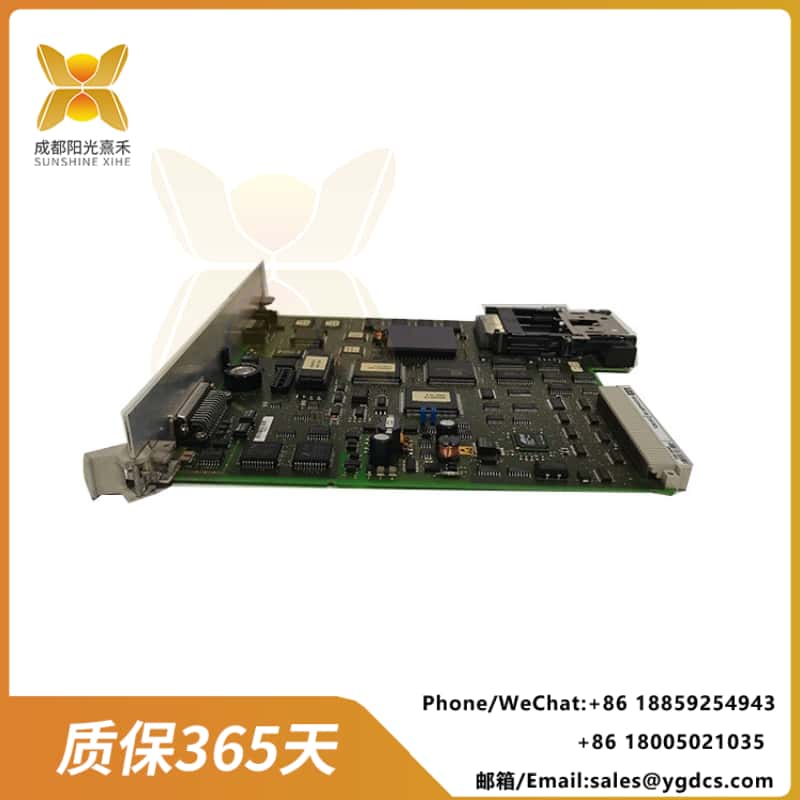

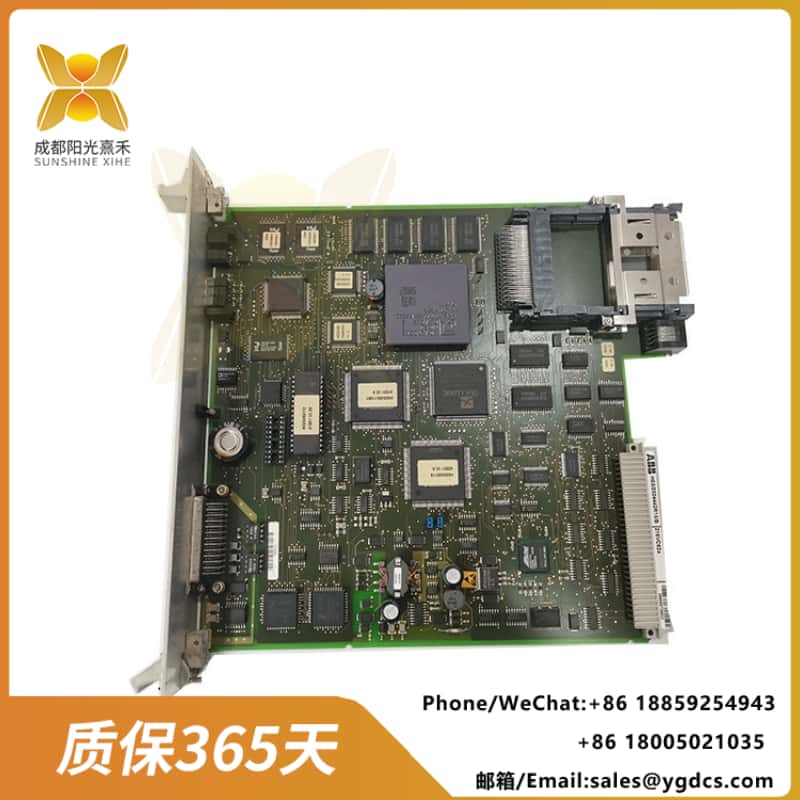

ABB 216VC62a P1000 | HESG324442R112 | 數字信號處理模塊
The ABB 216VC62A/P1000 HESG324442R112 is an industrial automation control module produced by ABB. Specifically, it is a digital signal processing (DSP) module, widely used in industrial automation, control systems and variable frequency drives.
ABB 216VC62A/P1000 HESG324442R112 是一款由 ABB 公司生產的工業自動化控制模塊，具體來說，它是一款 數字信號處理（DSP）模塊，廣泛應用于工業自動化、控制系統和變頻驅動器中。
This module features high performance, high reliability and a long service life, and is suitable for a variety of industrial scenarios.
該模塊具有高性能、高可靠性、長使用壽命等特點，適用于多種工業場景。
Product Overview
產品概述
The ABB 216VC62A/P1000 HESG324442R112 is part of the ABB DSAI 130A controller series, specifically designed for industrial automation and control systems.
ABB 216VC62A/P1000 HESG324442R112 是 ABB DSAI 130A 控制器系列的一部分，專為工業自動化和控制系統設計。
It adds the function of the P1000 interface on the basis of the 216VC62a module, supporting high-speed data transmission and complex control algorithms.
它在 216VC62a 模塊的基礎上增加了 P1000 接口的功能，支持高速數據傳輸和復雜的控制算法。
Technical parameters
技術參數
Processor: It adopts a high-performance DSP chip with a processing speed of up to 1.2GHz, capable of handling complex data and algorithms in real time.
處理器：采用高性能 DSP 芯片，處理速度可達 1.2 GHz，能夠?qū)崟r處理復雜的數據和算法。
Memory configuration: It may be equipped with 1MB flash memory and EPROM slots, supporting different storage configurations to meet various application requirements.
存儲器配置：可能配備 1MB 閃存和 EPROM 插槽，支持不同的存儲配置，以滿足不同應用需求。
Input and output capabilities: Supports processing of analog signals, digital signals and mixed signals, and is capable of performing operations such as filtering, sampling, modulation/demodulation, and frequency analysis.
輸入輸出能力：支持模擬信號、數字信號和混合信號的處理，能夠執行濾波、采樣、調制/解調、頻率分析等操作。
Communication interface: Supports multiple communication protocols such as RS485, Modbus RTU, and Profibus DP, and has flexible data acquisition and control capabilities.
通信接口：支持 RS485、Modbus RTU、Profibus DP 等多種通信協議，具備靈活的數據采集和控制能力。
Operating temperature: -20°C to 70°C, suitable for a wide range of industrial environments.
工作溫度：-20°C 至 70°C，適用于廣泛的工業環境。
Protection grade: IP20, suitable for standard industrial environments.
防護等級：IP20，適用于標準工業環境。
Dimensions: 100mm x 600mm x 400mm .
尺寸：100 mm x 600 mm x 400 mm。
Weight: 400 g.
重量：400 g。
Functional features
功能特點
High-speed processing capability: This module can quickly handle various complex signals and control algorithms, ensuring the efficient operation of the system.
高速處理能力：該模塊能夠快速處理各種復雜的信號和控制算法，確保系統的高效運行。
Multi-functional signal processing capability: Supports multiple signal types, including analog signals, digital signals and mixed signals, and is capable of performing operations such as filtering, sampling, modulation/demodulation, and frequency analysis.
多功能信號處理能力：支持多種信號類型，包括模擬信號、數字信號和混合信號，能夠執行濾波、采樣、調制/解調、頻率分析等操作。
Strong scalability: This module can work in coordination with other modules to achieve powerful control and data analysis capabilities.
可擴展性強：該模塊可以與其他模塊協同工作，實現強大的控制和數據分析能力。
High reliability: Manufactured with high-quality components and strict production processes, it features high reliability and long-term stable operation capability.
高可靠性：采用高質量組件和嚴格生產流程制造，具有高可靠性和長期穩定運行能力。
High-speed data transmission: The P1000 interface offers a data transmission rate of up to 100 Mbps, meeting the requirements of high-speed data transmission.
高速數據傳輸：P1000 接口提供高達 100 Mbps 的數據傳輸速率，滿足高速數據傳輸需求。
Application scenarios
應用場景
Industrial automation: It is used to control AC motors, supports real-time control and complex control algorithms, and is suitable for various industrial automation scenarios.
工業自動化：用于控制交流電動機，支持實時控制和復雜控制算法，適用于各種工業自動化場景。
Motion control system: Real-time calculation of the motor’s position, speed and acceleration, precisely controlling the motor’s movement.
運動控制系統：實時計算電機的位置、速度和加速度，精確控制電機運動。
Robot control system: Processes robot sensor data, generates control instructions, and accomplishes complex tasks.
機器人控制系統：處理機器人傳感器數據，生成控制指令，實現復雜任務。
Image processing system: Filter, enhance and analyze images, extract image feature information, and achieve efficient image processing.
圖像處理系統：過濾、增強和分析圖像，提取圖像特征信息，實現高效圖像處理。
Power system protection and control: It is used for protection and control in power systems such as substations, transmission lines, and distribution lines.
電力系統保護和控制：用于變電站、輸電線路、配電線路等電力系統的保護和控制。
HVAC and pumping systems: Suitable for HVAC (Heating, Ventilation and Air Conditioning) and pumping systems, providing precise speed control and high-efficiency solutions.
HVAC 和泵送系統：適用于 HVAC（暖通空調）和泵送系統，提供精確的速度控制和高能效解決方案。
Summary
總結
The ABB 216VC62A/P1000 HESG324442R112 is a high-performance digital signal processing module, widely used in industrial automation, control systems and variable frequency drives.
ABB 216VC62A/P1000 HESG324442R112 是一款高性能的數字信號處理模塊，廣泛應用于工業自動化、控制系統和變頻驅動器中。
It features high-speed processing capabilities, multi-functional signal processing capabilities, strong scalability, high reliability and high-speed data transmission, and is suitable for various industrial scenarios.
它具備高速處理能力、多功能信號處理能力、可擴展性強、高可靠性和高速數據傳輸?shù)忍攸c，適用于多種工業場景。
