促銷中

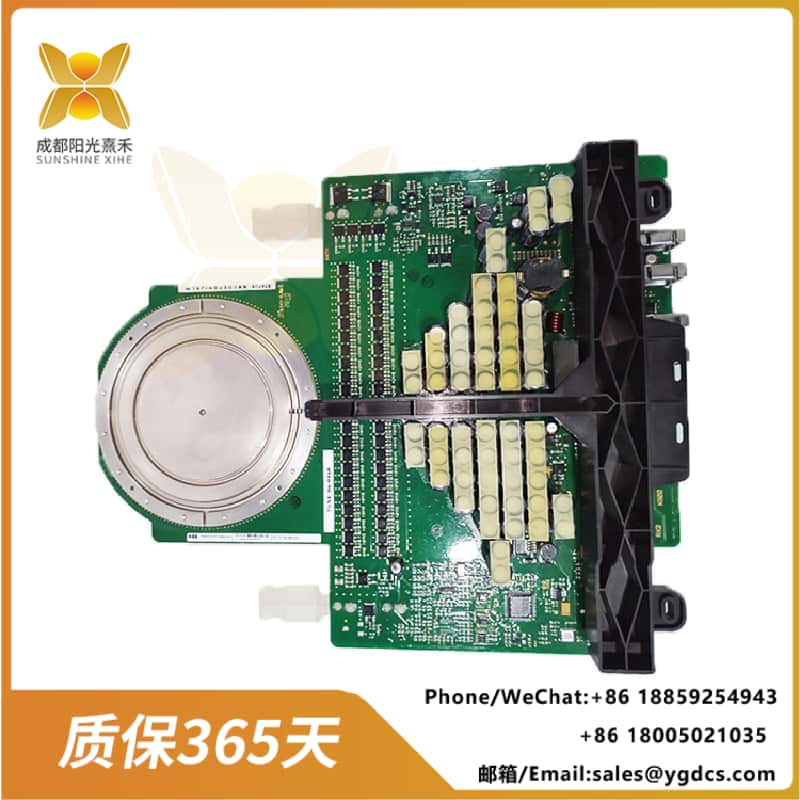

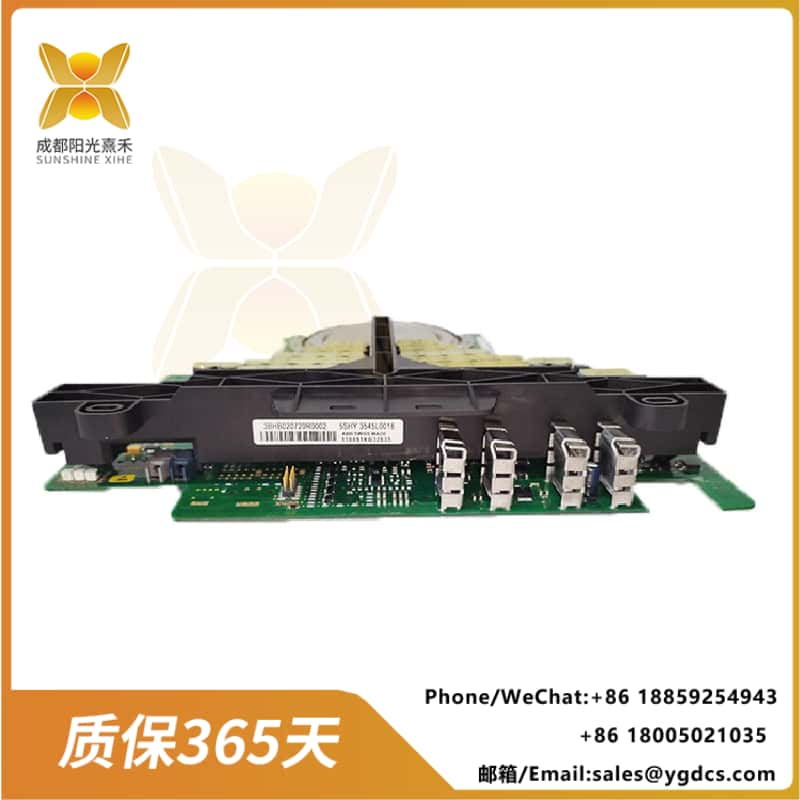

ABB 5SHY3545L0016 3BHB019719R0101|工業自動化模塊 | GVC736BE101 5SXE06-0160

原價為:¥150,000。當前價格為:¥98,000。

品牌:ABB
產品型號:5SHY3545L0016
質保:1年
狀態:全新/二手
尺寸: 170mm x 105mm x 32mm
重量:800g
原產地:瑞典
庫存: 現貨/期貨
交貨時間:付款后3天內發貨/付款后1個月內發貨
郵箱:www.nchzsy.cn
購買咨詢熱線 /Whatsapp:18859254943

分類:

描述

ABB 5SHY3545L0016 3BHB019719R0101|工業自動化模塊 | GVC736BE101 5SXE06-0160

I. Product Overview
一、產品概述

5SHY3545L0016 is a high-performance module that is widely used in multiple fields such as industrial automation, power control, servo drive, and power system protection.
5SHY3545L0016是一款高性能模塊,廣泛應用于工業自動化、電力控制、伺服驅動、電力系統保護等多個領域。

It features high reliability, high stability, and fast response time, and is suitable for various complex and harsh industrial environments.
它具備高可靠性、高穩定性、快速響應時間等優點,適用于各種復雜和惡劣的工業環境。

Ii. Product Functions
二、產品功能

Control and regulation functions
控制與調節功能

The 5SHY3545L0016 can provide adjustable current and voltage control functions to meet the requirements of different loads.
5SHY3545L0016可以提供可調節的電流和電壓控制功能,以滿足不同負載的需求。

It supports multiple control methods, such as vector control or PWM control (depending on the specific application).
它支持多種控制方式,如矢量控制或PWM控制(取決于具體應用)。

Communication interface
通信接口

This module supports multiple communication interfaces, including Ethernet, serial communication, etc., facilitating data exchange with the upper computer or other control systems.
該模塊支持多種通信接口,包括以太網、串行通信等,便于與上位機或其他控制系統進行數據交換。

Protective function
保護功能

The 5SHY3545L0016 is equipped with built-in overload and short-circuit protection functions, which can protect load equipment from damage in abnormal situations.
5SHY3545L0016內置過載和短路保護功能,能夠在異常情況下保護負載設備免受損壞。

High-speed processing capacity
高速處理能力

This module features high-speed processing capabilities, capable of handling large amounts of data and responding quickly, making it suitable for systems that require dynamic control.
該模塊具有高速處理能力,能夠處理大量數據并快速響應,適用于需要?jiǎng)討B(tài)控制的系統。

Alarm function
報警功能

Some models support a light alarm function to indicate the system status or fault conditions.
部分型號支持燈光報警功能,用于指示系統狀態或故障情況。

Iii. Technical Parameters
三、技術參數

Parameter description
參數 描述

Model 5SHY3545L0016
型號 5SHY3545L0016

Brand ABB
品牌 ABB

Input voltage: 24 V DC ± 20%
輸入電壓 24 V DC ± 20%

The maximum input current is 5 mA
輸入電流 最大為5 mA

Output voltage: 5VDC
輸出電壓 5VDC

The maximum output current is 10A
輸出電流 最大10A

Rated current: 16A
額定電流 16A

Operating temperature: -10℃ to 50℃
工作溫度 -10℃~50℃

Storage temperature: -20℃ to 85℃
存儲溫度 -20℃~85℃

Dimensions: 170mm x 105mm x 32mm
尺寸 170mm x 105mm x 32mm

It weighs approximately 800g
重量 約800g

Protection grade IP20
防護等級 IP20

Efficiency >90%
效率 >90%

Iv. Application Scenarios
四、應用場景

5SHY3545L0016 is widely applied in the following fields:
5SHY3545L0016廣泛應用于以下領域:

Industrial automation: Used for controlling and regulating industrial processes and machines.
工業自動化:用于控制和調節工業過程和機器。

Power system: Used for motor drive, power system regulation, DC circuit breakers, etc.
電力系統:用于電機驅動、電力系統調節、直流斷路器等。

Servo drive: As an inverter or power supply, it is used in servo drive systems.
伺服驅動:作為逆變器或電源,用于伺服驅動系統。

Electric protection: used for circuit protection, overload protection, short-circuit protection, etc.
電力保護:用于電路保護、過載保護、短路保護等。

Renewable energy: Used for power conversion in renewable energy generation systems such as solar and wind power.
可再生能源:用于太陽能、風能等可再生能源發電系統的電力轉換。

V. Summary
五、總結

5SHY3545L0016 is a high-performance and highly reliable industrial automation module, suitable for a variety of industrial application scenarios.
5SHY3545L0016是一款高性能、高可靠性的工業自動化模塊,適用于多種工業應用場景。

Its main functions include current and voltage control, communication interfaces, protection functions, etc. Technical parameters vary depending on the specific model and application scenario.
其主要功能包括電流和電壓控制、通信接口、保護功能等,技術參數因具體型號和應用場景而異。

In practical applications, appropriate configurations and parameters should be selected based on specific needs, and correct installation and maintenance should be ensured to guarantee the stable operation of the system.
在實際應用中,應根據具體需求選擇合適的配置和參數,并確保正確安裝和維護以保證系統的穩定運行。
