描述

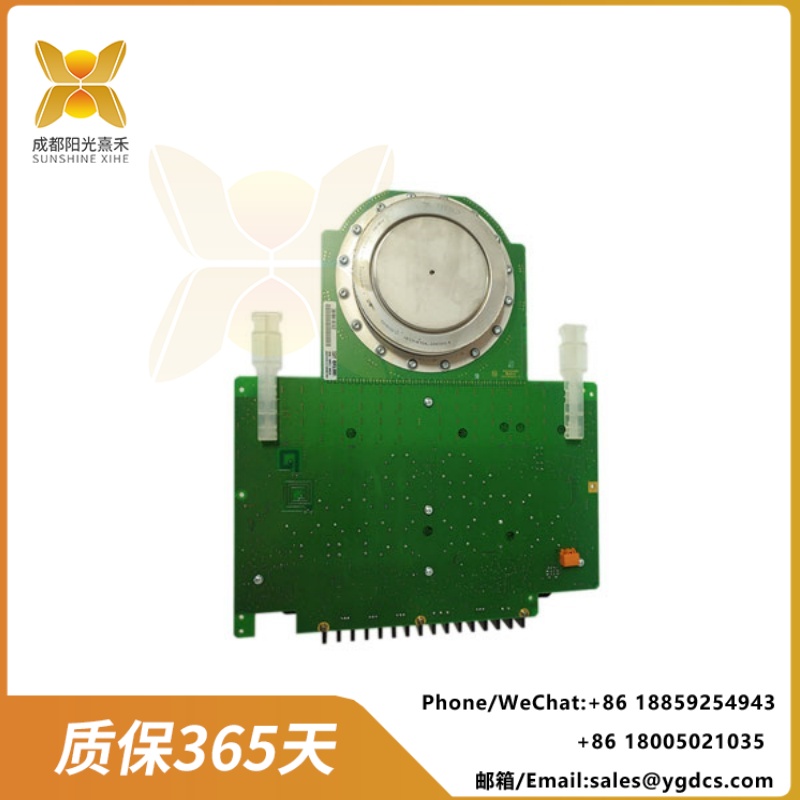

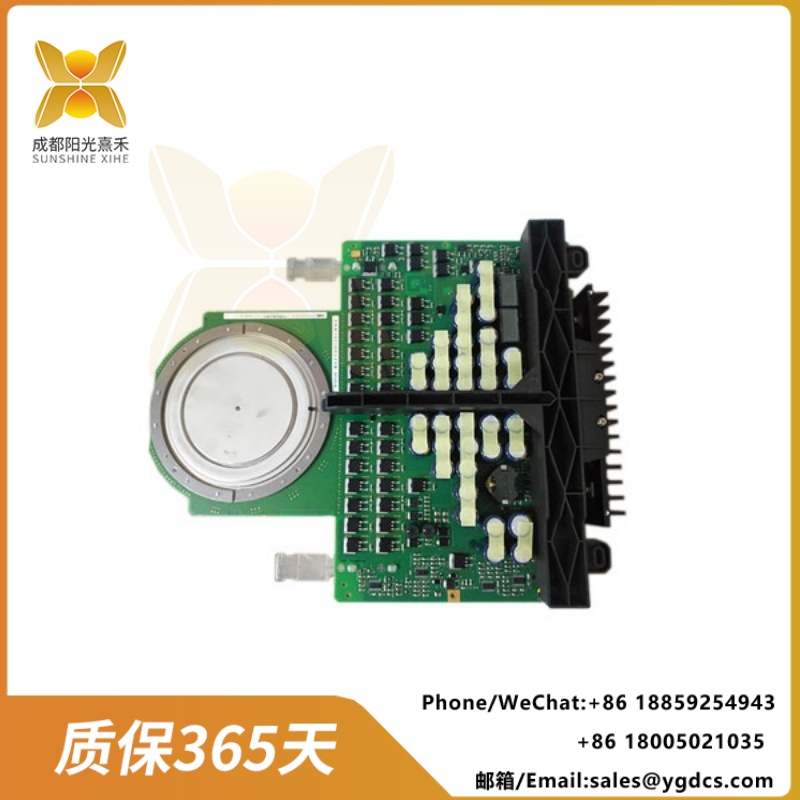

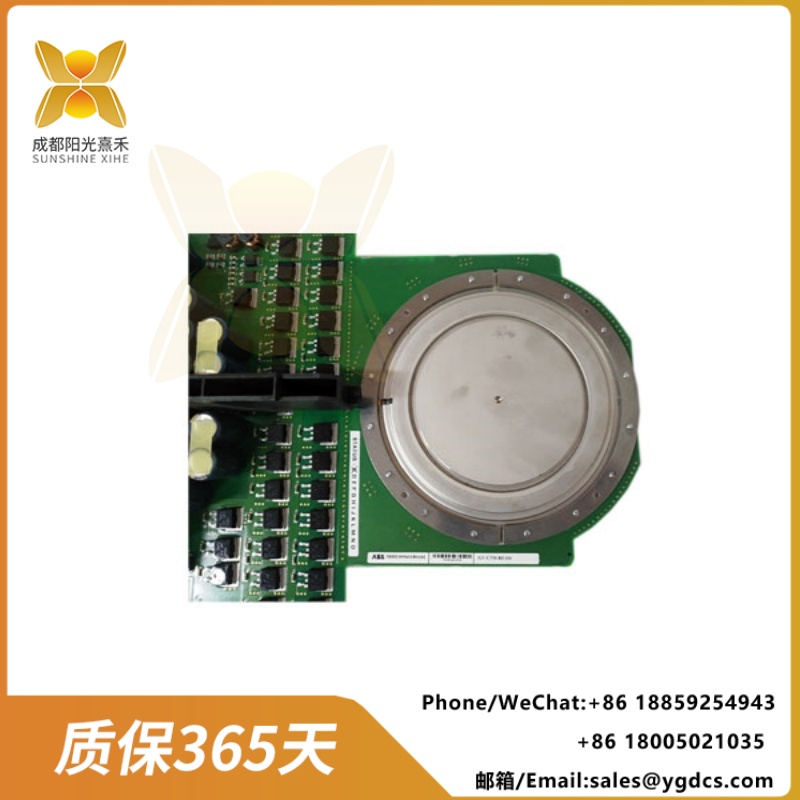

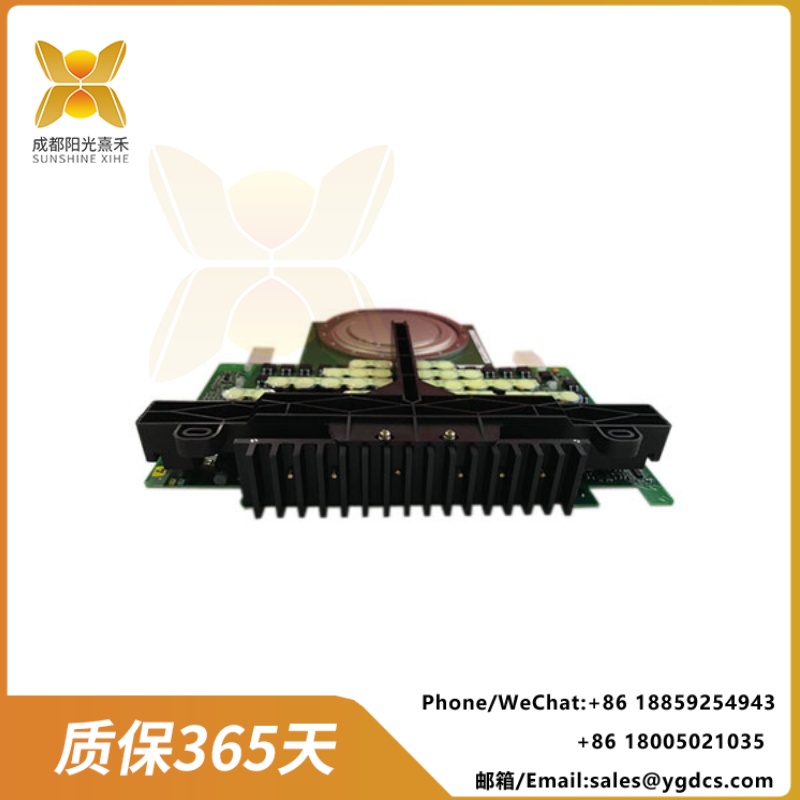

ABB 5SHY4045L0001 3BHB018162 3BHE009681R0101 GVC750BE101 IGCT模塊

ABB 5SHY4045L0001 3BHB018162R0001 is a high-performance module produced by ABB. Specifically, it is an IGCT (Integrated Gate Converter Thyristor) module and belongs to ABB’s 5SHY series products.
ABB 5SHY4045L0001 3BHB018162R0001 是 ABB 公司生產的一款高性能模塊，具體來說，它是一種 IGCT（集成門極換流晶閘管）模塊，屬于 ABB 的 5SHY 系列產品。

This module is widely applied in high-power switch application fields such as high-voltage direct current transmission (HVDC), traction drive, and large industrial motor drive.
該模塊廣泛應用于高壓直流輸電（HVDC）、牽引驅動、大型工業電機驅動等高功率開關應用領域。

Product function
產品功能

The main function of the ABB 5SHY4045L0001 3BHB018162R0001 module is to serve as a high-voltage power electronic device, used to achieve high-power and high-voltage switching control.
ABB 5SHY4045L0001 3BHB018162R0001 模塊的主要功能是作為高壓電力電子器件，用于實現高功率、高電壓的開關控制。

It combines the advantages of IGBT and GTO, featuring fast switching speed, large current capacity and high withstand voltage capability, making it suitable for industrial scenarios that require precise control and high performance.
它結合了 IGBT 和 GTO 的優點，具有快速開關速度、大電流容量和高耐壓能力，適用于需要精確控制和高效能的工業場景。

Technical parameters
技術參數

Model: 5SHY4045L0001 3BHB018162R0001
型號：5SHY4045L0001 3BHB018162R0001

Brand: ABB
品牌：ABB

Type: IGCT module
類型：IGCT 模塊

Rated current: 4000 A
額定電流：4000 A

Rated voltage: 45 kV
額定電壓：45 kV

Frequency: 50/60 Hz
頻率：50/60 Hz

Cooling method: Natural cooling
冷卻方式：自然冷卻

Protection grade: IP20
防護等級：IP20

Overall dimensions: 16cm × 16cm × 12cm
外形尺寸：16cm × 16cm × 12cm

Weight: Approximately 0.8 kg
重量：約 0.8 kg

Operating temperature range: Wide temperature range, suitable for various industrial environments
工作溫度范圍：寬溫度范圍，適用于多種工業環境

Product features
產品特點

High switching speed: It has a faster switching speed than traditional Gtos, enhancing the dynamic response capability of the system.
高開關速度：比傳統的 GTO 具有更快的開關速度，提高了系統的動態響應能力。

High current capacity: Capable of carrying large currents, it is suitable for high-power applications.
大電流容量：能夠承載大電流，適用于高功率應用。

High pressure resistance: It has a very high pressure resistance capacity and is suitable for high-pressure applications.
高耐壓：具有很高的耐壓能力，適用于高壓應用。

Low on-state voltage drop: Reduced on-state voltage, low power consumption and high efficiency.
低導通壓降：導通壓降低，功耗小，效率高。

High reliability: Utilizing advanced packaging technology, it features high reliability.
高可靠性：采用先進的封裝技術，具有高可靠性。

Wide temperature range: It can operate stably within a wide temperature range.
寬溫度范圍：能夠在寬溫度范圍內穩定工作。

Application field
應用領域

The ABB 5SHY4045L0001 3BHB018162R0001 module is widely used in the following fields:
ABB 5SHY4045L0001 3BHB018162R0001 模塊廣泛應用于以下領域：

Power transmission and distribution: used in high-voltage direct current transmission systems, substations, etc.
電力傳輸和分配：用于高壓直流輸電系統、變電站等。

Renewable energy power generation: such as wind power generation, solar power generation, etc.
可再生能源發電：如風力發電、太陽能發電等。

Electric drive system: used for large industrial motor drive, traction drive, etc.
電力傳動系統：用于大型工業電機驅動、牽引驅動等。

Industrial control: Used for high-power switch applications, such as industrial automation equipment, robotics technology, etc.
工業控制：用于高功率開關應用，如工業自動化設備、機器人技術等。

Summary
總結

ABB 5SHY4045L0001 3BHB018162R0001 is a high-performance IGCT module featuring high current, high voltage, fast switching speed and high reliability, and is suitable for a variety of high-power switching applications.
ABB 5SHY4045L0001 3BHB018162R0001 是一款高性能的 IGCT 模塊，具有高電流、高電壓、快速開關速度和高可靠性等特點，適用于多種高功率開關應用。

It has broad application prospects in fields such as power electronics, industrial automation and renewable energy.
它在電力電子、工業自動化和可再生能源等領域具有廣泛的應用前景。
