描述

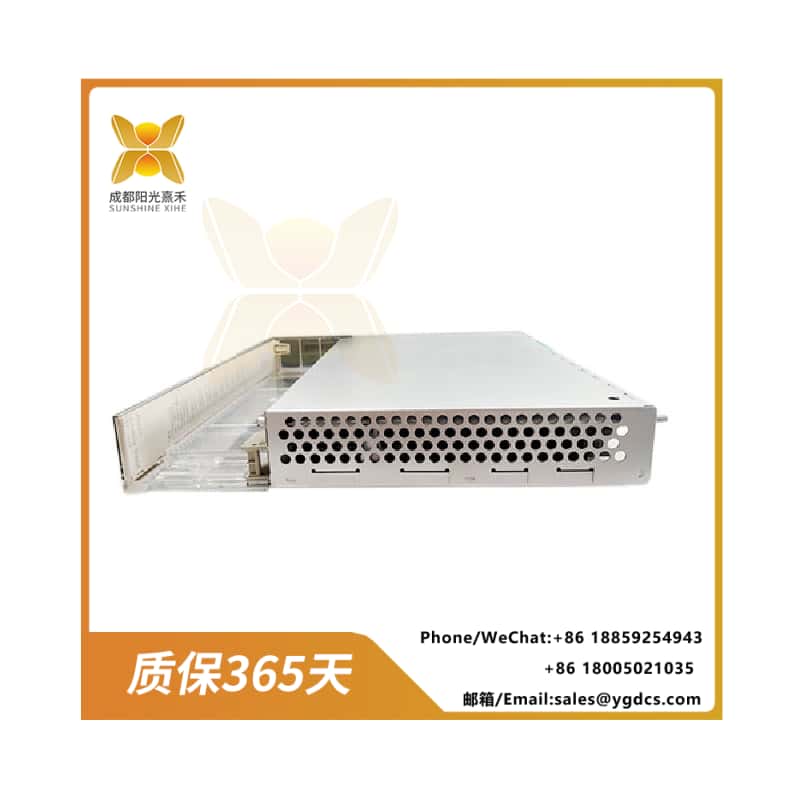

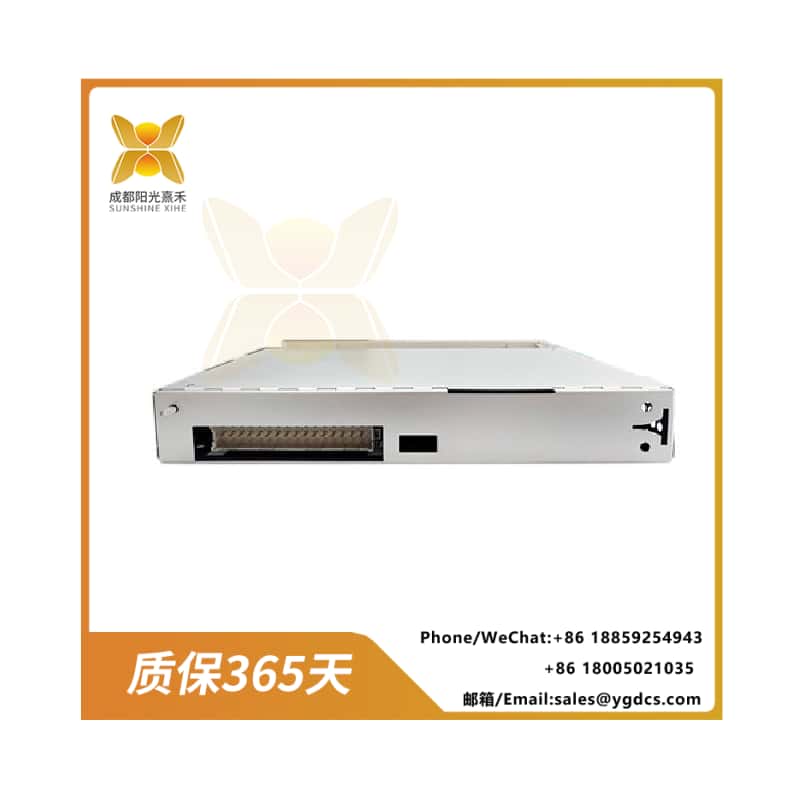

ABB AI625 模擬輸入模塊

ABB AI625 is an industrial automation product launched by ABB. Specifically, it is an analog input module used to convert analog signals from industrial sites (such as temperature, pressure, flow rate, etc.) into digital signals for processing and control by PLC (Programmable Logic Controller) or DCS (Distributed Control System).
ABB AI625是一款由ABB公司推出的工業自動化產品，具體來說，它是一款模擬輸入模塊，用于將工業現場的模擬信號（如溫度、壓力、流量等）轉換為數字信號，以便PLC（可編程邏輯控制器）或DCS（分布式控制系統）進行處理和控制。

This module is widely applied in multiple industrial environments such as manufacturing, chemical engineering, power systems, and building automation.
該模塊廣泛應用于制造業、化工、電力系統、樓宇自動化等多個工業環境。

Product functions and technical parameters
產品功能與技術參數

1. Product functions
1. 產品功能

The main function of ABB AI625 is to collect and process analog signals and convert them into digital signals, so that the control system can perform logical control, data processing and system integration.
ABB AI625的主要功能是采集和處理模擬信號，將其轉換為數字信號，以便控制系統進行邏輯控制、數據處理和系統集成。

It supports a variety of industrial automation applications, including:
它支持多種工業自動化應用，包括：

Process control: It is used to monitor and control various parameters in industrial processes, such as temperature, pressure, flow rate, etc.
過程控制：用于監控和控制工業過程中的各種參數，如溫度、壓力、流量等。

Signal conversion: Convert the analog signal from the sensor into a digital signal for easier processing by the PLC or other control systems.
信號轉換：將來自傳感器的模擬信號轉換為數字信號，便于PLC或其他控制系統處理。

Data acquisition: It is used to build a distributed control system to achieve remote data acquisition and monitoring.
數據采集：用于構建分布式控制系統，實現遠程數據采集和監控。

Alarm function: Supports advanced functions such as filtering and alarm to enhance the reliability and security of the system.
報警功能：支持濾波、報警等高級功能，提高系統的可靠性和安全性。

2. Technical parameters
2. 技術參數

Parameter description
參數 描述

The number of channels is 16
通道數 16通道

The input type supports 4-20mA current signal or ±10V voltage signal
輸入類型 支持4-20mA電流信號或±10V電壓信號

Resolution: 12 bits
分辨率 12位

Sampling rate up to 1000Hz (configurable)
采樣率 最高1000Hz（可配置）

Input impedance: 2.2 kΩ
輸入阻抗 2.2 kΩ

Update rate: 250 milliseconds
更新速率 250毫秒

Power supply voltage: 24V DC
電源電壓 24V DC

Power consumption: 5W
功耗 5W

Operating temperature range: -20°C to +60°C
工作溫度范圍 -20°C至+60°C

Protection grade IP20
防護等級 IP20

The communication interface supports RS485, Ethernet, USB, etc
通信接口 支持RS485、以太網、USB等

The isolated design ensures electrical isolation between the input channel and the system, enhancing the anti-interference capability
隔離設計 輸入通道與系統之間具有電氣隔離，提高抗干擾能力

Dimensions: 252mm × 273mm × 40mm
尺寸 252mm × 273mm × 40mm

Weight: 1.225 kilograms
重量 1.225公斤

Accuracy: 0.1%
精度 0.1%

3. Product Features
3. 產品特點

High precision: High-precision ADC chips are adopted to ensure the accuracy of measurement data.
高精度：采用高精度ADC芯片，確保測量數據的準確性。

Fast response: It features a fast update rate to ensure real-time data collection.
快速響應：具有快速更新速率，確保實時數據采集。

Durable and sturdy: With IP20 or IP67 protection ratings, it is suitable for various industrial environments.
堅固耐用：采用IP20或IP67防護等級，適用于各種工業環境。

Easy to install: Supports DIN rail mounting, facilitating integration into existing systems.
易于安裝：支持DIN導軌安裝方式，便于集成到現有系統中。

Multiple communication methods: Supports Modbus RTU, Modbus TCP and ABB’s own protocol, facilitating communication with other devices.
多種通信方式：支持Modbus RTU、Modbus TCP和ABB自有協議，便于與其他設備通信。

4. Application fields
4. 應用領域

ABB AI625 is widely used in the following fields:
ABB AI625廣泛應用于以下領域：

Manufacturing industry: Used for production line control, equipment status monitoring, etc.
制造業：用于生產線控制、設備狀態監控等。

Chemical and process industries: used for monitoring and controlling parameters such as temperature, pressure, and flow rate.
化工和過程工業：用于溫度、壓力、流量等參數的監控和控制。

Power system: Used for monitoring power equipment such as power plants and substations.
電力系統：用于發電廠、變電站等電力設備的監控。

Water treatment and sewage treatment: used for water quality monitoring, flow control, etc.
水處理和污水處理：用于水質監測、流量控制等。

Building automation: Used for the control of air conditioning, lighting and security systems.
樓宇自動化：用于空調、照明、安全系統的控制。

Traffic: Used for traffic signal control, vehicle monitoring, etc.
交通：用于交通信號控制、車輛監控等。

Summary
總結

ABB AI625 is a high-performance analog input module, specifically designed for industrial automation systems. It can convert analog signals into digital signals for processing by PLCS or DCS.
ABB AI625是一款高性能的模擬輸入模塊，專為工業自動化系統設計，能夠?qū)⒛M信號轉換為數字信號，供PLC或DCS處理。

Its features of high precision, fast response, durability and easy installation make it an ideal choice in the field of industrial automation.
其高精度、快速響應、堅固耐用和易于安裝的特點使其成為工業自動化領域的理想選擇。

This module is applicable to various industrial environments, including manufacturing, chemical engineering, power systems, building automation, etc.
該模塊適用于多種工業環境，包括制造業、化工、電力系統、樓宇自動化等。
