描述

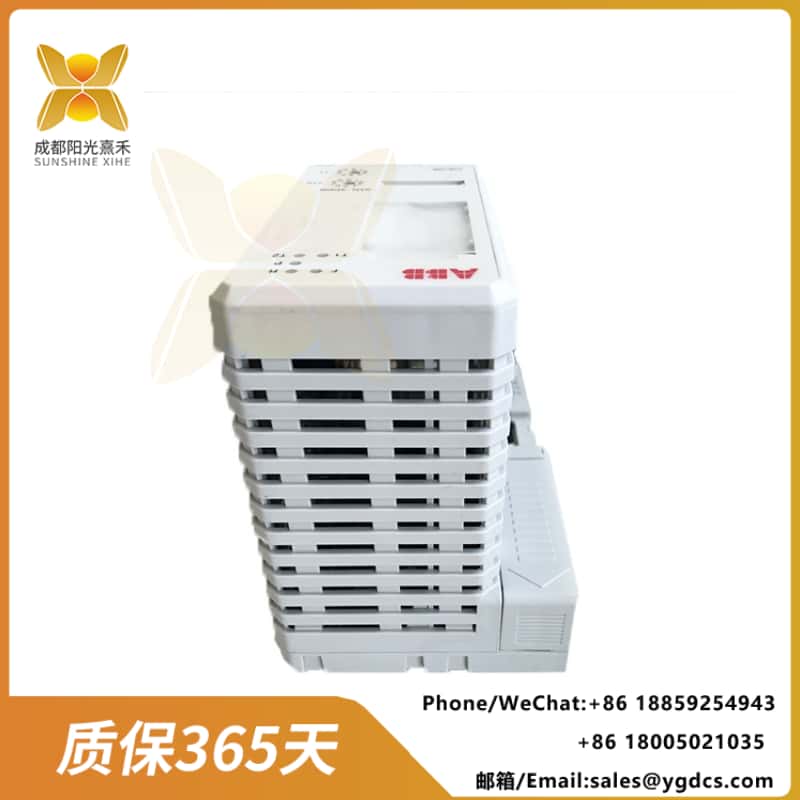

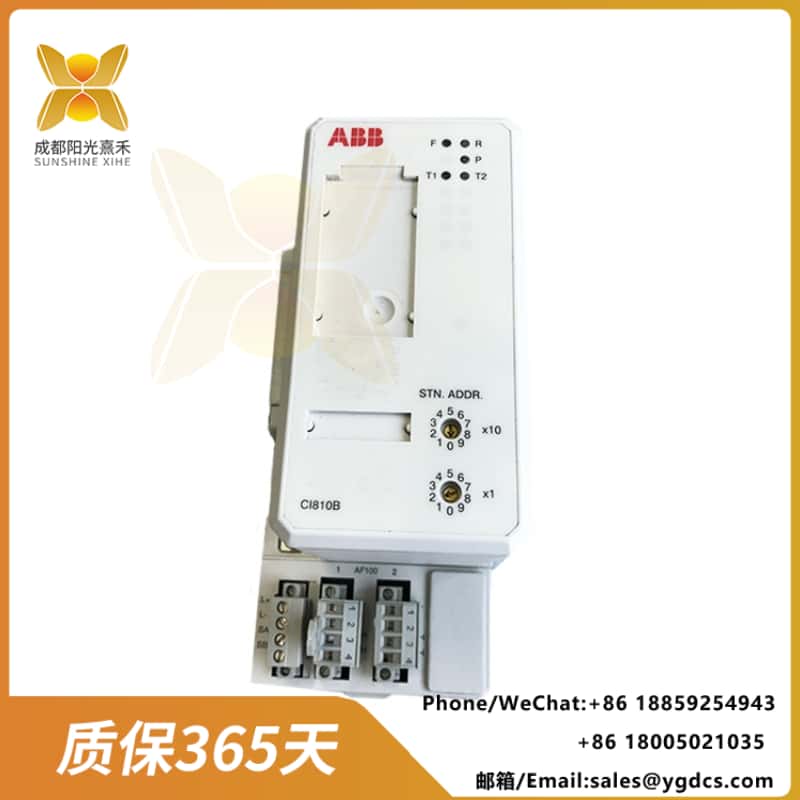

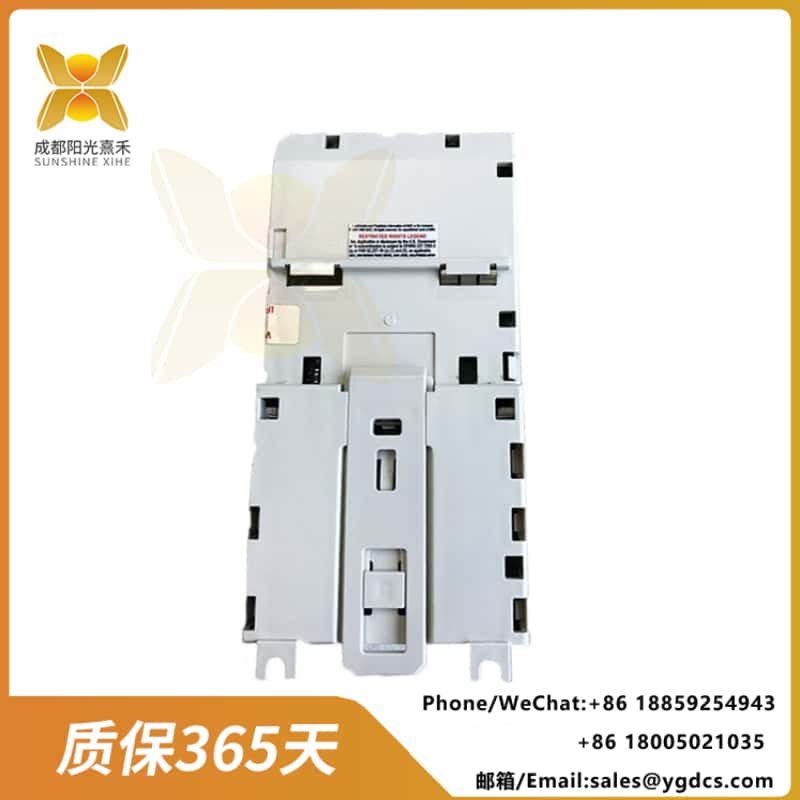

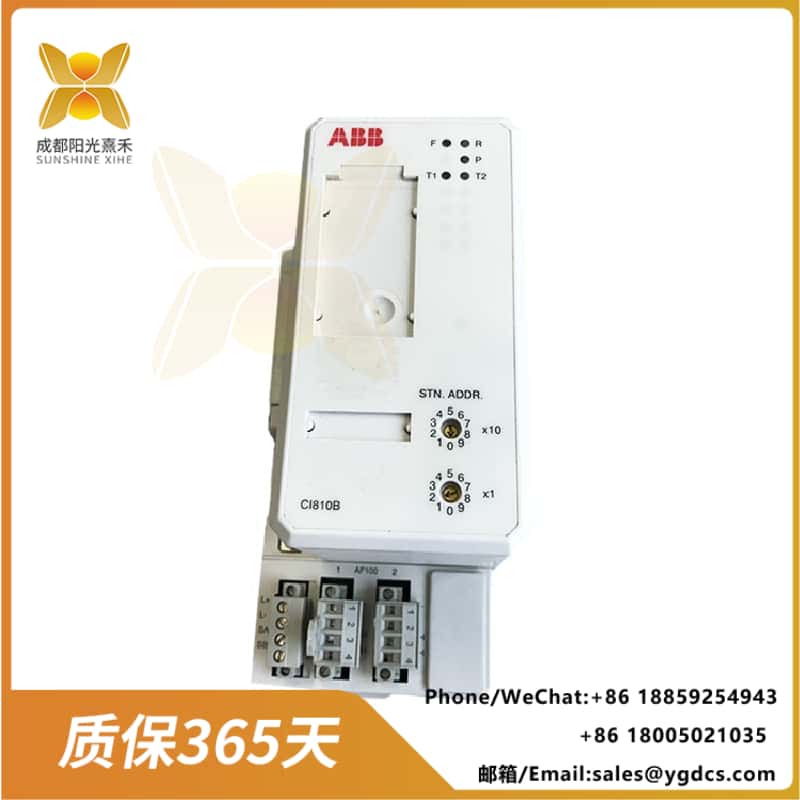

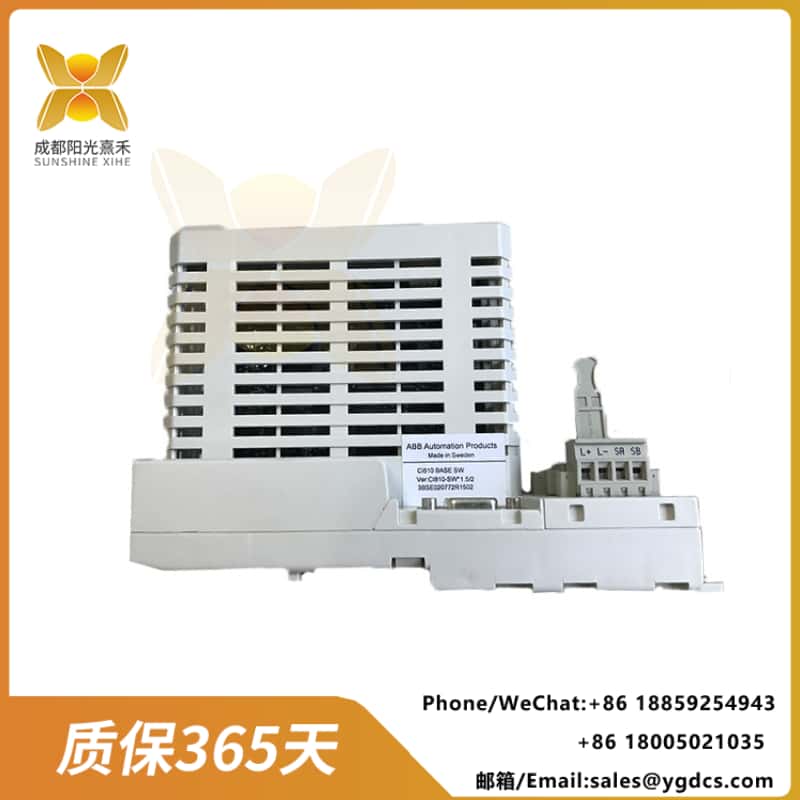

ABB CI810B | 現場總線通信接口模塊

ABB CI810B is a communication interface module specifically designed for industrial automation, widely used in industrial control systems to achieve data exchange and control signal transmission between devices.
ABB CI810B 是一款專為工業自動化設計的通信接口模塊，廣泛應用于工業控制系統中，用于實現設備之間的數據交換和控制信號傳輸。

This module supports multiple communication protocols and features high reliability, high performance and easy installation.
該模塊支持多種通信協議，具有高可靠性、高性能和易于安裝的特點。

Product Description
產品描述

ABB CI810B is a fieldbus communication interface module launched by ABB, specifically designed for connecting ABB control systems with fieldbus networks.
ABB CI810B 是 ABB 公司推出的一款現場總線通信接口模塊，專為將 ABB 控制系統與現場總線網絡連接而設計。

It supports multiple Fieldbus protocols, such as Profibus DP, FOUNDATION Fieldbus and Modbus, etc., and is suitable for industrial automation and control fields.
它支持多種現場總線協議，如 Profibus DP、FOUNDATION Fieldbus 和 Modbus 等，適用于工業自動化和控制領域。

This module features a modular design, which is convenient for installation and maintenance, and supports multiple communication rates and protocols to meet different application requirements.
該模塊具有模塊化設計，便于安裝和維護，并且支持多種通信速率和協議，以適應不同的應用需求。

Technical parameters
技術參數

The following are the main technical parameters of ABB CI810B:
以下是 ABB CI810B 的主要技術參數：

Input voltage: 24VDC
輸入電壓：24VDC

Input current: 120mA to 150mA
輸入電流：120mA 至 150mA

Operating temperature: -25℃ to +70℃
工作溫度：-25℃ 至 +70℃

Communication interface
通信接口：

PROFIBUS DP-V1
PROFIBUS DP-V1

Modbus RTU
Modbus RTU

Ethernet/IP
Ethernet/IP

DeviceNet
DeviceNet

RS-485
RS-485

RS-232
RS-232

Communication rate: Up to 12 Mbps
通信速率：最高可達 12 Mbps

Size: Depending on different materials, the size range varies from 35 x 125 x 138 mm to 115 x 65 x 30 mm
尺寸：根據不同資料，尺寸范圍在 35 x 125 x 138 mm 至 115 x 65 x 30 mm 不等

Weight: Approximately 0.3kg to 0.5kg
重量：約 0.3 kg 至 0.5 kg

Protection grade: IP20 or IP65
防護等級：IP20 或 IP65

Number of ports: 1 Ethernet port, 1 RS-485 port, 1 RS-232 port
端口數量：1 個以太網口、1 個 RS-485 口、1 個 RS-232 口

Power consumption: 5W
功耗：5 W

Storage temperature: -40°C to +85°C
存儲溫度：-40°C 至 +85°C

Product specification
產品規格

Communication protocol: Supports multiple Fieldbus protocols, such as Profibus DP, FOUNDATION Fieldbus, Modbus RTU, Ethernet/IP, DeviceNet, etc.
通信協議：支持多種現場總線協議，如 Profibus DP、FOUNDATION Fieldbus、Modbus RTU、Ethernet/IP、DeviceNet 等。

Maximum number of nodes: Some models support up to 32 nodes.
最大節點數：部分型號支持最多 32 個節點。

Transmission distance: Some models support a transmission distance of 200 meters.
傳輸距離：部分型號支持 200 米的傳輸距離。

Electrical isolation: It provides electrical isolation functionality to prevent interference and fault transmission, enhancing system stability and safety.
電氣隔離：提供電氣隔離功能，防止干擾和故障傳播，增強系統穩定性和安全性。

Diagnostic function: Supports diagnostic and troubleshooting functions, facilitating timely detection and resolution of potential issues.
診斷功能：支持診斷和故障排除功能，便于及時檢測和解決潛在問題。

Installation method: It adopts DIN rail installation method, which is convenient for installation and maintenance.
安裝方式：采用 DIN 導軌安裝方式，便于安裝和維護。

Application field
應用領域

ABB CI810B is widely used in the following fields:
ABB CI810B 廣泛應用于以下領域：

Industrial automation: used for factory automation, robot control, logistics automation, etc.
工業自動化：用于工廠自動化、機器人控制、物流自動化等。

Process control: Used in industries such as chemical engineering, food and beverage to achieve precise process control.
過程控制：用于化工、食品和飲料等行業，實現精確的過程控制。

Building automation: used in air conditioning systems, lighting systems, access control systems, etc.
樓宇自動化：用于空調系統、照明系統、門禁系統等。

Renewable energy: Used in solar and wind power plants to achieve efficient monitoring and control.
可再生能源：用于太陽能和風力發電廠，實現高效監控和控制。

Transportation system: Used for the control of transportation systems such as subways and railways.
交通系統：用于地鐵、鐵路等交通系統的控制。

Agriculture and irrigation: Used in agricultural automation and irrigation systems.
農業和灌溉：用于農業自動化和灌溉系統。

Summary
總結

ABB CI810B is a high-performance and highly reliable industrial automation communication interface module, suitable for a variety of industrial application scenarios.
ABB CI810B 是一款高性能、高可靠性的工業自動化通信接口模塊，適用于多種工業應用場景。

Its technical parameters and specifications enable it to meet the communication requirements in different industrial environments, providing stable data transmission and control functions.
其技術參數和規格使其能夠滿足不同工業環境下的通信需求，提供穩定的數據傳輸和控制功能。
