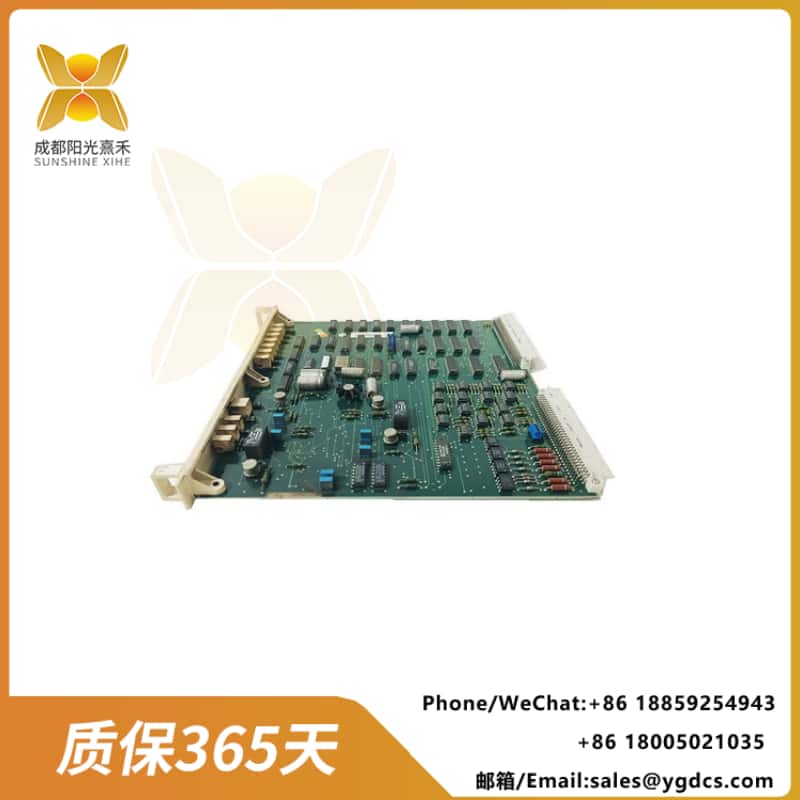

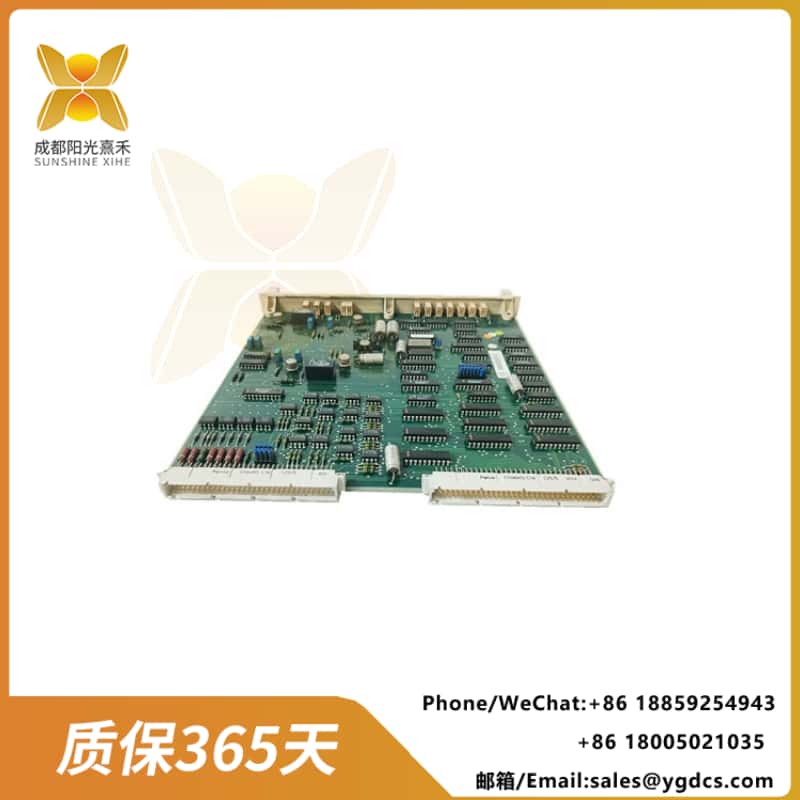

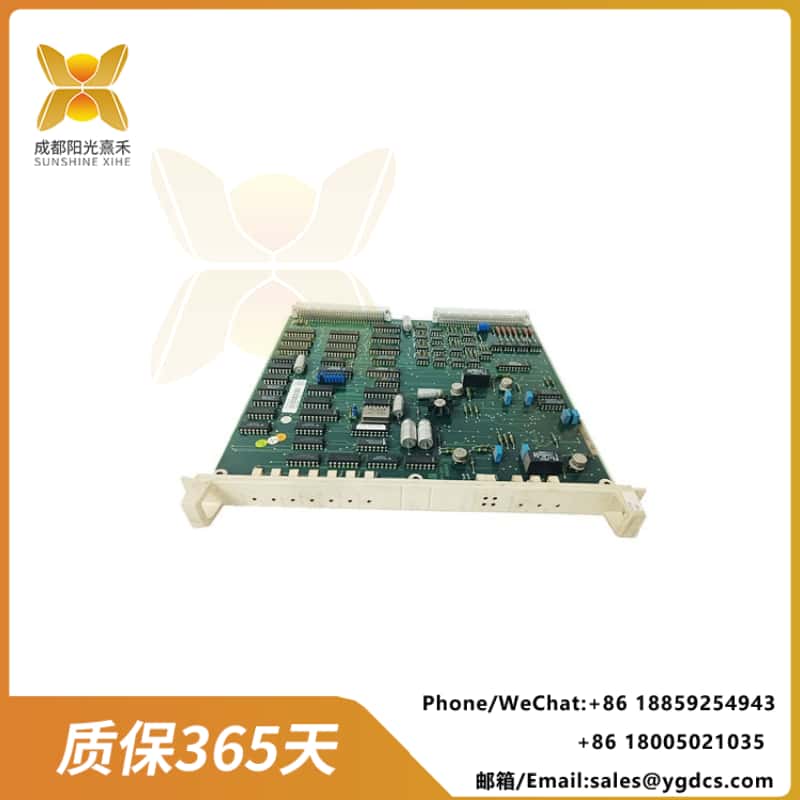

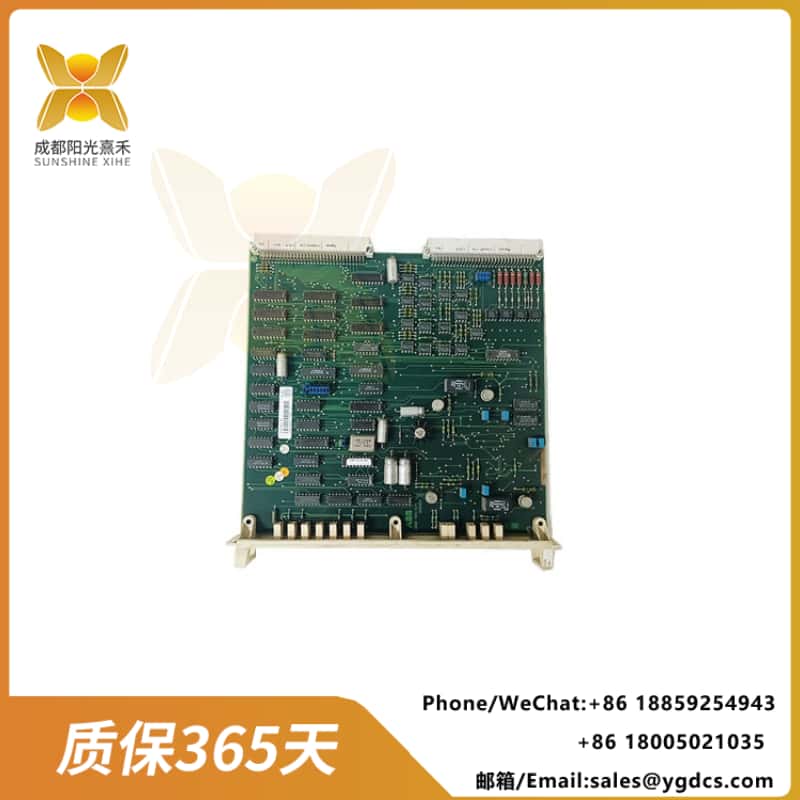

ABB DSBC172 | 57310001-KD | 數字 I/O 模塊
DSBC172 57310001-KD is a high-performance digital I/O module produced by ABB and is an important component in industrial automation and control systems.
DSBC172 57310001-KD 是 ABB 公司生產的一款高性能數字 I/O 模塊，屬于工業自動化和控制系統中的重要組成部分。
This module is mainly used in the field of industrial automation, providing input and output functions of digital signals to achieve precise control and monitoring of various industrial processes.
該模塊主要用于工業自動化領域，提供數字信號的輸入和輸出功能，以實現對各種工業過程的精確控制和監控。
Product function
產品功能
The main functions of DSBC172 57310001-KD include:
DSBC172 57310001-KD 的主要功能包括：
Signal amplification and regeneration: This module can enhance and regenerate bus signals, thereby extending the communication distance of the bus and improving the stability and reliability of the system.
信號放大與再生：該模塊能夠增強和再生總線信號，從而延長總線的通信距離，提高系統的穩定性和可靠性。
Bus expansion: As a bus repeater, it can expand the bus network, support long-distance data transmission, and is suitable for large-scale deployment in industrial automation systems.
總線擴展：作為總線中繼器，它能夠擴展總線網絡，支持長距離的數據傳輸，適用于工業自動化系統中的大規模部署。
Real-time monitoring: This module has the ability to monitor the communication status of the system bus in real time, can detect and report errors, and help users quickly locate and solve problems.
實時監控：該模塊具備實時監控系統總線通信狀況的能力，能夠檢測并報告錯誤，幫助用戶快速定位和解決問題。
Fault diagnosis: It provides a fault diagnosis function, which can quickly identify and solve problems in bus communication.
故障診斷：提供故障診斷功能，能夠快速識別和解決總線通信中的問題。
Modular design: Easy to install and maintain, suitable for use in various industrial environments.
模塊化設計：易于安裝和維護，適合在各種工業環境中使用。
Technical parameters
技術參數
The main technical parameters of DSBC172 57310001-KD are as follows:
DSBC172 57310001-KD 的主要技術參數如下：
Model: DSBC172 57310001-KD
型號：DSBC172 57310001-KD
Input/output type: Digital quantity
輸入/輸出類型：數字量
Number of channels: 16 channels
通道數量：16通道
Power supply voltage: 24V DC
電源電壓：24V DC
Operating temperature range: -25°C to +70°C (Some sources mention -40°C to +85°C or -20°C to +60°C)
工作溫度范圍：-25°C 至 +70°C（部分資料提到 -40°C 至 +85°C 或 -20°C 至 +60°C）
Relative humidity: 5% to 95% (no condensation)
相對濕度：5%~95%（無凝露）
Protection grade: IP20 (Some materials mention IP65)
防護等級：IP20（部分資料提到 IP65）
Interface type: DB9 female port
接口類型：DB9母口
Communication protocol: Supports multiple bus protocols such as Profibus, Modbus, DeviceNet, and CANopen
通信協議：支持 Profibus、Modbus、DeviceNet、CANopen 等多種總線協議
Transmission rates: 960kbps, 1.5Mbps, 3Mbps
傳輸速率：960kbps、1.5Mbps、3Mbps
Maximum transmission distance: 4 kilometers
最大傳輸距離：4公里
Installation method: DIN rail mounting
安裝方式：DIN 導軌安裝
Dimensions: 124 x 64 x 30 mm
尺寸：124 x 64 x 30 mm
Weight: Approximately 250 grams
重量：約 250 克
Application field
應用領域
DSBC172 57310001-KD is widely used in the following fields:
DSBC172 57310001-KD 廣泛應用于以下領域：
Industrial automation: Precise control used in fields such as mechanical manufacturing, machine tool processing, and conveying equipment.
工業自動化：用于機械制造、機床加工、輸送設備等領域的精確控制。
Manufacturing industry: It plays a significant role in production line control, data collection, robot control, and other aspects.
制造業：在生產線控制、數據采集、機器人控制等方面發揮重要作用。
Chemical industry: It is used for monitoring and controlling parameters in fields such as oil refining, fertilizer production, and oil storage and transportation.
化工行業：用于監測和控制煉油、化肥、石油儲運等領域的參數。
Steel metallurgy: Achieve automated control in processes such as blast furnaces, heat treatment, and steel rolling.
鋼鐵冶金：在高爐、熱處理、軋鋼等過程中實現自動化控制。
Electric energy: Controlling and monitoring the status of equipment in fields such as thermal power generation, nuclear power, and hydropower.
電力能源：在火力發電、核電、水電等領域中控制和監測設備狀態。
Building automation: Used for the connection and control of equipment such as HVAC controllers and lighting controllers.
樓宇自動化：用于 HVAC 控制器、照明控制器等設備的連接和控制。
Infrastructure automation: Used for the connection and control of SCADA devices, Rtus and other equipment.
基礎設施自動化：用于 SCADA 設備、RTU 等設備的連接和控制。
Summary
總結
DSBC172 57310001-KD is a high-performance digital I/O module, specifically designed for industrial automation and control systems.
DSBC172 57310001-KD 是一款高性能的數字 I/O 模塊，專為工業自動化和控制系統設計。
It features functions such as signal amplification, bus expansion, real-time monitoring, and fault diagnosis, and is suitable for various industrial environments.
它具備信號放大、總線擴展、實時監控、故障診斷等功能，適用于多種工業環境。
It has rich technical parameters, supports multiple communication protocols and interface types, and features high reliability and stability. It is widely used in industrial automation, manufacturing, chemical engineering, power and other fields.
其技術參數豐富，支持多種通信協議和接口類型，具有高可靠性和穩定性，廣泛應用于工業自動化、制造業、化工、電力等領域。
