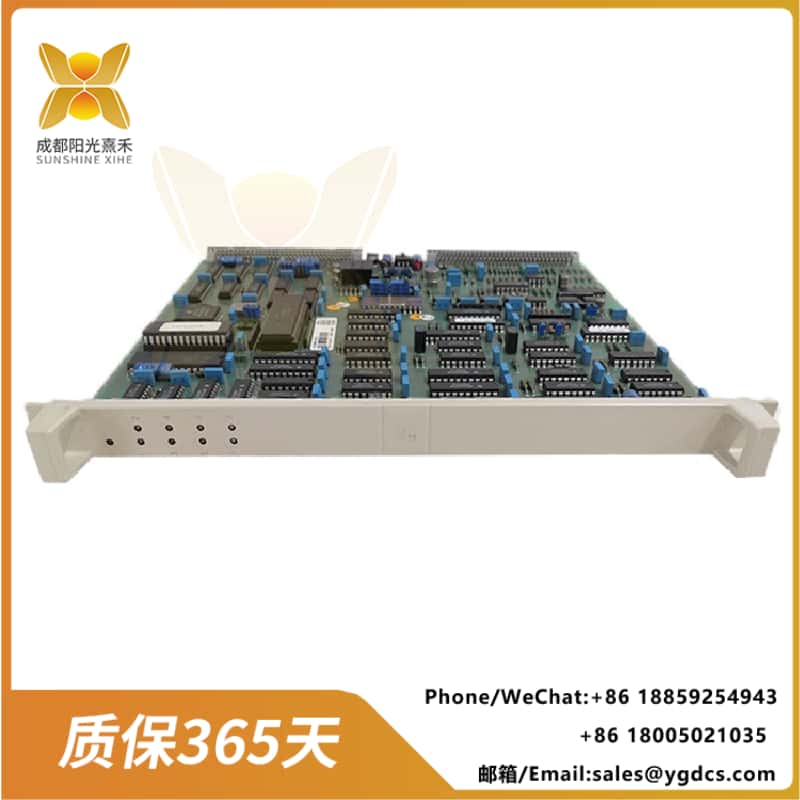

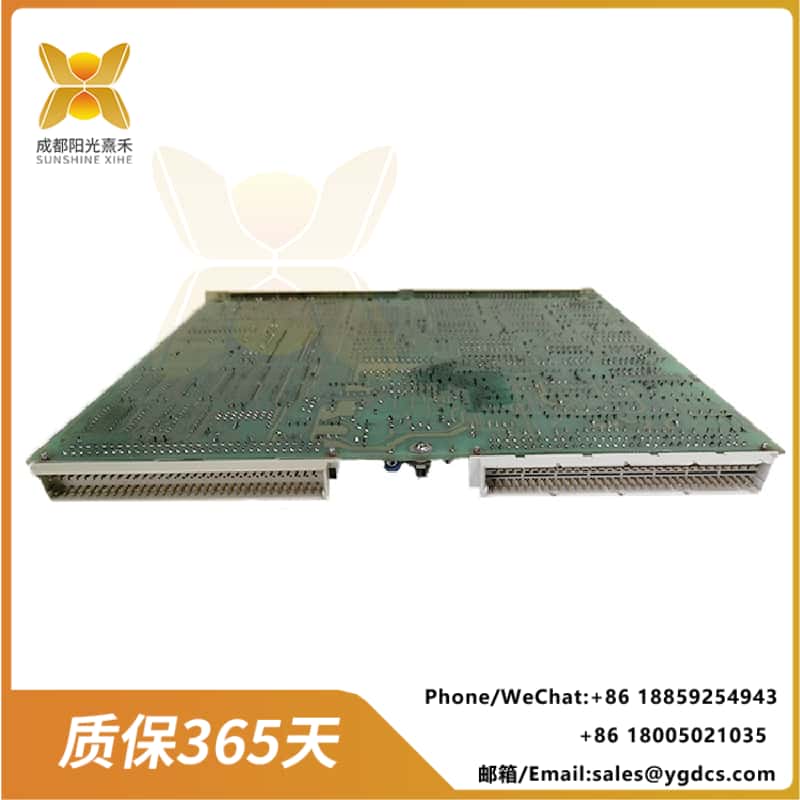

ABB DSDO 131 Series 57160001-KX digital output module
The ABB 57160001-KX is a digital output module manufactured by ABB, belonging to the DSDO 131 series, and is widely used in industrial automation control systems.
ABB 57160001-KX 是一款由 ABB 公司制造的數字輸出模塊，屬于 DSDO 131 系列，廣泛應用于工業自動化控制系統中。
The main function of this module is to convert digital signals from the controller into actual physical outputs, thereby controlling various types of devices or actuators, such as motors, valves, lamps, etc.
該模塊的主要功能是將來自控制器的數字信號轉換為實際的物理輸出，從而控制各種類型的設備或執行器，如電機、閥門、燈具等。
Product function
產品功能
The main functions of the ABB 57160001-KX digital output module include:
ABB 57160001-KX 數字輸出模塊的主要功能包括：
Digital output: It provides multiple digital output channels and can independently control the on/off status of external devices.
數字輸出：提供多個數字輸出通道，可以獨立控制外部設備的開關狀態。
High-speed response: Quickly respond to control instructions to achieve real-time control.
高速響應：快速響應控制指令，實現實時控制。
High stability: Advanced technology and materials are adopted to ensure long-term stable operation.
高穩定性：采用先進的技術和材料，確保長時間穩定運行。
Easy to configure: Parameters can be set through simple configuration tools or software.
易于配置：通過簡單的配置工具或軟件進行參數設置。
Scalability: Supports multiple communication protocols and interfaces, facilitating connection and communication with other control units.
擴展性：支持多種通信協議和接口，便于與其他控制單元連接和通信。
Protection functions: It is equipped with a variety of protection functions, such as overcurrent, overvoltage, undervoltage, etc., to ensure the safe operation of the equipment.
保護功能：具備豐富的保護功能，如過電流、過電壓、欠電壓等，確保設備安全運行。
Technical parameters
技術參數
The technical parameters of the ABB 57160001-KX digital output module are as follows:
ABB 57160001-KX 數字輸出模塊的技術參數如下：
Output type: Relay
輸出類型：繼電器
Output quantity: 16
輸出數量：16 個
Load capacity
負載能力：
Dc load: 48W
直流負載：48W
Ac load: 720VA
交流負載：720VA
Voltage range: 0-240V AC/DC
電壓范圍：0-240V AC/DC
Operating temperature: -40℃ to +75℃
工作溫度：-40℃ 至 +75℃
Storage temperature: -40℃ to +85℃
存儲溫度：-40℃ 至 +85℃
Relative humidity: 5% to 95% (non-condensing)
相對濕度：5% 至 95%（非冷凝）
Protection grade: IP20
防護等級：IP20
Dimensions: 324 mm x 18 mm x 225 mm
尺寸：324 mm x 18 mm x 225 mm
Weight: 0.7 kg
重量：0.7 kg
Interface: Supports RS-232 and RS-485
接口：支持 RS-232 和 RS-485
Communication protocols: Supports Ethernet /IP, Modbus TCP and PROFINET
通信協議：支持以太網/IP、Modbus TCP 和 PROFINET
Overvoltage protection: 45VDC
過壓保護：45 VDC
Overcurrent limit: 600 mA per contact
過流限制：600 mA 每個觸點
Overheat protection: 175 ℃ (typical value), 150 ℃ (minimum value)
過熱保護：175 ℃（典型值），150 ℃（最小值）
Output current: up to 200 mA per channel
輸出電流：最大 200 mA 每個通道
Isolation protection: 3 kVDC or 2 kVrms
隔離保護：3 kVDC 或 2 kVrms
Installation method: DIN rail mounting, optional hanging plate mounting
安裝方式：DIN 導軌安裝，可選掛板安裝
Application field
應用領域
The ABB 57160001-KX digital output module is widely used in the following fields:
ABB 57160001-KX 數字輸出模塊廣泛應用于以下領域：
Process control: In industries such as chemical engineering and pharmaceuticals, it is used to control various equipment during the production process.
過程控制：在化工、制藥等行業，用于控制生產過程中的各種設備。
Automated production lines: In industries such as automotive manufacturing and electronic manufacturing, they are used to achieve automated control of production lines.
自動化生產線：在汽車制造、電子制造等行業，用于實現生產線的自動化控制。
Building automation: It is used to control the lighting, ventilation, air conditioning and other systems within a building.
樓宇自動化：用于控制樓宇內的照明、通風、空調等系統。
Water treatment: Used to control various equipment in the water treatment process.
水處理：用于控制水處理過程中的各種設備。
Power system: Used to control circuit breakers, transformers and other power generation equipment.
電力系統：用于控制斷路器、變壓器和其他發電設備。
Petroleum refineries: Used for controlling valves, pumps and other process equipment.
石油煉油廠：用于控制閥門、泵和其他工藝設備。
Power plant: Used to control circuit breakers, transformers and other power generation equipment.
發電廠：用于控制斷路器、變壓器和其他發電設備。
Food processing plants: Used to control conveyors, packaging machines and other food processing equipment.
食品加工廠：用于控制輸送機、包裝機和其他食品加工設備。
Summary
總結
The ABB 57160001-KX is a high-performance digital output module specifically designed for industrial automation control systems.
ABB 57160001-KX 是一款高性能的數字輸出模塊，專為工業自動化控制系統設計。
It features high reliability, flexibility and ease of use, and is suitable for various industrial applications. It can meet complex control requirements, improve production efficiency and quality, and reduce operating costs.
它具有高可靠性、靈活性和易用性，適用于各種工業應用，能夠滿足復雜的控制需求，提高生產效率和質量，降低運營成本。
