描述

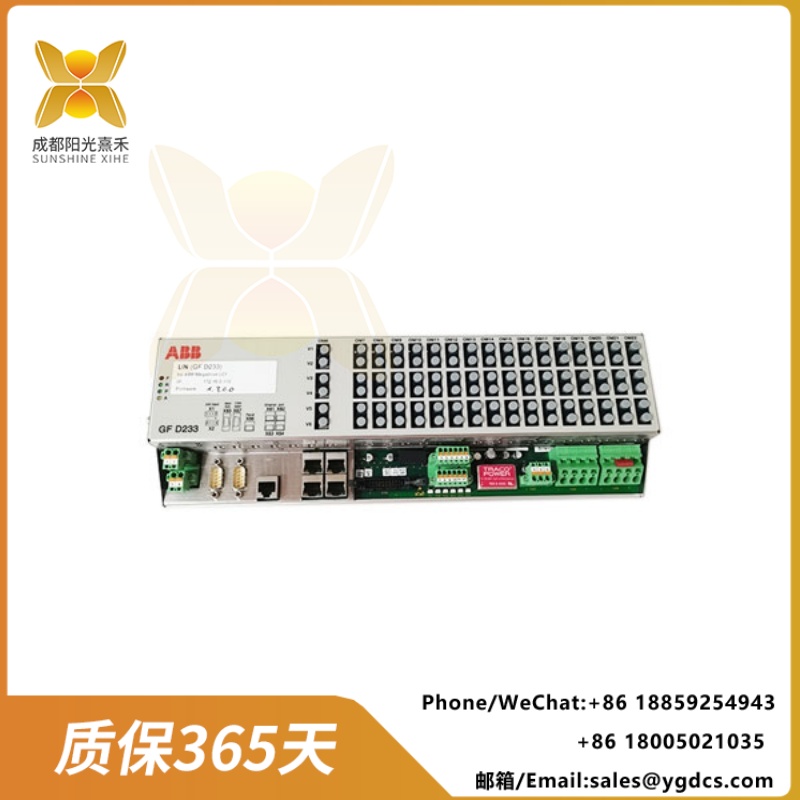

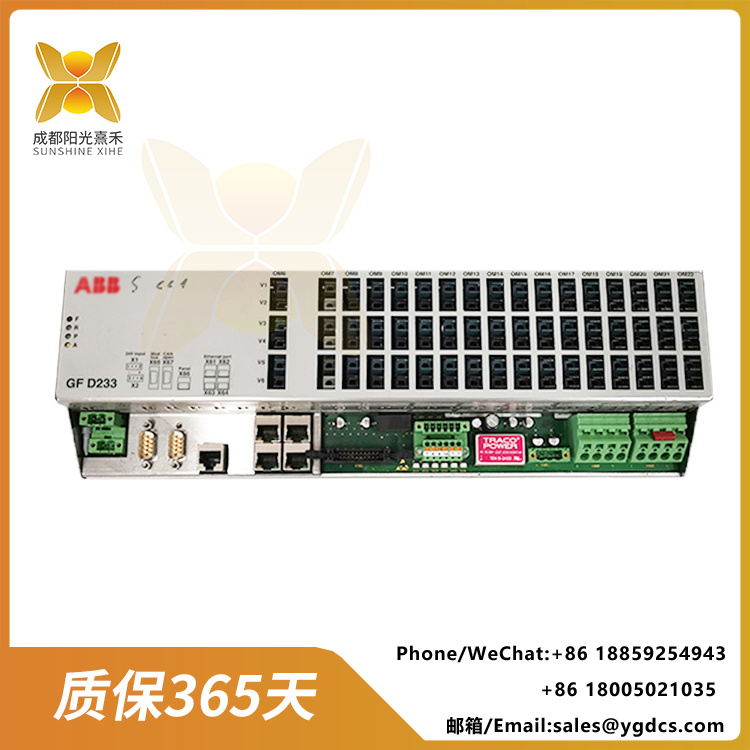

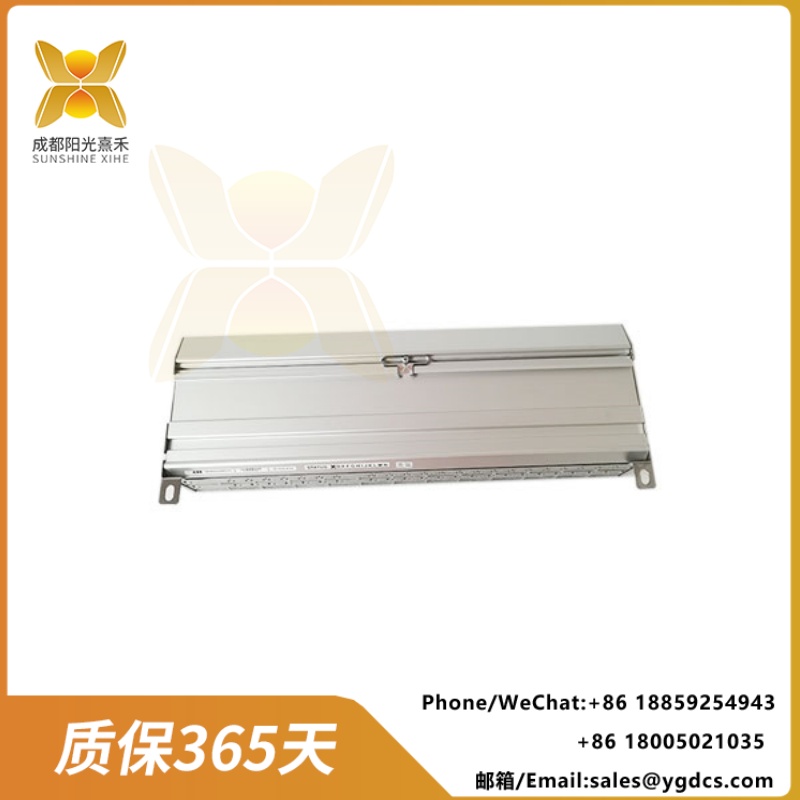

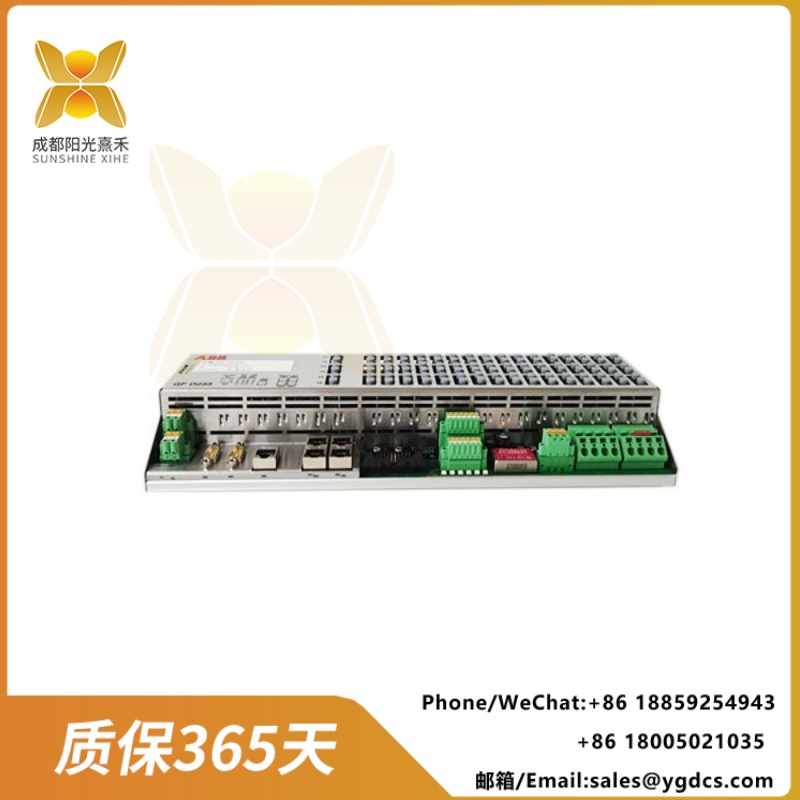

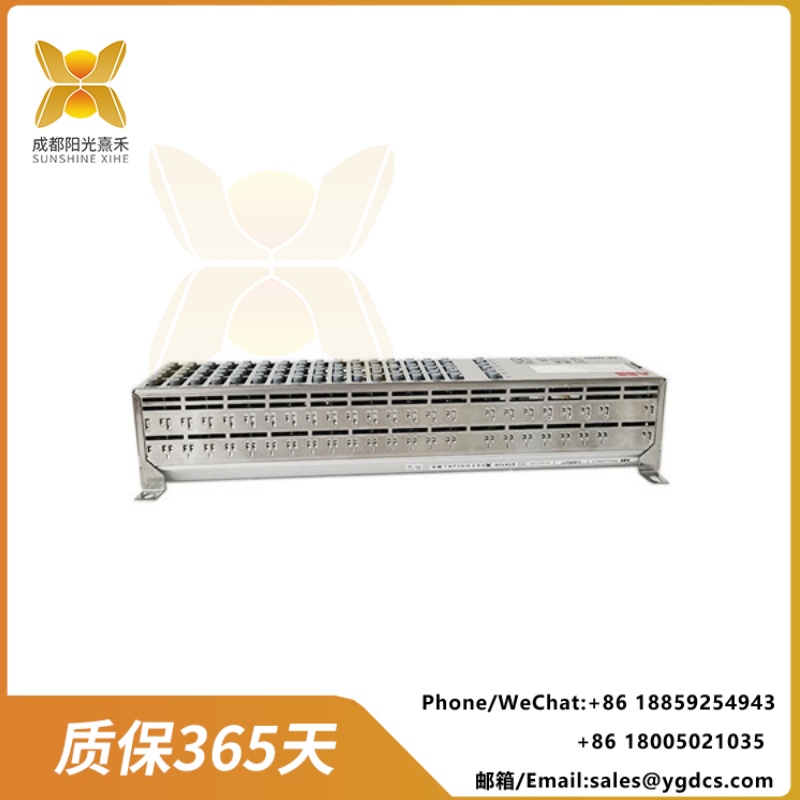

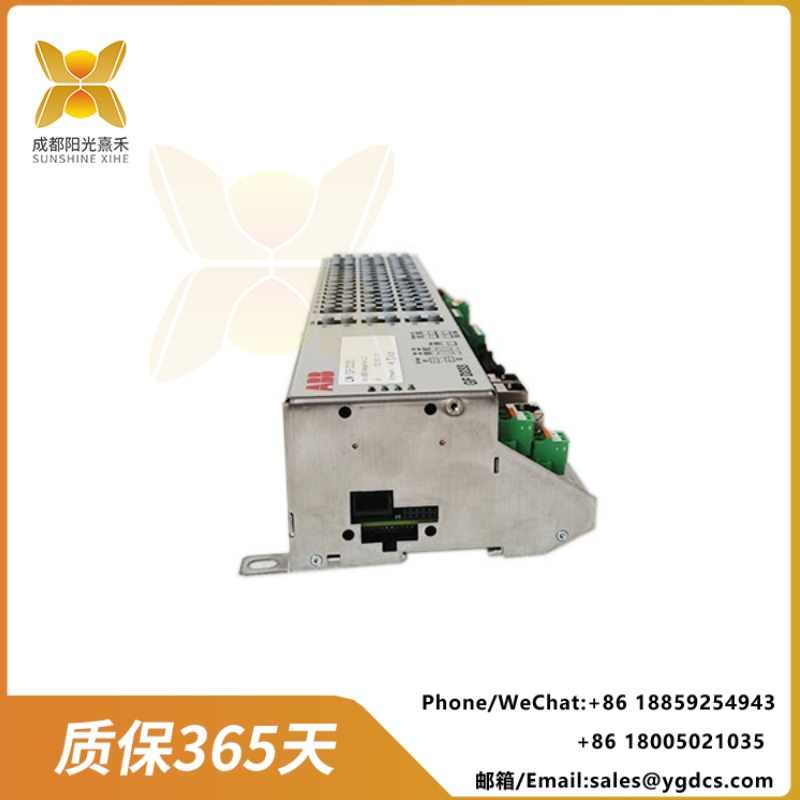

ABB GFD233A103 3BH022294R0103 工業自動化控制模塊

ABB GFD233A103 3BHE022294R0103 is a multi-functional industrial automation control module, belonging to ABB’s GFD series.
ABB GFD233A103 3BHE022294R0103 是一款多功能工業自動化控制模塊，屬于 ABB 的 GFD 系列。

This module features high performance, high reliability and flexible configuration, and is suitable for tasks such as process control, real-time monitoring and data processing.
該模塊具有高效能、高可靠性和靈活配置的特點，適用于過程控制、實時監測和數據處理等任務 。

It supports functions such as voltage and current regulation, signal conditioning, data acquisition, and integration with other modules.
它支持電壓和電流調節、信號調理、數據采集及與其他模塊的集成等功能 。

Product parameters
產品參數

Input voltage: 24VDC ± 20% or 220VAC
輸入電壓：24VDC ± 20% 或 220VAC

Output voltage: 0-10VDC or 24VDC (depending on the model)
輸出電壓：0~10VDC 或 24VDC（具體取決于型號）

Rated current: Maximum 5A or 230A
額定電流：最大為 5A 或 230A

Power: 3KW or 30KW
功率：3KW 或 30KW

Operating temperature range: -25℃ to +70℃ or -10℃ to +40℃
工作溫度范圍：-25℃ 至 +70℃ 或 -10℃ 至 +40℃

Size: Depending on the model, the range is from 80mm x 100mm x 50mm to 400mm x 300mm x 200mm
尺寸：根據型號不同，范圍為 80mm x 100mm x 50mm 至 400mm x 300mm x 200mm

Communication interface: Supports Ethernet, serial communication, Modbus and Profibus, etc
通信接口：支持以太網、串行通信、Modbus 和 Profibus 等

Protection grade: IP20 or higher
防護等級：IP20 或更高

Product features
產品特點

High-performance processor: Supports fast response and efficient control.
高性能處理器：支持快速響應和高效控制。

Customized design: It can be programmed and configured according to customer requirements and is suitable for a variety of industrial application scenarios.
定制設計：可根據客戶需求進行編程和配置，適用于多種工業應用場景。

High reliability: Utilizing high-quality materials and advanced technology, it ensures stable operation in various environments.
高可靠性：采用優質材料和先進工藝，確保在各種環境下穩定運行。

Multi-functional integration: Supports digital input/output, analog input/output and communication functions.
多功能集成：支持?jǐn)?shù)字輸入輸出、模擬量輸入輸出及通信功能。

Flexible scalability: It can be seamlessly integrated with PLC systems or other devices to expand the number of I/O points.
靈活擴展性：可與 PLC 系統或其他設備無縫集成，擴展 I/O 點數。

Application field
應用領域

ABB GFD233A103 3BHE022294R0103 is widely used in industrial automation, power generation, industrial power systems, ship power systems and transportation infrastructure, etc.
ABB GFD233A103 3BHE022294R0103 廣泛應用于工業自動化、電力發電、工業電力系統、船舶動力系統和交通基礎設施等領域 。

It can provide precise process control and monitoring, and is applicable to multiple industries, such as manufacturing, petrochemicals, food processing, sewage treatment, etc.
它能夠提供精確的過程控制和監控，適用于多個行業，如制造業、石油化工、食品加工、污水處理等 。

Technical advantage
技術優勢

High-precision control: Provides precise motion control and is suitable for high-precision applications.
高精度控制：提供精確的運動控制，適用于高精度應用。

High reliability: ABB’s industrial control products are renowned for their reliability in harsh environments.
高可靠性：ABB 的工業控制產品以其在惡劣環境下的可靠性而著稱。

System integration: Designed for seamless integration with other control systems of ABB.
系統集成：設計用于與 ABB 的其他控制系統無縫集成。

Stability: Provides stable control performance in critical industrial processes.
穩定性：在關鍵工業過程中提供穩定的控制性能。

Application flexibility: Supports multiple motion control modes and parameter configurations.
應用靈活性：支持多種運動控制模式和參數配置 。

Product Description
產品描述

ABB GFD233A103 3BHE022294R0103 is a high-performance industrial automation control module, specifically designed for industrial automation applications.
ABB GFD233A103 3BHE022294R0103 是一款高性能的工業自動化控制模塊，專為工業自動化應用設計。

It combines high-performance processors and advanced control algorithms to achieve rapid response and efficient system control.
它結合了高性能的處理器和先進的控制算法，以實現快速響應和高效的系統控制。

This module features high integration, integrating core functions such as voltage and current regulation, power factor control, and protection functions, simplifying the system design and installation process.
該模塊具有高度集成的特點，集成了電壓和電流調節、功率因數控制、保護功能等核心功能，簡化了系統設計和安裝過程 。

Product application
產品應用

This module is applicable to industrial automation control systems, such as motor drive and control fields.
該模塊適用于工業自動化控制系統，如電機驅動和控制等領域。

It can provide efficient, stable and reliable power conversion capabilities, offering strong support for industrial production.
它能夠提供高效、穩定、可靠的電力轉換能力，為工業生產提供了強有力的支持 。

In addition, it is also applicable to applications such as industrial automation, process control, data acquisition, signal conditioning and excitation control.
此外，它還適用于工業自動化、過程控制、數據采集、信號調理和勵磁控制等應用 。

Summary
總結

ABB GFD233A103 3BHE022294R0103 is a high-performance industrial automation control module, suitable for a variety of industrial application scenarios.
ABB GFD233A103 3BHE022294R0103 是一款高性能的工業自動化控制模塊，適用于多種工業應用場景。

It features high performance, high reliability and flexible configuration, and can meet the demands of industrial automation, process control, data acquisition and signal conditioning, etc.
它具有高效能、高可靠性和靈活配置的特點，能夠滿足工業自動化、過程控制、數據采集和信號調理等需求。

If you need further technical support or product information, you can contact the contact details provided above.
如果您需要進一步的技術支持或產品信息，可以聯系上述提供的聯系方式。
