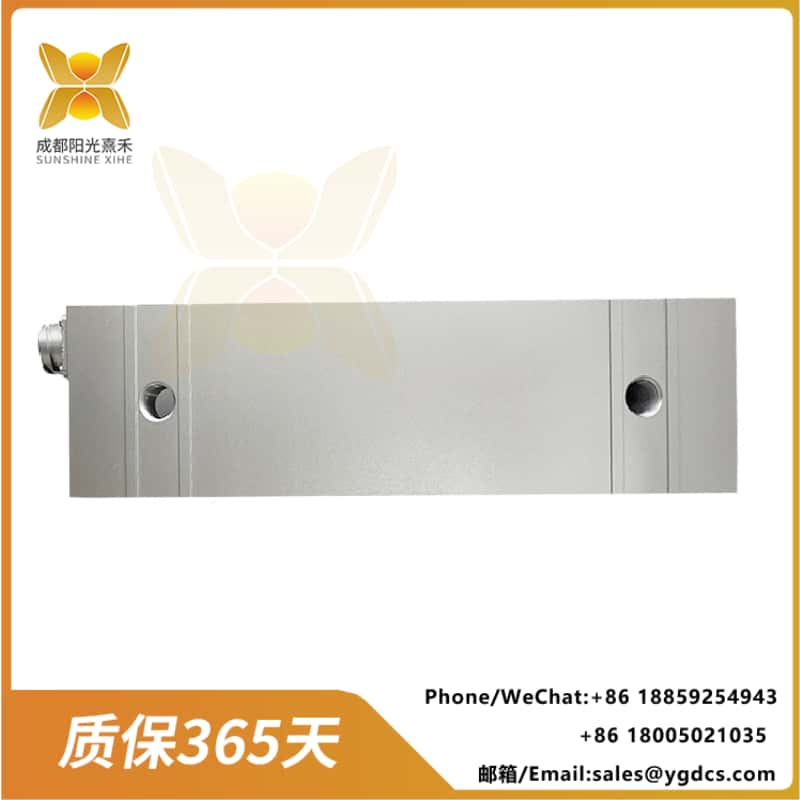

ABB PFTL101B 20KN 3BSE004203R1 枕形負載傳感器

ABB PFTL101B 20KN 3BSE004203R1 is a Pillow Load Cell sensor produced by ABB, belonging to ABB’s Pressductor series products.
ABB PFTL101B 20KN 3BSE004203R1 是一款由 ABB 公司生產的 枕形負載傳感器（Pillow Load Cell），屬于 ABB 的 Pressductor 系列產品。

This sensor is mainly used to measure force in the horizontal direction. It features high precision, durability and multi-functionality, and is suitable for various industrial application scenarios, such as the pulp and paper industry, metallurgy, steel manufacturing, papermaking, glass manufacturing and other industries.
該傳感器主要用于測量水平方向的力，具有高精度、耐用性和多功能性，適用于多種工業應用場景，如紙漿和紙張行業、冶金、鋼鐵制造、造紙、玻璃制造等行業。

Product features
產品特點

High precision: This sensor adopts advanced sensing technology and can provide precise force measurement, making it suitable for industrial applications with high precision requirements.
高精度：該傳感器采用先進的傳感技術，能夠提供精確的力測量，適用于對精度要求較高的工業應用。

Durability: The design is robust and durable, suitable for harsh industrial environments, and capable of withstanding long-term high-intensity use.
耐用性：設計堅固耐用，適用于惡劣的工業環境，能夠承受長時間的高強度使用。

Versatility: It can be used for various measurement tasks, such as tension measurement, weight measurement, etc., and is widely applied in industrial automation systems.
多功能性：可用于多種測量任務，如張力測量、重量測量等，廣泛應用于工業自動化系統。

Easy to install: Convenient to install, simple to maintain, suitable for rapid deployment and integration into existing systems.
易于安裝：安裝方便，維護簡單，適合快速部署和集成到現有系統中。

Pieter-magnetic probe technology: Based on ABB’s pieter-magnetic principle, it can generate standardized pressure levels in a magnetic field distortion field, ensuring the stability and reliability of the measurement.
壓磁探針技術：基于 ABB 的壓磁原理，能夠在磁場畸變場中產生標準化的壓力水平，確保測量的穩定性和可靠性。

Technical parameters
技術參數

Rated load: 20 kilonewtons (kN), approximately 2,000 kilograms of force.
額定負載：20 千牛（kN），即約為 2000 公斤力。

Power supply voltage: 24 volts direct current (VDC).
電源電壓：24 伏直流電（VDC）。

Output signal: 4-20 milliampere (mA).
輸出信號：4-20 毫安（mA）。

Accuracy: ±0.1% full scale (FSO).
精度：±0.1% 滿量程（FSO）。

Operating temperature range: -20℃ to +60℃.
工作溫度范圍：-20℃ 至 +60℃。

Dimensions: 100mm × 40mm × 80mm.
尺寸：100 毫米 × 40 毫米 × 80 毫米。

Weight: 0.3 kilograms.
重量：3.7 千克。

Protection grade: IP20.
防護等級：IP20。

Communication protocol: PROFIBUS-DP.
通信協議：PROFIBUS-DP。

Certifications: CE, UL, CSA.
認證：CE、UL、CSA。

Overload capacity: 150%.
過載能力：150%。

Protection grade: IP66.
防護等級：IP66。

Application field
應用領域

ABB PFTL101B 20KN 3BSE004203R1 is mainly applied in the following fields:
ABB PFTL101B 20KN 3BSE004203R1 主要應用于以下領域：

Pulp and paper industry: It is used in equipment such as paper machines, calendering machines, coiling machines and coiling machines to measure the tension and weight of paper.
紙漿和紙張行業：用于紙機、壓光機、涂布機和卷取機等設備中，測量紙張的張力和重量。

Metallurgical industry: Suitable for applications with low tension, heavy rolling and high-speed operation, such as rolling mills, coiling machines, etc.
冶金行業：適用于低張力、重軋和高速運行的應用，如軋機、卷取機等。

Steel manufacturing: Used to measure the thickness and weight of steel plates to ensure product quality.
鋼鐵制造：用于測量鋼板的厚度和重量，確保產品質量。

Textile industry: Used to measure the weight and tension of textiles to ensure the quality of textiles.
紡織行業：用于測量紡織品的重量和張力，確保紡織品的質量。

Glass manufacturing: Used to measure the weight and tension of glass plates to ensure the stability of the production process.
玻璃制造：用于測量玻璃板的重量和張力，確保生產過程的穩定性。

Summary
總結

The ABB PFTL101B 20KN 3BSE004203R1 is a high-performance pillow-shaped load sensor suitable for a variety of industrial application scenarios.
ABB PFTL101B 20KN 3BSE004203R1 是一款高性能的枕形負載傳感器，適用于多種工業應用場景。

It features high precision, durability, multi-functionality and easy installation, and can meet the high requirements for force measurement in industrial automation systems.
它具備高精度、耐用性、多功能性和易于安裝的特點，能夠滿足工業自動化系統中對力測量的高要求。

This product is widely used in industries such as pulp and paper, metallurgy, steel manufacturing, textile, and glass manufacturing, and is an important component of the industrial control field.
該產品廣泛應用于紙漿和紙張、冶金、鋼鐵制造、紡織、玻璃制造等行業，是工業控制領域的重要組成部分。
