描述

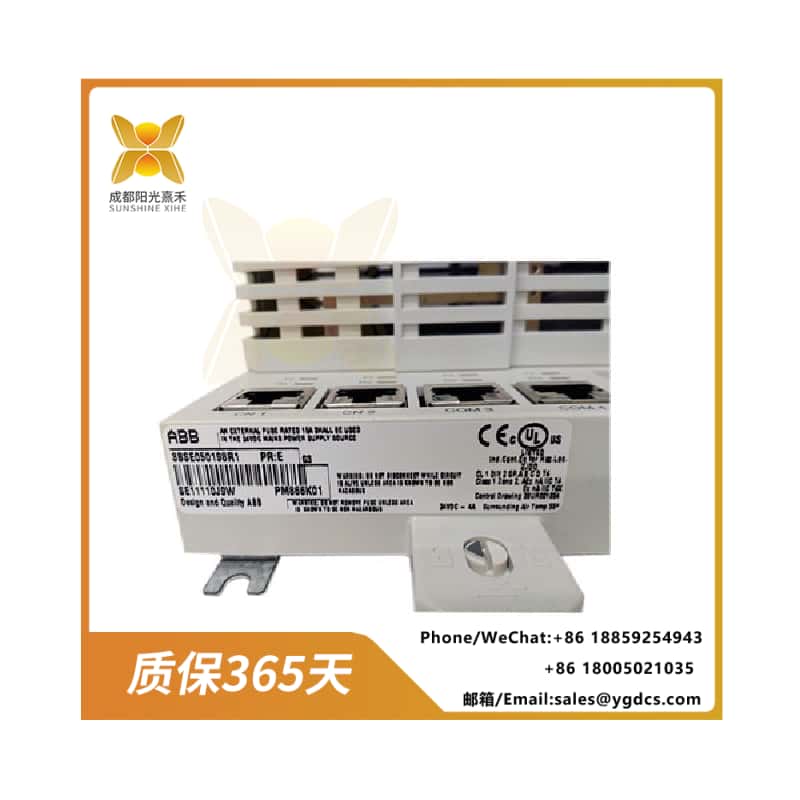

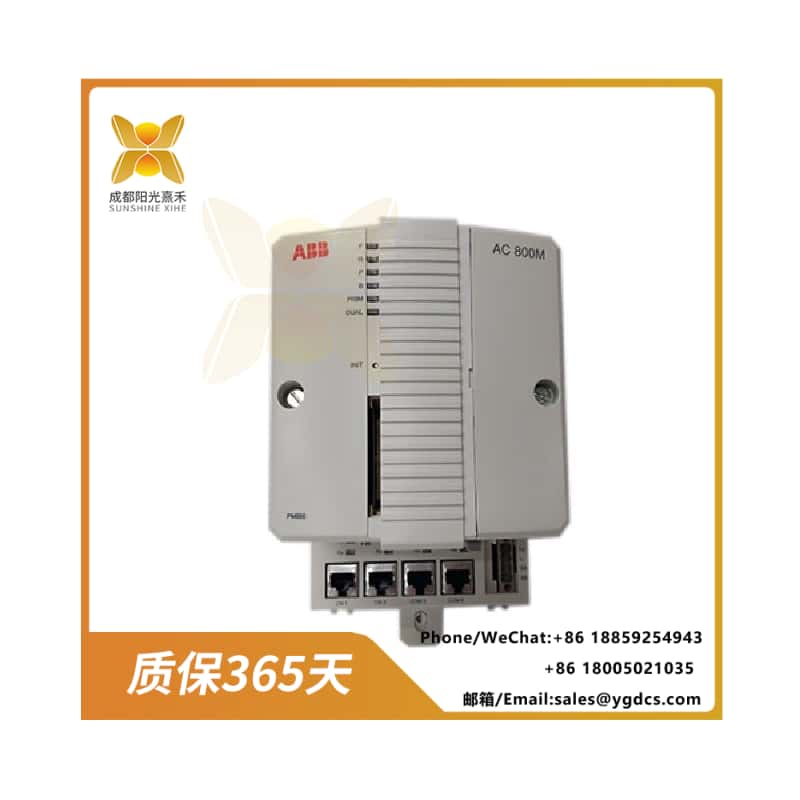

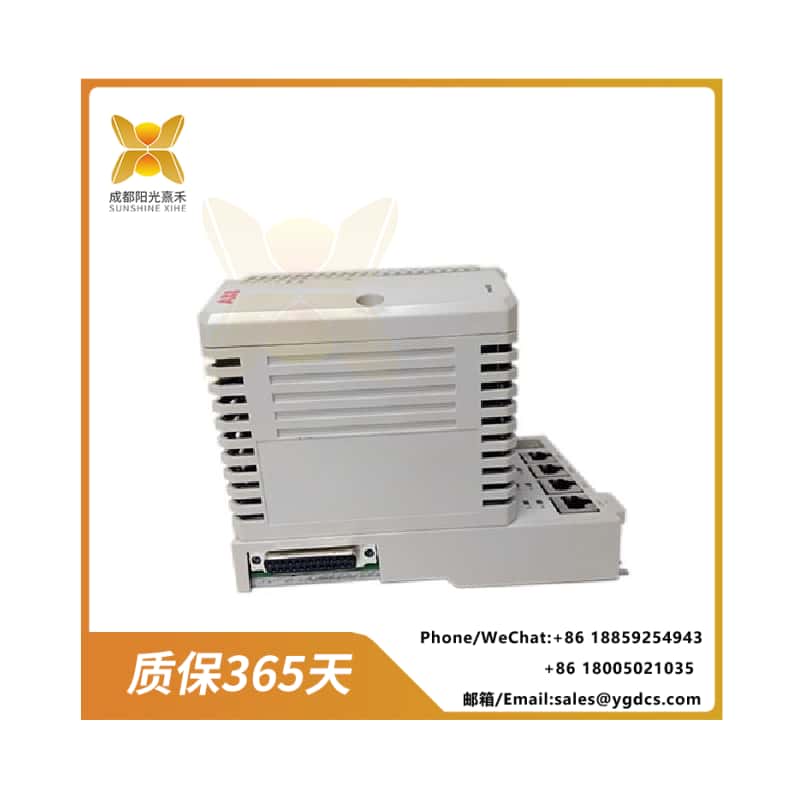

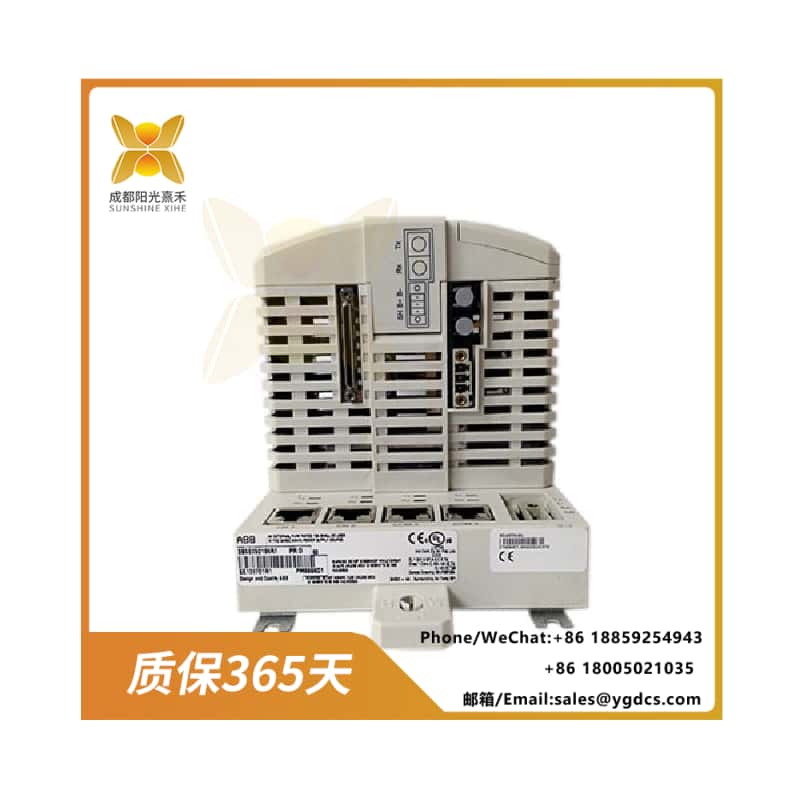

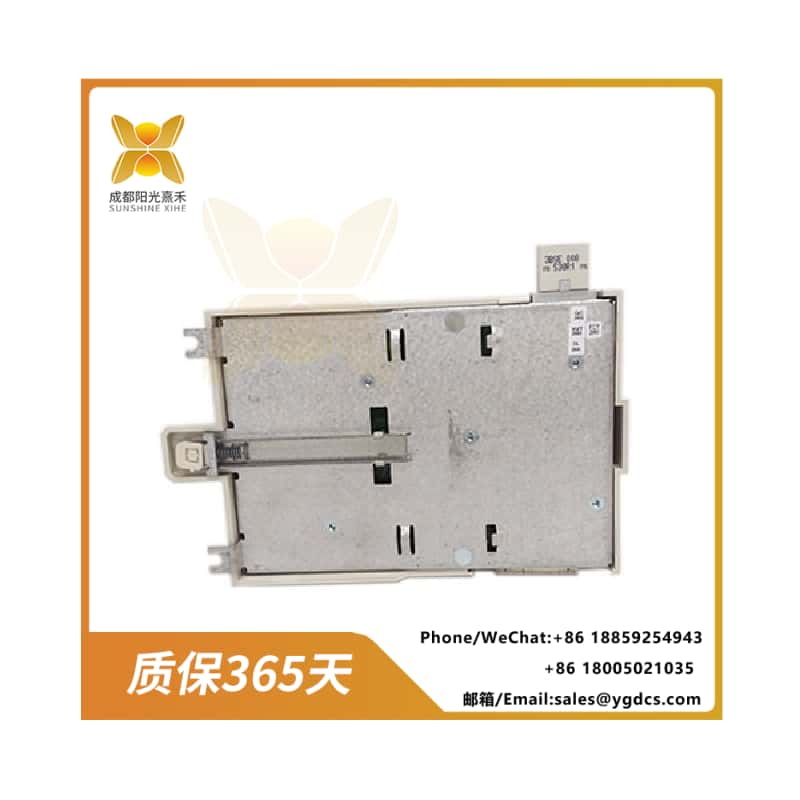

ABB PM866K01 | 3BSE050198R1 | 工業自動化處理器單元

Pm866k03bse050198r1 is a high-performance industrial automation processor unit produced by ABB and is one of the core components of the ABB AC800M series control system.
PM866K01 3BSE050198R1 是 ABB 公司生產的一款高性能工業自動化處理器單元，屬于 ABB AC800M 系列控制系統的核心組件之一。

This product is widely used in the industrial automation control fields of industries such as power, petrochemical, metallurgy, and papermaking, featuring powerful computing capabilities, flexible configuration, and high reliability.
該產品廣泛應用于電力、石油化工、冶金、造紙等行業的工業自動化控制領域，具備強大的計算能力、靈活的配置和高可靠性。

Product function
產品功能

The main functions of PM866K01 3BSE050198R1 include:
PM866K01 3BSE050198R1 主要功能包括：

Real-time control and monitoring: Capable of executing complex control logic in real time to ensure the efficient operation of industrial systems.
實時控制與監控：能夠?qū)崟r(shí)執行復雜的控制邏輯，確保工業系統的高效運行。

Data acquisition and processing: Supports multiple input and output channels, including digital input (DI), digital output (DO), analog input (AI), and analog output (AO), as well as PT100 input, for collecting and processing various data in industrial processes.
數據采集與處理：支持多種輸入輸出通道，包括數字輸入（DI）、數字輸出（DO）、模擬輸入（AI）和模擬輸出（AO），以及 PT100 輸入，用于采集和處理工業過程中的各種數據。

Communication interface: Supports multiple communication protocols such as Ethernet, serial port (RS232/RS485), and USB interface, facilitating data exchange with the host computer or other devices.
通信接口：支持以太網、串口（RS232/RS485）、USB 接口等多種通信協議，便于與上位機或其他設備進行數據交換。

Programmability: Supports multiple programming languages, allowing users to customize programming based on specific needs to achieve complex control tasks.
可編程性：支持多種編程語言，用戶可以根據具體需求進行定制化編程，實現復雜的控制任務。

Safety and reliability: It is equipped with multiple protection functions such as overcurrent protection, overvoltage protection, undervoltage protection, and over-temperature protection, ensuring the stable operation of the system in harsh environments.
安全與可靠性：具備過電流保護、過電壓保護、欠電壓保護、過溫保護等多重保護功能，確保系統在惡劣環境下穩定運行。

Technical parameters
技術參數

The following are the main technical parameters of PM866K01 3BSE050198R1:
以下是 PM866K01 3BSE050198R1 的主要技術參數：

Parameter description
參數 描述

Model PM866K01
型號 PM866K01

Part Number: 3BSE050198R1
部件編號 3BSE050198R1

The processor type is dual-core ARM Cortex-A9 or PowerPC 750, with a main frequency up to 800 MHz or 1 GHz
處理器類型 雙核 ARM Cortex-A9 或 PowerPC 750，主頻可達 800 MHz 或 1 GHz

Memory: 8MB RAM and 8MB Flash (Some models support larger capacity)
內存 8MB RAM 和 8MB Flash（部分型號支持更大容量）

Working voltage: 24V DC
工作電壓 24V DC

Operating temperature range: -40°C to +70°C (for some models, -20°C to +60°C)
工作溫度范圍 -40°C 至 +70°C（部分型號為 -20°C 至 +60°C）

Storage temperature range: -40°C to +85°C
存儲溫度范圍 -40°C 至 +85°C

The communication interfaces include 2 Ethernet ports, 2 serial ports (RS232/RS485), 1 PROFIBUS DP interface, and a USB 2.0 interface
通信接口 2個以太網端口、2個串口（RS232/RS485）、1個 PROFIBUS DP 接口、USB 2.0 接口

The input/output channels include 16 DI, 16 DO, 4 AI, 2 AO, and 2 PT100 inputs
輸入/輸出通道 16個 DI、16個 DO、4個 AI、2個 AO、2個 PT100 輸入

The power consumption is less than 30 watts
功耗 小于 30 W

Protection grade IP65 (suitable for harsh industrial environments)
防護等級 IP65（適用于惡劣工業環境）

The dimensions are approximately 144mm × 119mm × 63mm (some models may vary slightly).
尺寸 約 144mm × 119mm × 63mm（部分型號略有不同）

The weight is approximately 0.8 kilograms
重量 約 0.8 kg

Installation method: DIN rail mounting
安裝方式 DIN 導軌安裝

Obtain international certifications such as CE, UL, and CSA
認證 CE、UL、CSA 等國際認證

Application field
應用領域

PM866K01 3BSE050198R1 is widely used in the following industrial fields:
PM866K01 3BSE050198R1 廣泛應用于以下工業領域：

Electric power industry: For automatic control and monitoring in power plants.
電力行業：用于發電廠的自動化控制和監控。

Petrochemical industry: Used for process flow control in oil refineries and chemical plants.
石油化工行業：用于煉油廠、化工廠的工藝流程控制。

Metallurgical industry: It is used for the control of blast furnaces, steel rolling and other equipment in steel mills.
冶金行業：用于鋼鐵廠的高爐、軋鋼等設備的控制。

Papermaking industry: used for tension control, speed regulation, etc. in paper production lines.
造紙行業：用于紙張生產線的張力控制、速度調節等。

Other industrial fields: such as wind turbines, pumps, machine tools, textile machinery, etc.
其他工業領域：如風力渦輪機、泵、機床、紡織機械等。

Summary
總結

The PM866K03BSE050198R1 is a high-performance and highly reliable industrial automation processor unit that integrates powerful computing capabilities, flexible communication interfaces, and abundant I/O resources, making it suitable for various complex industrial control scenarios.
PM866K01 3BSE050198R1 是一款高性能、高可靠性的工業自動化處理器單元，集成了強大的計算能力、靈活的通信接口和豐富的 I/O 資源，適用于各種復雜的工業控制場景。

Its modular design and scalability make it an important component of modern industrial automation systems.
其模塊化設計和可擴展性使其成為現代工業自動化系統的重要組成部分。
