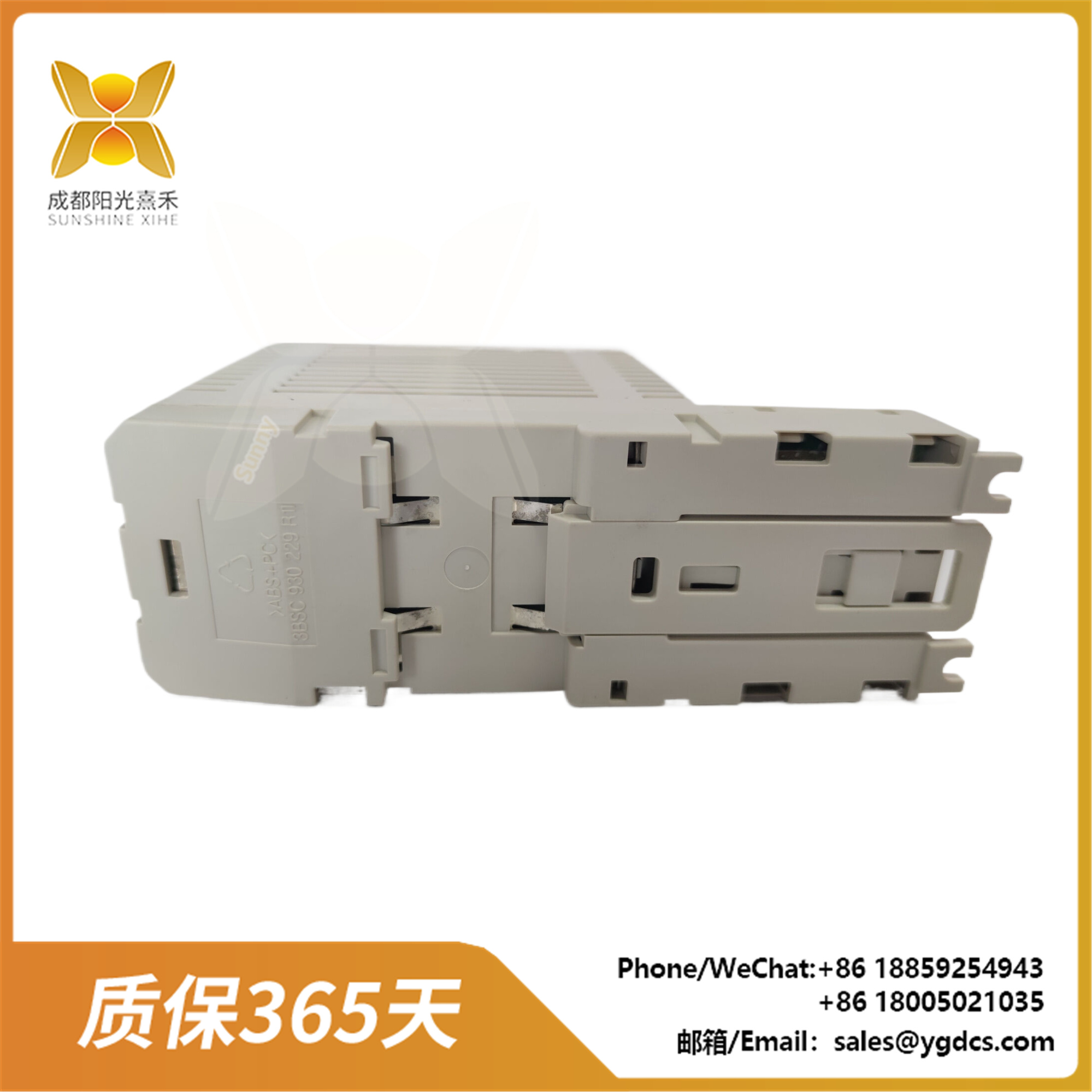

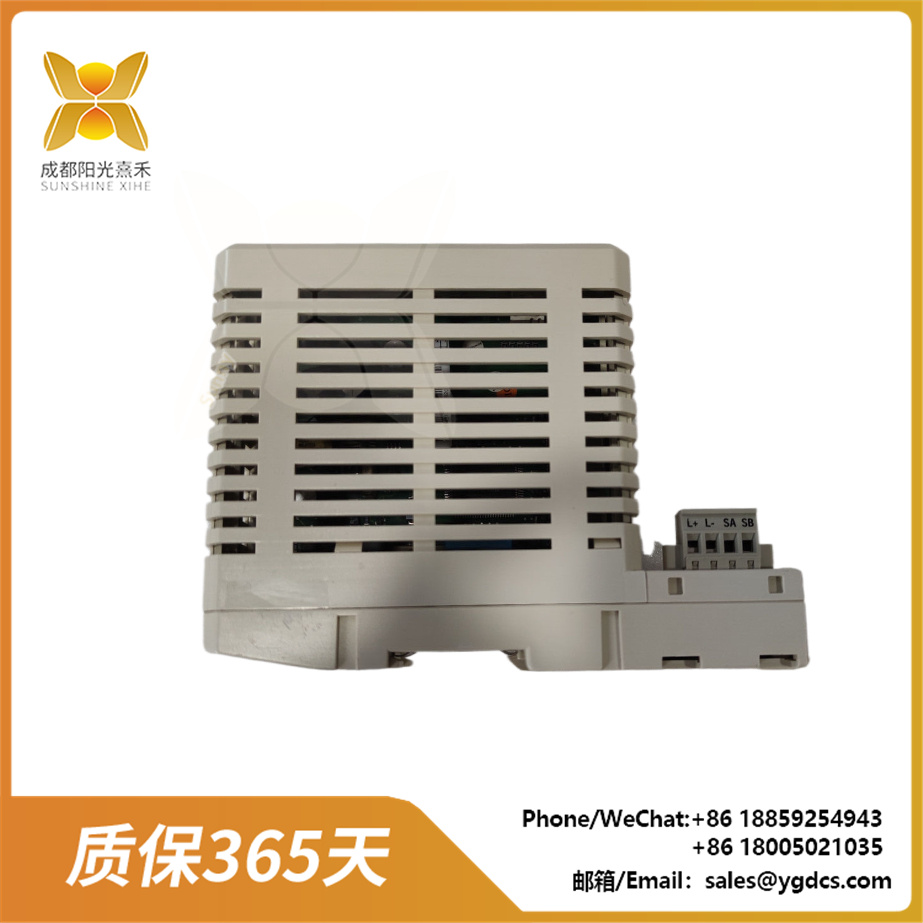

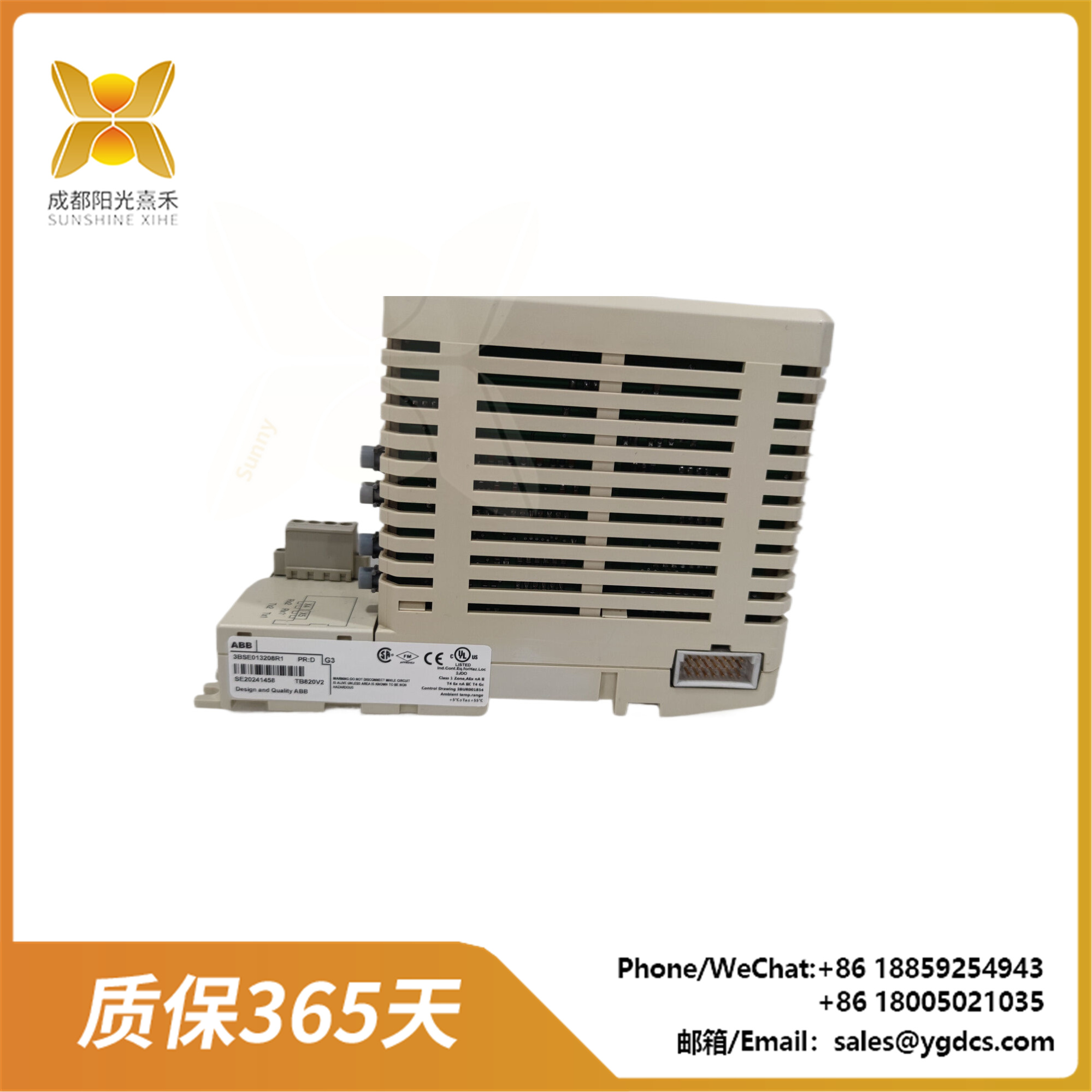

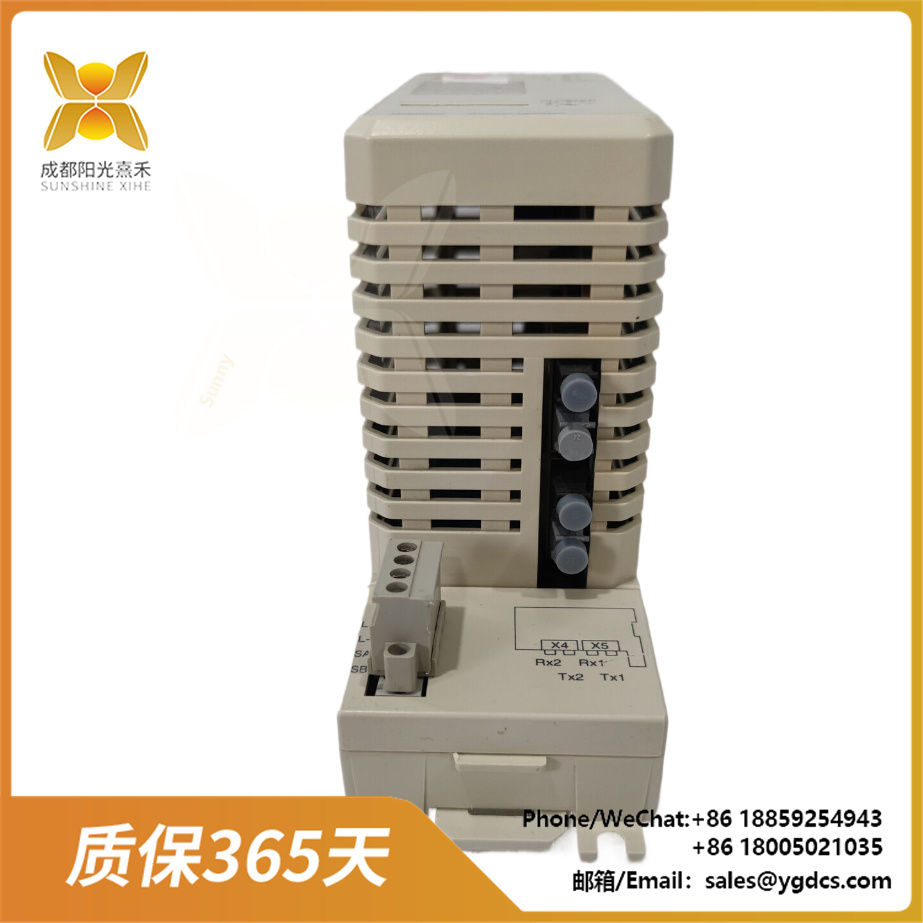

ABB TB820V2 3BSE013208R1 模塊化集群調制解調器

ABB TB820V2 3BSE013208R1 is a modular Cluster Modem, mainly used in communication solutions in the field of industrial automation.
ABB TB820V2 3BSE013208R1 是一種模塊化集群調制解調器（Cluster Modem），主要用于工業自動化領域的通信解決方案。

It supports communication via optical fiber and ModuleBus, capable of connecting up to 12 I/O modules and supporting up to 7 clusters. It is suitable for data transmission and communication management in distributed control systems (such as S800 I/O systems).
它支持通過光纖和模塊總線（ModuleBus）進行通信，能夠連接多達12個I/O模塊，并支持多達7個集群，適用于分布式控制系統（如S800 I/O系統）中的數據傳輸和通信管理。

Product function
產品功能

Communication capability: This module supports optical fiber and module bus communication, enabling efficient data transmission among multiple modules in industrial automation systems.
通信能力：該模塊支持光纖和模塊總線通信，能夠?qū)崿F(xiàn)工業自動化系統中多個模塊之間的高效數據傳輸。

Scalability: It can connect multiple I/O modules, expanding the coverage of the system, and is suitable for locally distributed scenarios that require more than 12 I/O modules.
擴展性：它能夠連接多個I/O模塊，擴展系統的覆蓋范圍，適用于需要超過12個I/O模塊的局部分布場景。

Reliability: Remote control is achieved through optical fiber communication, enhancing the system’s anti-interference capability and reliability.
可靠性：通過光纖通信實現遠程控制，提高系統的抗干擾能力和可靠性。

Integration: This module can be seamlessly integrated into ABB’s automation system, providing stable communication support.
集成性：該模塊可以無縫集成到ABB的自動化系統中，提供穩定的通信支持。

Technical parameters
技術參數

Model: ABB TB820V2 3BSE013208R1
型號：ABB TB820V2 3BSE013208R1

Type: Module Bus cluster modem
類型：模塊總線集群調制解調器

Interface: Optical fiber interface
接口：光纖接口

Communication protocol: ModuleBus
通信協議：ModuleBus

Operating temperature: 0℃ to 55℃
工作溫度：0℃~55℃

Storage temperature: -40℃ to 70℃
存儲溫度：-40℃~70℃

Protection grade: IP20
防護等級：IP20

Certifications: CE, UL, ATEX
認證：CE, UL, ATEX

Size: 16cm, 16cm, 12cm
尺寸：16cm16cm12cm

Weight: 0.8kg
重量：0.8kg

Input voltage: 24V DC (range: 19.2 to 30V)
輸入電壓：24V DC（范圍為19.2至30V）

Power consumption: 6W
功耗：6W

Output voltage: Maximum 24V, maximum current 1.4A;
輸出電壓：最大24V，最大電流1.4A；

The maximum current is 1A at 5V
5V時最大電流為1A

Application field
應用領域

ABB TB820V2 3BSE013208R1 is widely used in industrial automation, building control, energy management systems and other fields.
ABB TB820V2 3BSE013208R1 廣泛應用于工業自動化、樓宇控制、能源管理系統等領域。

It is particularly suitable for scenarios that require efficient communication and data transmission, such as
它特別適用于需要高效通信和數據傳輸?shù)膱?chǎng)景，如：

Manufacturing industry: Control of production lines, management of mechanical and robotic systems.
制造業：用于生產線的控制、機械和機器人系統的管理。

Process automation: Process monitoring for the chemical, oil and gas industries.
過程自動化：用于化工、石油和天然氣工業的過程監控。

Building automation: Management of heating, cooling and lighting systems in commercial buildings.
樓宇自動化：用于商業樓宇的供暖、制冷和照明系統的管理。

Advantages and Characteristics
優勢與特點

Modular design: Easy to install and integrate, suitable for various industrial automation systems.
模塊化設計：易于安裝和集成，適用于各種工業自動化系統。

High reliability: It can provide consistent performance even under harsh conditions.
高可靠性：即使在苛刻的條件下也能提供一致的性能。

Flexibility: Supports a wide range of devices and can be customized for specific applications.
靈活性：支持廣泛的設備，并可以為特定的應用定制。

User-friendly configuration: Simplify the setup and configuration process and reduce installation time.
用戶友好配置：簡化設置和配置過程，減少安裝時間。

Summary
總結

ABB TB820V2 3BSE013208R1 is a powerful and stable modular cluster modem, suitable for various industrial automation fields, providing users with reliable communication solutions.
ABB TB820V2 3BSE013208R1 是一款功能強大、性能穩定的模塊化集群調制解調器，適用于各種工業自動化領域，為用戶提供可靠的通信解決方案。
