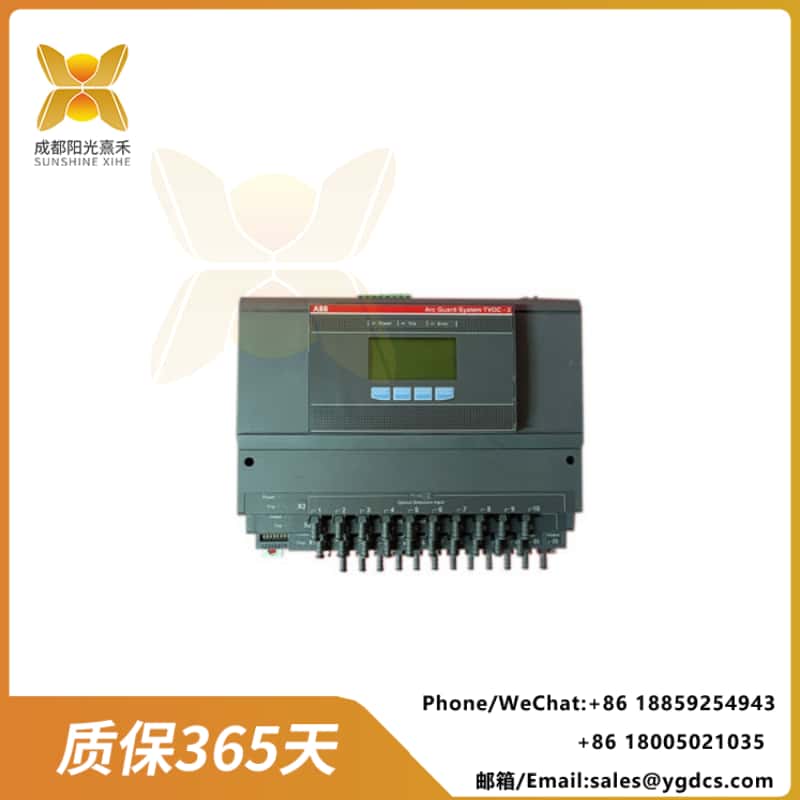

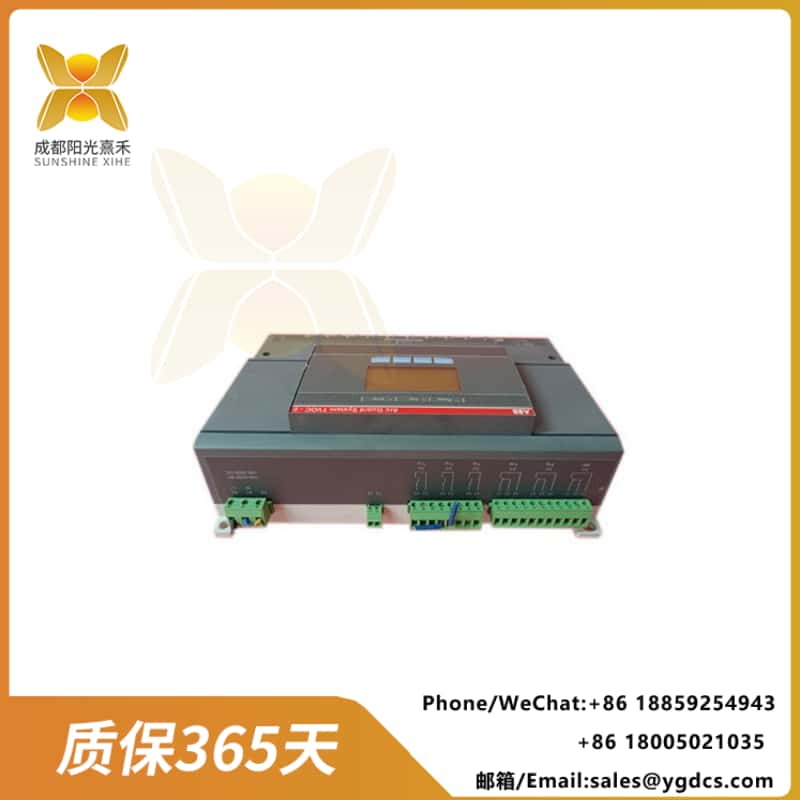

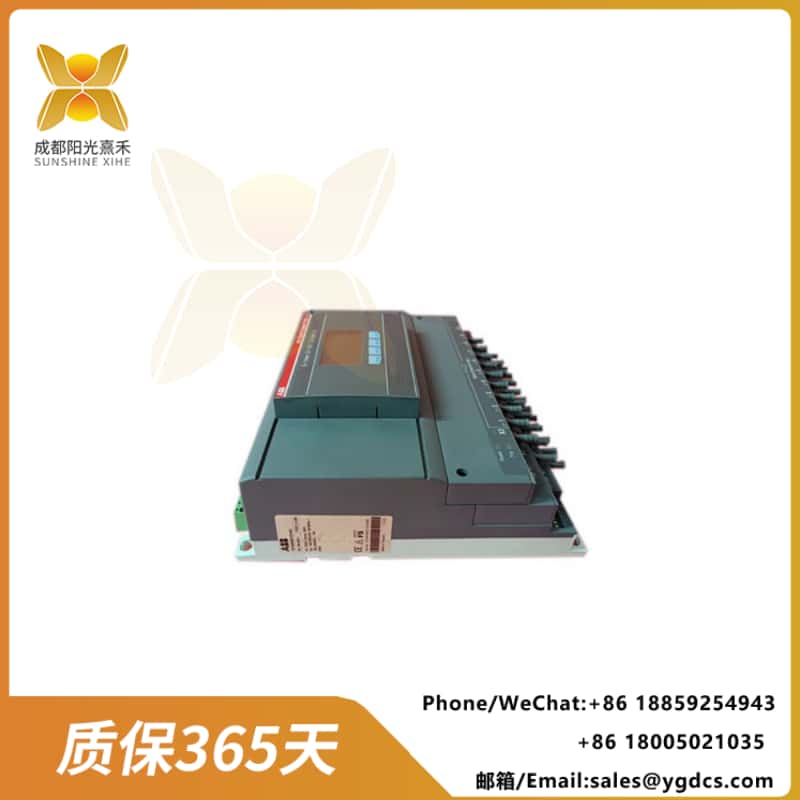

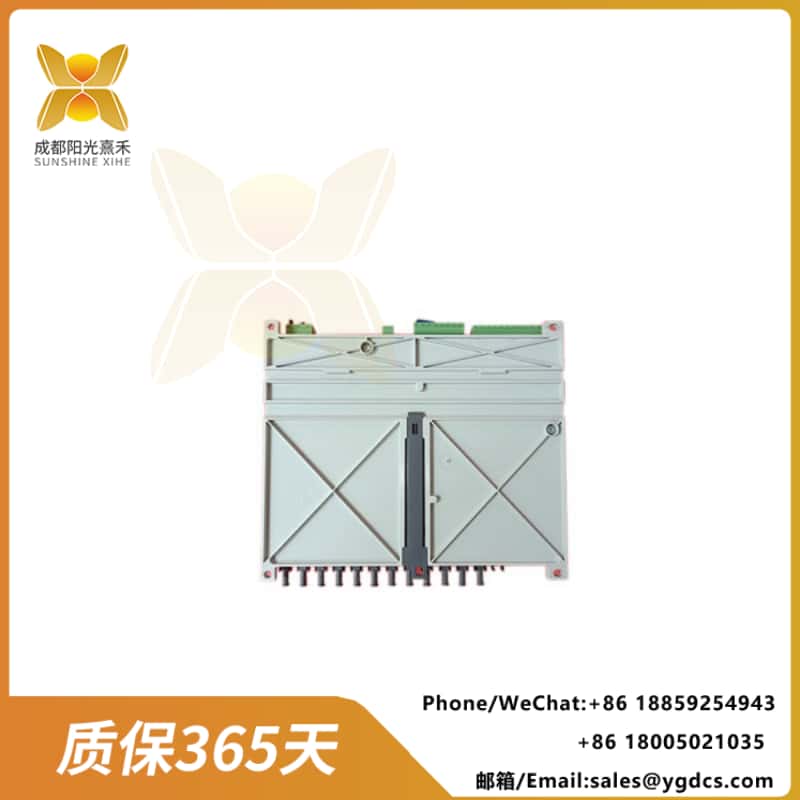

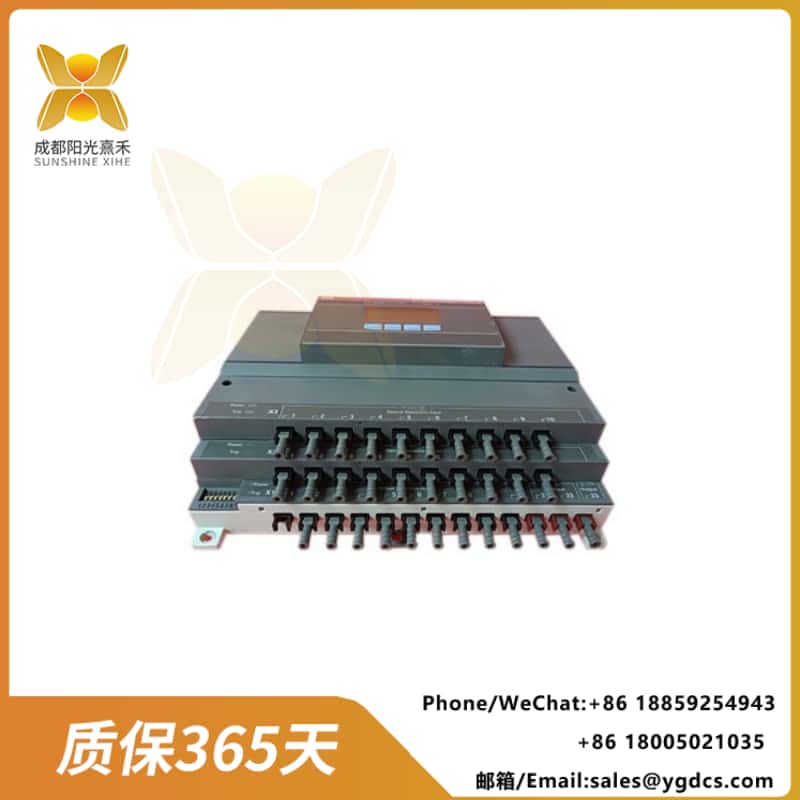

ABB TVOC-2-240 | 1SFA664001R1001 | 電弧監視器

ABB TVOC-2-240 1SFA664001R1001 is a high-performance arc monitor produced by ABB, specifically designed for industrial automation control systems. It is used to detect and record arc faults to enhance electrical safety.
ABB TVOC-2-240 1SFA664001R1001 是一款由 ABB 公司生產的高性能電弧監視器，專為工業自動化控制系統設計，用于檢測和記錄電弧故障，以增強電氣安全。

This device helps protect key equipment such as distribution cabinets, motors, data center equipment and industrial production lines from arc faults by monitoring the arc status in the power system in real time.
該設備通過實時監測電力系統中的電弧狀態，幫助保護配電柜、電機、數據中心設備以及工業生產線等關鍵設備免受電弧故障的損害。

Product function
產品功能

Arc fault detection: This device can monitor the arc status in the power system in real time and automatically cut off the power supply or activate the protection device when an arc fault is detected to prevent the fault from expanding and causing more serious consequences.
電弧故障檢測：該設備能夠?qū)崟r監測電力系統中的電弧狀態，并在檢測到電弧故障時自動切斷電源或啟動保護裝置，以防止故障擴大并造成更嚴重的后果。

Rapid response: This device features a millisecond-level response time, enabling it to promptly issue an alarm signal at the initial stage of an arc fault and take corresponding protective measures to prevent equipment damage, casualties, and production disruptions.
快速響應：該設備具有毫秒級的響應時間，能夠在電弧故障發生初期迅速發出報警信號，并采取相應的保護措施，以防止設備損壞、人員傷亡和生產中斷。

Programmable control: This device supports flexible configuration, allowing users to customize Settings according to the needs of different electrical systems.
可編程控制：該設備支持靈活的配置，用戶可以根據不同電氣系統的需要進行定制化設置。

Multiple protection functions: In addition to arc fault detection, this device also offers multiple protection functions such as overcurrent protection, ground fault protection, and interphase short circuit protection.
多重保護功能：除了電弧故障檢測外，該設備還提供過流保護、接地故障保護、相間短路保護等多重保護功能。

Easy to install and maintain: This device is compactly designed for easy installation and maintenance, while also offering a convenient calibration function.
易于安裝和維護：該設備設計緊湊，便于安裝和維護，同時提供方便的校準功能。

Technical parameters
技術參數

Voltage: 240V AC/DC
電壓：240V AC/DC

Frequency: 50/60 Hz
頻率：50/60 Hz

Current range: 0-20 A
電流范圍：0-20 A

Tripping time: Less than 1 millisecond
跳閘時間：小于1毫秒

Communication protocol: Modbus RTU
通信協議：Modbus RTU

Dimensions: 51mm x 34mm x 22mm
尺寸：51mm x 34mm x 22mm

Weight: Approximately 520g
重量：約520g

Operating temperature range: -25℃ to +70℃
工作溫度范圍：-25℃至+70℃

Protection grade: IP20
防護等級：IP20

Output signals: relay output, digital signal output, etc
輸出信號：繼電器輸出、數字信號輸出等

Application field
應用領域

This equipment is widely used in electrical safety protection in industrial automation control systems, suitable for power distribution systems, motor protection, transformer protection, etc. It is particularly widely applied in power stations, hydropower stations, wind power generation, steel mills, cement plants, petroleum and chemical enterprises, as well as electrical systems of buildings.
該設備廣泛應用于工業自動化控制系統中的電氣安全保護，適用于配電系統、電機保護、變壓器保護等，尤其在發電站、水電站、風力發電、鋼鐵廠、水泥廠、石油和化工企業以及建筑物電氣系統等領域有廣泛應用。

Summary
總結

ABB TVOC-2-240 1SFA664001R1001 is a high-performance and highly reliable arc monitor, specifically designed for industrial electrical systems to monitor arc faults in real time and provide rapid response and protection.
ABB TVOC-2-240 1SFA664001R1001 是一款高性能、高可靠性的電弧監視器，專為工業電氣系統設計，用于實時監測電弧故障并提供快速響應和保護。

Its technical parameters and functions make it an indispensable part of industrial automation control systems.
其技術參數和功能使其成為工業自動化控制系統中不可或缺的一部分。
