ABB VIPA972-0DP01 | 工業自動化連接器

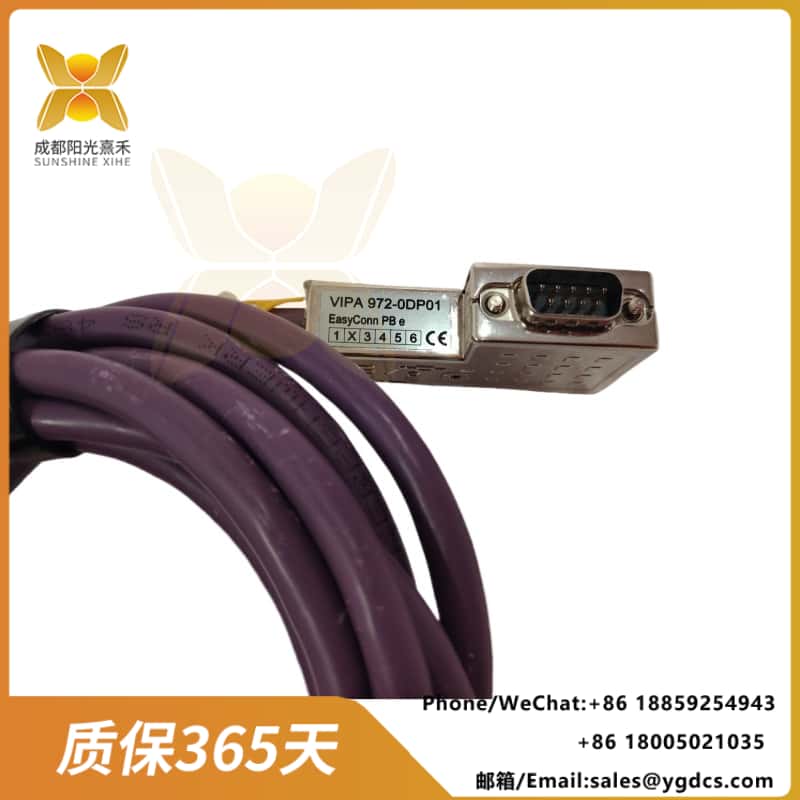

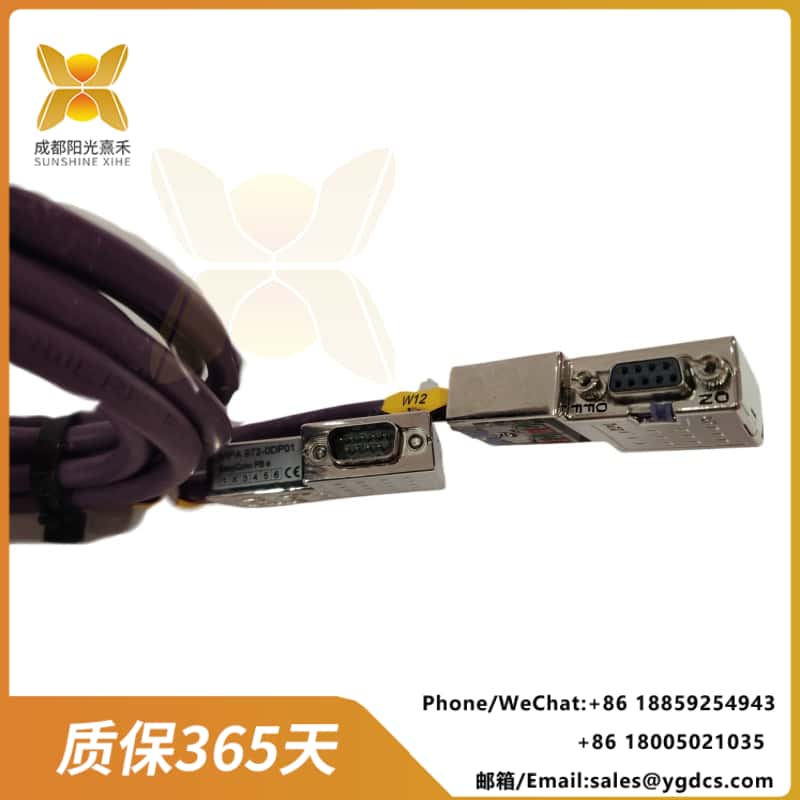

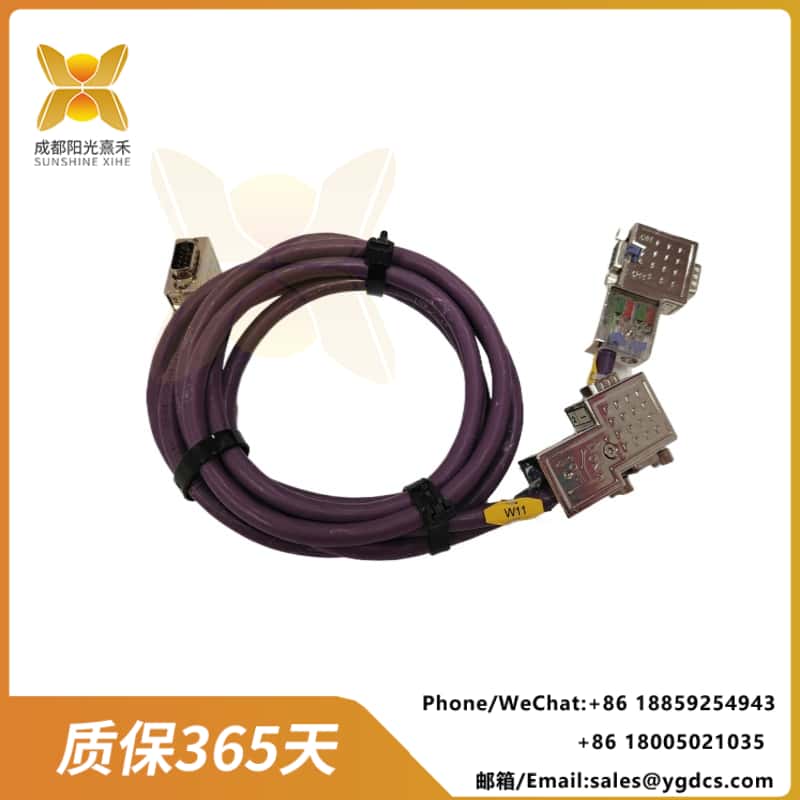

VIPA 972-0DP01 is an industrial automation connector produced by VIPA GmbH in Germany, mainly used for PROFIBUS-DP network connections in industrial automation systems.
VIPA 972-0DP01 是一款由德國VIPA（VIPA GmbH）生產的工業自動化連接器，主要用于工業自動化系統中的 PROFIBUS-DP 網絡連接。

It is a high-performance digital bus connector, widely used in industrial control and process automation fields.
它是一款高性能的數字式總線連接器，廣泛應用于工業控制和過程自動化領域。

Product function
產品功能

The main functions of VIPA 972-0DP01 include:
VIPA 972-0DP01 的主要功能包括：

Physical connection: Provide physical interfaces to connect PROFIBUS devices to the bus, ensuring communication between devices.
物理連接：提供物理接口，將 PROFIBUS 設備連接到總線，確保設備之間的通信。

Signal transmission: Transmit the digital signals specified by the PROFIBUS protocol to achieve communication between devices.
信號傳輸：傳輸 PROFIBUS 協議規定的數字信號，實現設備之間的通信。

Terminal resistor: Built-in switchable terminal resistor to match the topology of the PROFIBUS network, ensuring the stability and reliability of the signal.
終端電阻：內置可切換的終端電阻，用于匹配 PROFIBUS 網絡的拓?fù)浣Y(jié)構，確保信號的穩定性和可靠性。

Diagnostic function: Some models are equipped with diagnostic leds for real-time display of communication status and power failure alerts.
診斷功能：部分型號配備診斷 LED，用于實時顯示通信狀態和電源故障告警。

Easy installation: It adopts a quick plug and pull design, which is convenient for installation and maintenance.
易安裝性：采用快速插拔設計，便于安裝和維護。

Technical parameters
技術參數

The following are the detailed technical parameters of VIPA 972-0DP01:
以下是 VIPA 972-0DP01 的詳細技術參數：

Model: 972-0DP01
型號：972-0DP01

Type: PROFIBUS-DP connector/module
類型：PROFIBUS-DP 連接器/模塊

Interface type: Standard 9-pin D-SUB interface, in compliance with the PROFIBUS-DP protocol specification
接口類型：標準 9 針 D-SUB 接口，符合 PROFIBUS-DP 協議規范

Communication rate: Supports multiple rate Settings, including 9.6 kBit/s, 19.2 kBit/s, 45.45 kBit/s, 93.75 kBit/s, etc., with a maximum speed of 12 Mbps
通信速率：支持多檔速率調節，包括 9.6 kBit/s、19.2 kBit/s、45.45 kBit/s、93.75 kBit/s 等，高可達 12 Mbps

Power input: Supports wide-voltage redundant dual power supplies ranging from DC 9 to 36V, including reverse connection protection and DC 1500V isolation design
電源輸入：支持 DC 9-36V 寬電壓冗余雙電源，含反接保護和 DC 1500V 隔離設計

Protection grade: IP30, aluminum casing, supports industrial 35mm rail installation
防護等級：IP30，鋁制機殼，支持工業 35mm 導軌安裝

Anti-interference capability: The electrical interface provides 4000V lightning protection, 1.5A overcurrent protection and 600W surge protection, and has passed the EMC industrial-grade certification
抗干擾能力：電接口提供 4000V 防雷、1.5A 過流及 600W 浪涌保護，通過 EMC 工業級認證

Operating temperature range: -20°C to +60°C
工作溫度范圍：-20°C 至 +60°C

Storage temperature range: -40°C to +85°C
存儲溫度范圍：-40°C 至 +85°C

Wiring method: Plug-in connector
接線方式：插拔式連接器

Cable outlet Angle: 90° or 180°
電纜出線角度：90° 或 180°

Shell material: Metal or high-strength plastic
外殼材質：金屬或高強度塑料

Overall dimensions: 70×30×20mm
外形尺寸：70×30×20mm

Application scenarios
應用場景

VIPA 972-0DP01 is widely used in the field of industrial automation, especially in the following scenarios:
VIPA 972-0DP01 廣泛應用于工業自動化領域，特別是在以下場景中：

Industrial automation: It is used in production lines and automated equipment to achieve communication and control between different devices.
工業自動化：用于生產線和自動化設備中，實現不同設備之間的通信和控制。

Process control: Applied in industrial process control systems that require real-time data processing and feedback.
過程控制：在需要實時數據處理和反饋的工業過程控制系統中應用。

Manufacturing industry: Applicable to manufacturing industries such as automobiles, electronics, and food, it optimizes production processes and enhances production efficiency.
制造業：適用于汽車、電子、食品等制造行業，優化生產流程和提高生產效率。

Building automation: It can be used in building automation systems to achieve centralized control and management of various types of equipment.
建筑自動化：可用于樓宇自動化系統中，實現對各類設備的集中控制和管理。

Summary
總結

VIPA 972-0DP01 is a high-performance PROFIBUS-DP connector, featuring efficient data transmission capability, flexible installation methods and excellent anti-interference ability. It is suitable for a variety of industrial automation scenarios.
VIPA 972-0DP01 是一款高性能的 PROFIBUS-DP 連接器，具有高效的數據傳輸能力、靈活的安裝方式和良好的抗干擾能力，適用于多種工業自動化場景。

Its technical parameters and functions make it an indispensable part of industrial control systems.
其技術參數和功能使其成為工業控制系統中不可或缺的一部分。
