描述

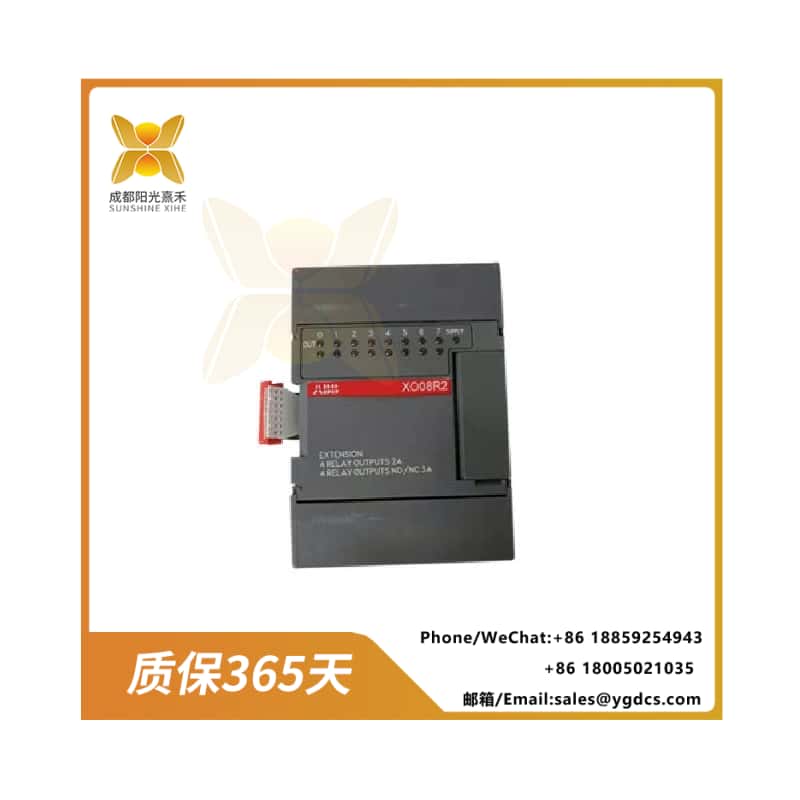

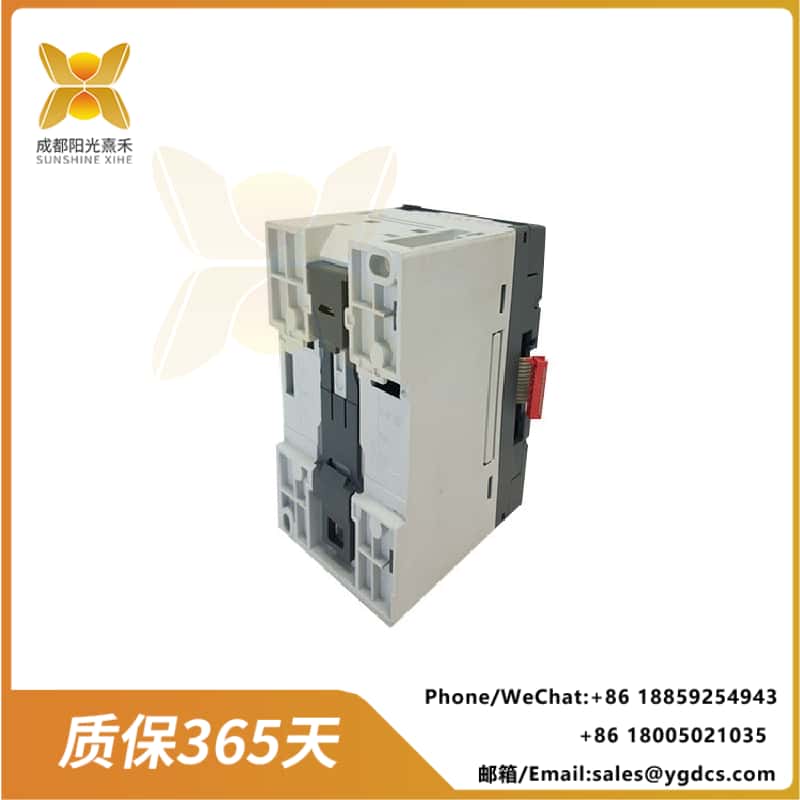

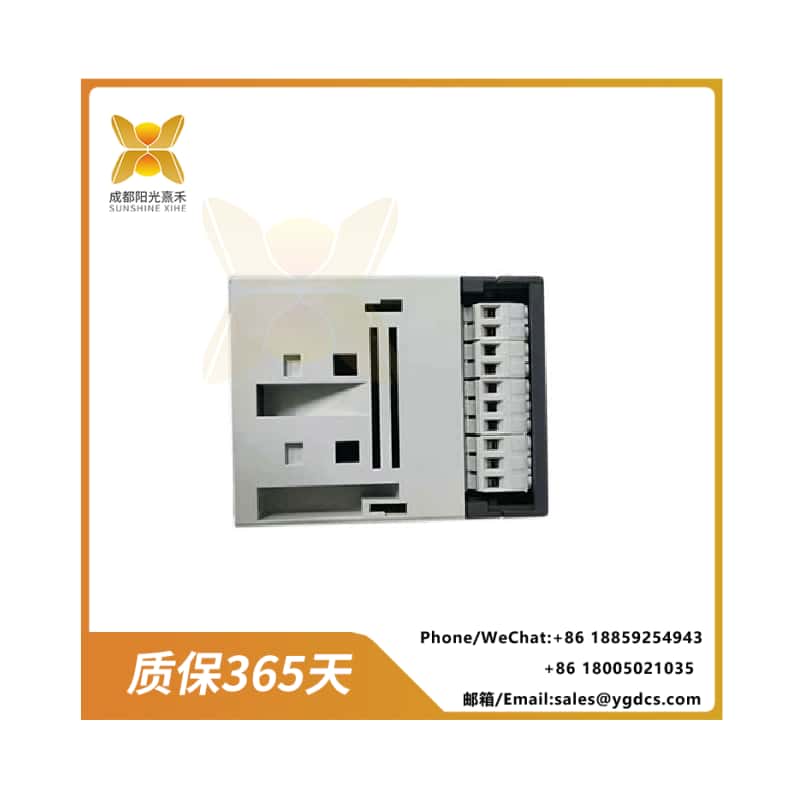

ABB XO08R2 1SBP260109R1001 繼電器輸出擴展模塊

XO08R2 1SBP260109R1001 is a high-performance relay output expansion module produced by ABB, specifically designed for industrial automation systems. It is used to expand the output capacity of PLCS and provide additional relay output points, thereby enhancing the control capability and flexibility of the system.
XO08R2 1SBP260109R1001 是一款由 ABB 公司生產的高性能繼電器輸出擴展模塊，專為工業自動化系統設計，用于擴展 PLC 的輸出能力，提供額外的繼電器輸出點，從而增強系統的控制能力和靈活性 。

Product Overview
產品概述

XO08R2 1SBP260109R1001 is part of the ABB Advant Controller 31 series and belongs to the industrial automation control module.
XO08R2 1SBP260109R1001 是 ABB Advant Controller 31 系列的一部分，屬于工業自動化控制模塊。

It can convert the digital signals of the control system into relay outputs with high current-carrying capacity, thereby achieving control of various loads.
它能夠?qū)⒖刂葡到y(tǒng)的數字信號轉換為具有較高電流承載能力的繼電器輸出，從而實現對各種負載的控制 。

This module adopts high-quality relays and electronic components, enabling it to operate stably in harsh industrial environments and ensuring the reliability of the system.
該模塊采用高品質的繼電器和電子元件，能夠在惡劣的工業環境中穩定運行，確保系統的可靠性 。

Technical parameters
技術參數

Model: XO08R2 1SBP260109R1001
型號：XO08R2 1SBP260109R1001

Brand: ABB
品牌：ABB

Series: Advant Controller 31
系列：Advant Controller 31

Output type: Relay output
輸出類型：繼電器輸出

Output quantity: 8 points
輸出數量：8 點

Contact type: Generally, it is a normally open contact
觸點類型：一般為常開觸點

Working voltage: Depending on specific circumstances (typically 24V DC or 120-230V AC)
工作電壓：根據具體情況而定（通常為 24V DC 或 120-230 V AC）

Maximum switching current: 2 A
最大開關電流：2 A

Maximum switching voltage: 250 V AC/DC
最大開關電壓：250 V AC/DC

Protection grade: IP67
保護等級：IP67

Communication protocol: Supports Modbus RTU protocol
通信協議：支持 Modbus RTU 協議

Installation method: DIN rail mounting
安裝方式：DIN 導軌安裝

Operating temperature range: -20℃ to 60℃
工作溫度范圍：-20℃ 至 60℃

Overall dimensions: approximately 250mm x 120mm x 100mm
外形尺寸：約 250mm x 120mm x 100mm

Weight: Approximately 0.5 kg
重量：約 0.5 kg

Response time: 1 ms
響應時間：1 ms

Input voltage: 24V DC
輸入電壓：24V DC

Power consumption: 5W
功耗：5 W

Safety grade: PL e/Cat 4, SIL3 (applicable to safety relay output)
安全等級：PL e/Cat 4, SIL3（適用于安全繼電器輸出）

Switching capability: 10A/250V (suitable for safety relay output)
切換能力：10A/250V（適用于安全繼電器輸出）

Product features
產品特點

High reliability: With industrial-grade design, it features high reliability and durability.
高可靠性：采用工業級設計，具有較高的可靠性和耐用性 。

Easy to configure: It can be configured through PLC software, with simple operation.
易于配置：通過 PLC 軟件進行配置，操作簡單 。

Modular design: Easy to install and maintain, suitable for use in limited Spaces.
模塊化設計：便于安裝和維護，適合在有限空間內使用 。

Compatibility with multiple PLCS: Supports multiple PLC systems, facilitating integration into existing systems.
多種 PLC 兼容：支持多種 PLC 系統，便于集成到現有系統中 。

Built-in diagnostic tools: Easier to troubleshoot.
內置診斷工具：更容易進行故障排除 。

Energy-saving operation: Reduce energy consumption and improve system efficiency.
節能操作：降低能耗，提高系統效率 。

Application field
應用領域

XO08R2 1SBP260109R1001 is widely used in industrial automation, robot control, electrical control systems, building automation and other fields.
XO08R2 1SBP260109R1001 廣泛應用于工業自動化、機器人控制、電氣控制系統、樓宇自動化等領域。

It is applicable to multiple industries such as automotive manufacturing, food and beverage, pharmaceuticals, chemicals, and power, helping users enhance production efficiency and optimize process flows.
它適用于汽車制造、食品飲料、制藥、化工、電力等多個行業，幫助用戶提高生產效率和優化工藝流程 。

Summary
總結

XO08R2 1SBP260109R1001 is a high-performance relay output expansion module, specifically designed for industrial automation, featuring high reliability, ease of use and flexibility.
XO08R2 1SBP260109R1001 是一款高性能的繼電器輸出擴展模塊，專為工業自動化設計，具有高可靠性、易用性和靈活性。

It can effectively expand the output capacity of PLC, is suitable for various industrial application scenarios, and is an important component of industrial automation systems.
它能夠有效擴展 PLC 的輸出能力，適用于多種工業應用場景，是工業自動化系統中的重要組成部分。
