描述

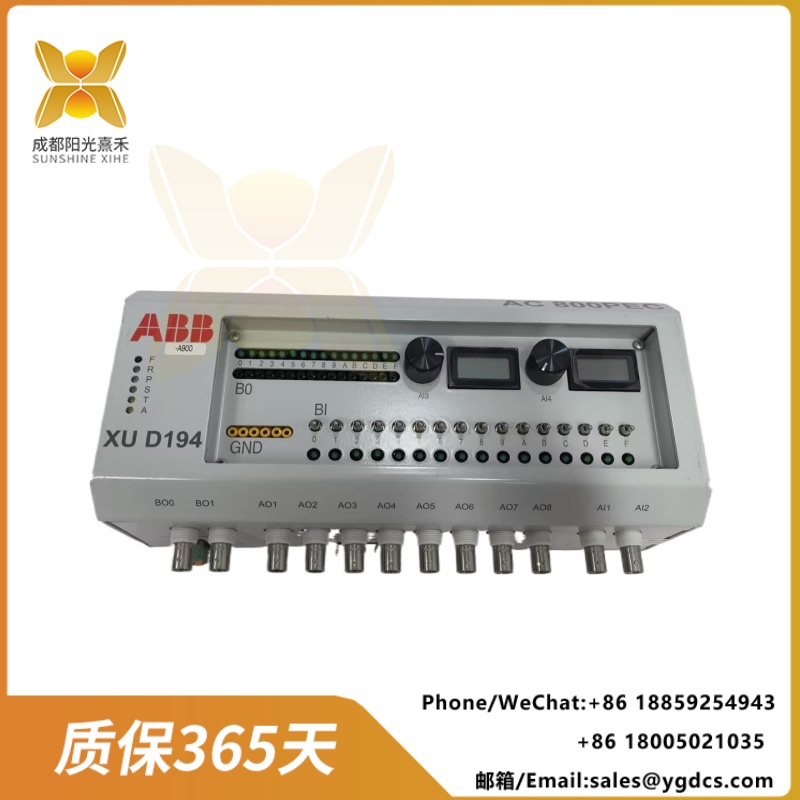

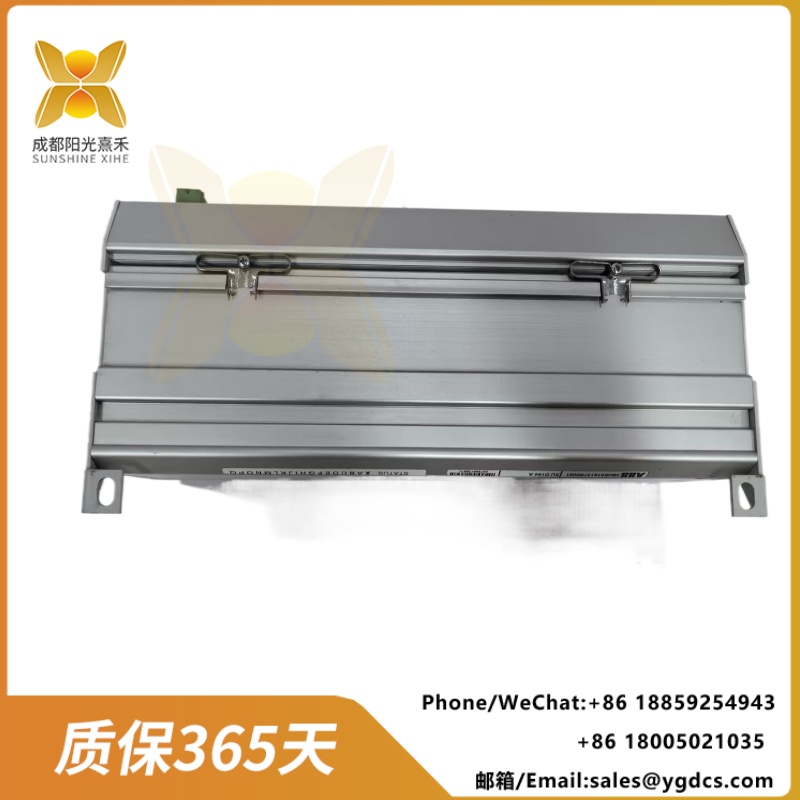

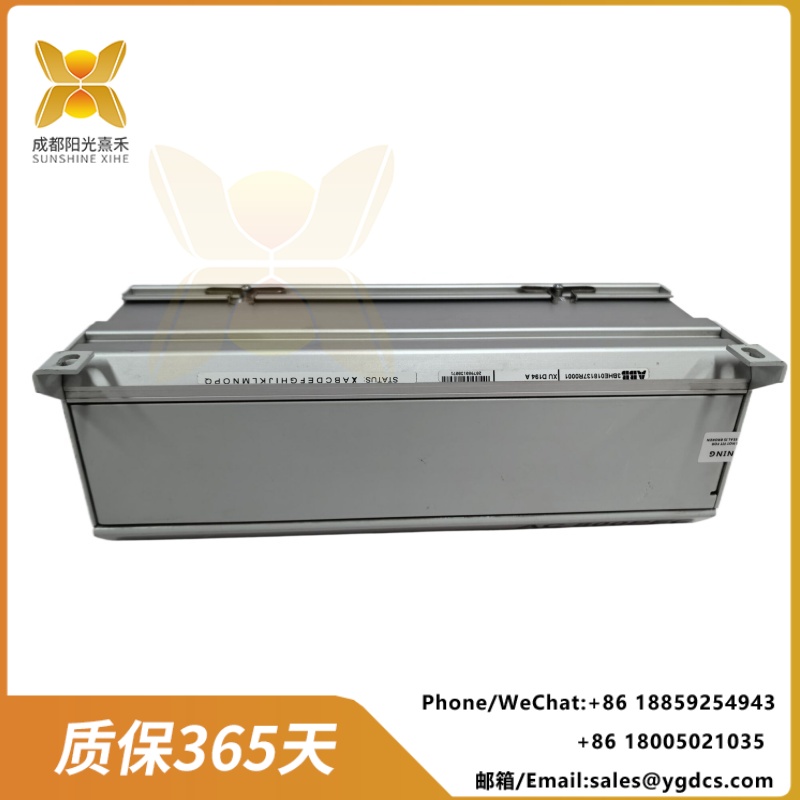

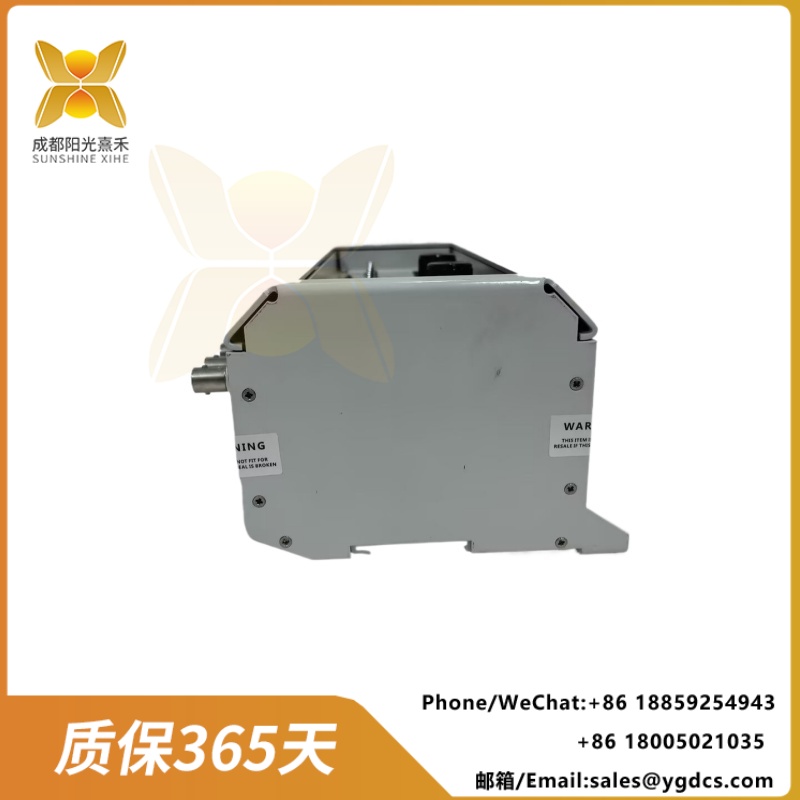

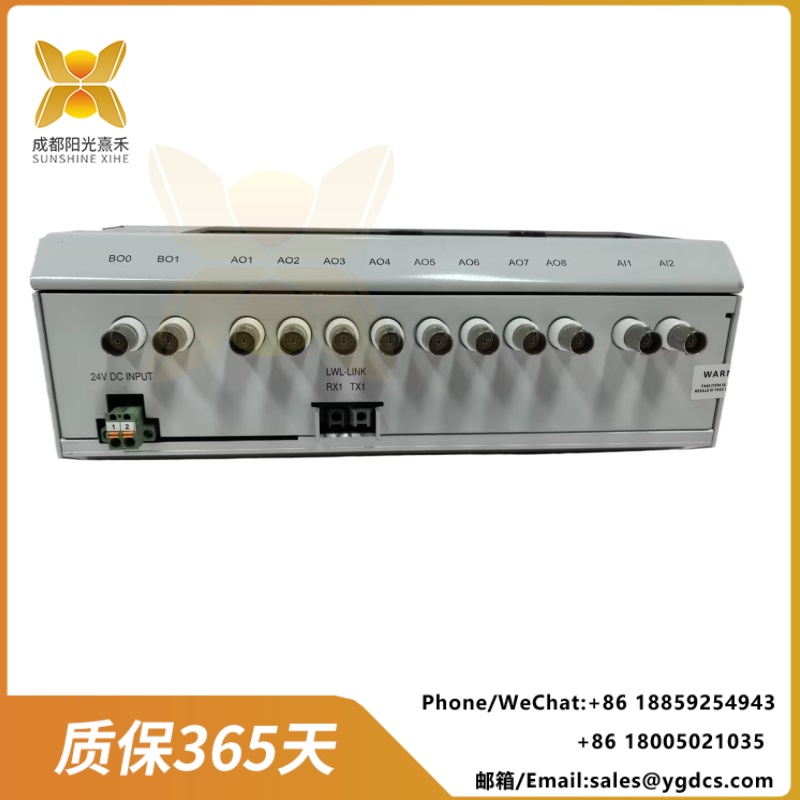

ABB XUD194 3BHE018137R0001 AC800PEC 工業控制器模塊

3BHE018137R0001 is a high-performance industrial controller module produced by ABB, belonging to the AC800PEC series, and is widely used in industrial automation and process control fields.
3BHE018137R0001 是 ABB 公司生產的高性能工業控制器模塊，屬于 AC800PEC 系列，廣泛應用于工業自動化和過程控制領域。

This module features high performance, high reliability, flexible configuration and openness, and is suitable for various industrial environments, including power, metallurgy, chemical, papermaking and food and beverage industries.
該模塊具有高性能、高可靠性、靈活配置和開放性等特點，適用于多種工業環境，包括電力、冶金、化工、造紙和食品飲料等行業。

Product function
產品功能

3BHE018137R0001 is a high-performance industrial controller module, whose main functions include:
3BHE018137R0001 是一款高性能的工業控制器模塊，其主要功能包括：

Real-time data processing: Equipped with powerful real-time processing capabilities, it can quickly respond to and process data in industrial processes, ensuring the efficient operation of the control system.
實時數據處理：具備強大的實時處理能力，能夠快速響應和處理工業過程中的數據，確?？刂葡到y(tǒng)的高效運行。

High-precision dynamic control: Supports high-precision dynamic control and is suitable for complex control tasks such as frequency converter control and motor drive control.
高精度動態控制：支持高精度的動態控制，適用于變頻器控制、電機驅動控制等復雜控制任務。

Multiple communication interfaces: Supports multiple communication protocols, such as Ethernet, PROFIBUS, CANopen, Modbus TCP, etc., facilitating seamless integration with other devices and systems.
多種通信接口：支持多種通信協議，如以太網、PROFIBUS、CANopen、Modbus TCP 等，便于與其他設備和系統進行無縫集成。

Modular design: It adopts a modular design, which is convenient for installation, maintenance and expansion. I/O modules and functional modules can be flexibly configured according to different application requirements.
模塊化設計：采用模塊化設計，便于安裝、維護和擴展，可根據不同應用需求靈活配置 I/O 模塊和功能模塊。

Redundant options: Provide redundant options to ensure the high availability and reliability of critical applications.
冗余選項：提供冗余選項，以確保關鍵應用程序的高可用性和可靠性。

Industrial-grade reliability: Featuring industrial-grade reliability and durability, it is suitable for harsh working environments.
工業級可靠性：具備工業級的可靠性和耐用性，適用于惡劣的工作環境。

Technical parameters
技術參數

The main technical parameters of 3BHE018137R0001 are as follows:
3BHE018137R0001 的主要技術參數如下：

Model: XUD194 3BHE018137R0001
型號：XUD194 3BHE018137R0001

Manufacturer: ABB
制造商：ABB

Series: AC800PEC
系列：AC800PEC

Processor: ARM Cortex-A8 or dual-core Intel i5-2500S
處理器：ARM Cortex-A8 或雙核 Intel Core i5-2500S

Memory: Supports up to 4GB ECC memory
內存：最大支持 4GB ECC 內存

Communication interfaces: Ethernet, PROFIBUS, CANopen, etc
通信接口：以太網、PROFIBUS、CANopen 等

Operating temperature range: -20°C to +60°C
工作溫度范圍：-20°C 至 +60°C

Protection grade: IP20 or higher
防護等級：IP20 或更高

Input voltage: 24 VDC
輸入電壓：24 VDC

Communication protocols: Ethernet/IP, Modbus TCP
通信協議：Ethernet/IP、Modbus TCP

Operating temperature range: -10°C to +55°C
工作溫度范圍：-10°C 至 +55°C

Size: Compact design for easy integration
尺寸：緊湊型設計，便于集成

Memory: 256 MB RAM
內存：256 MB RAM

Flash: 32MB
Flash：32 MB

Operating system: Built-in embedded Linux or Windows CE 5.0
操作系統：內置嵌入式 Linux 或 Windows CE 5.0

Network communication: 10/100 Mbps x 2, RJ45
網絡通信：10/100 Mbps x 2，RJ45

Serial communication: RS-232/422/485 x 16, software selection is supported
串口通信：RS-232/422/485 x 16，支持軟件選擇

Protection functions: Built-in 1.5kV magnetic isolation protection and 15kV ESD full-signal protection
保護功能：內置 1.5 kV 磁隔離保護和 15 kV ESD 全信號保護

Power supply: 24V DC
電源：24V DC

Weight: Approximately 4.5kg
重量：約 4.5kg

Storage temperature range: -40°C to +85°C
存儲溫度范圍：-40°C 至 +85°C

Application scenarios
應用場景

3BHE018137R0001 is widely applied in the following fields:
3BHE018137R0001 廣泛應用于以下領域：

Process control: In industries such as chemical engineering, metallurgy, and power, it is used for precise control of parameters like temperature and pressure.
過程控制：化工、冶金、電力等行業，用于對溫度、壓力等參數進行精確控制。

Power electronics: frequency converter control, motor drive control, etc.
電力電子：變頻器控制、電機驅動控制等。

Mechatronics: stepper motor control, servo motor control, etc.
機電一體化：步進電機控制、伺服電機控制等。

Food and beverage industry: Precise control of parameters such as temperature and pressure.
食品飲料行業：對溫度、壓力等參數進行精確控制。

Industrial automation: Used for factory automation and process control, it supports continuous monitoring and control.
工業自動化：用于工廠自動化和過程控制，支持連續監測和控制。

Power generation and transformer protection system: Communication modules used in generator and transformer protection systems.
發電和變壓器保護系統：用于發電機和變壓器保護系統的通信模塊。

Summary
總結

3BHE018137R0001 is a high-performance industrial controller module featuring powerful real-time processing capabilities, high-precision dynamic control, multiple communication interfaces and modular design, making it suitable for a wide range of industrial environments.
3BHE018137R0001 是一款高性能的工業控制器模塊，具有強大的實時處理能力、高精度動態控制、多種通信接口和模塊化設計，適用于多種工業環境。

Its technical parameters and application scenarios make it an ideal choice in the fields of industrial automation and process control.
其技術參數和應用場景使其成為工業自動化和過程控制領域的理想選擇。
