描述

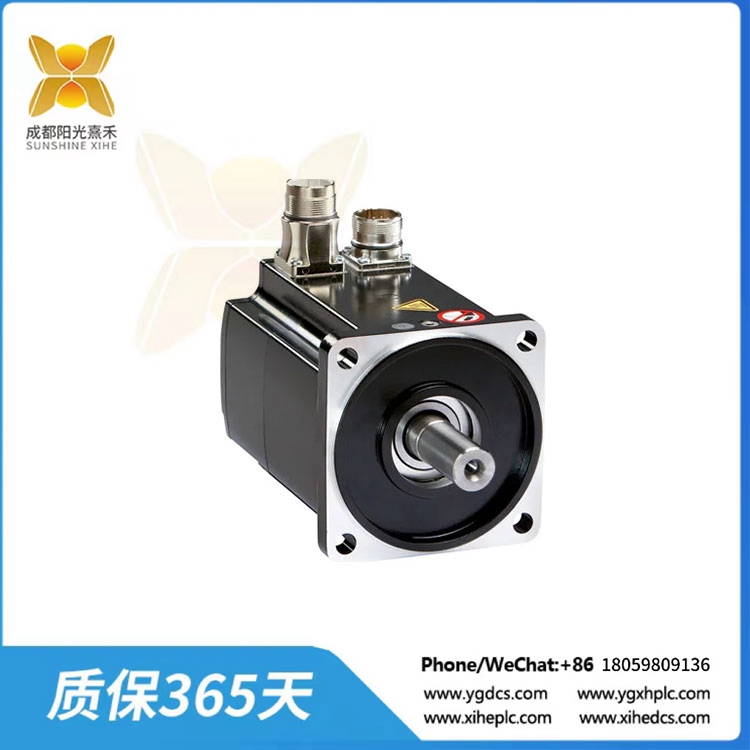

BMH1902P32F2A 運動伺服驅動器

該產品是lexum 32系列的一部分，該系列為0.15kW至7kW的機器提供運動伺服驅動器。10極伺服電機具有中等慣性矩，最大機械轉速為4000RPM，平行鍵控軸和持式制動器。它配備了SinCos Hiperface?編碼器(131072點/轉x 4096轉)，用于從伺服電機到伺服驅動器的數據自動傳輸。BMH伺服電機是中等慣量電機，它特別適用于高負載應用，并允許以更穩健的方式調整運動。為同步伺服電機，額定供電電壓為480V，連續失速電流為30.8A，連續功率為6.1W。軸的尺寸為38毫米(直徑)× 80毫米(長度)。它配有可旋轉的直角連接器，用于電氣連接。它是IP65(標準)和IP67(帶套件)額定產品。其尺寸為長310mm ×寬190mm，定心領尺寸為深4mm ×直徑180mm，安裝孔圓直徑215mm。它重32.5公斤。本產品兼容lexum 32伺服驅動器。它支持國際標準190mm法蘭安裝與自然對流冷卻系統。編碼器給出電機的絕對位置，使流量同步，并將數據從伺服電機發送到伺服驅動器，在伺服驅動器啟動時提供電機的自動識別。BMH伺服電機采用三相定子和釹鐵硼(NdFeB)磁鐵。外殼采用RAL 9005不透明黑漆保護涂層。4點軸向安裝法蘭。電纜和連接器需單獨訂購。

BMH1902P32F2A 運動伺服驅動器

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 4000RPM, parallel keyed shaft and holding brake. It is equipped with a SinCos Hiperface? encoder (131072 points/turn x 4096 turns) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 30.8A and a continuous power of 6.1W. The shaft dimensions are 38mm (Diameter) x 80mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP67 (with kit) rated product. Its dimensions are 310mm (Length) x 190mm (Width), centring collar dimensions are 4mm (Depth) x 180mm (Diameter) with 215mm circle diameter of the mounting hole. It weighs 32.5kg. This product is compatible with Lexium 32 servo drives. It supports international standard 190mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
