描述

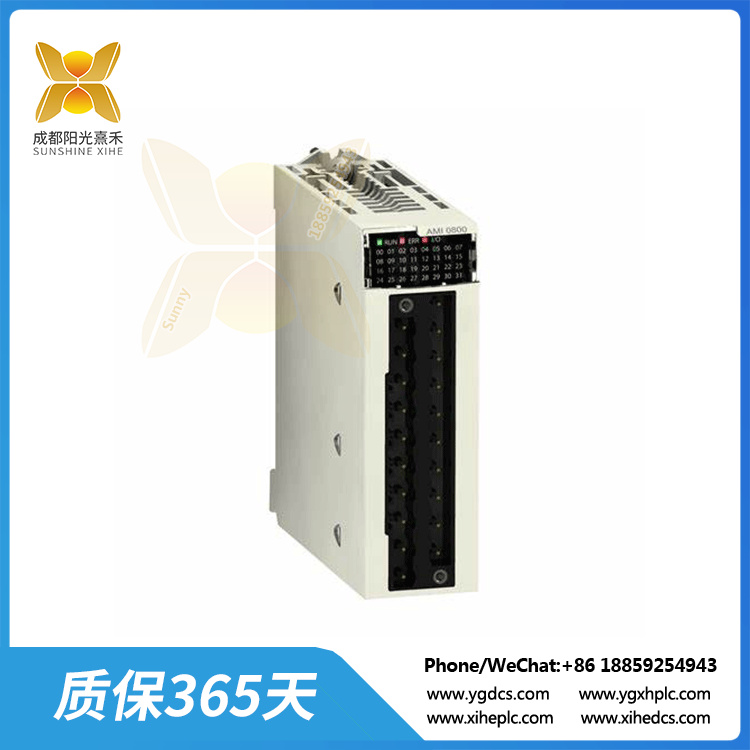

BMXAMI0410 隔離模擬量輸入模塊

BMXAMI0410是一款隔離模擬量輸入模塊，，其主要特點是在模擬量輸入模塊的ADC轉換器與邏輯和背板總線接口之間具有電隔離（又稱電鍍絕緣）。這種隔離設計有助于減少電磁干擾，提高信號傳輸?shù)姆€(wěn)定性和準確性。

BMXAMI0410在CPU的M端和測量回路的參考點Mana之間沒有電氣連接。如果測量回路參考點Mana和CPU的M端存在一個電位差Uiso，那么選用隔離模擬量模塊是必要的。通過使用等電位導線連接Mana和CPU的M端，可以確保電位差不會超過允許值。

在性能方面，BMXAMI0410通常能夠采集各種類型的模擬量信號，如電壓信號和電流信號，并具有廣泛的輸入范圍。此外，它們可能采用先進的數字隔離技術，如磁耦隔離，以實現高速數據傳輸和與MCU的高效通信。

隔離模擬量輸入模塊廣泛應用于電量隔離測控的工業現場、電力監控、醫療電子設備等領域，以及模擬量信號的隔離、調理和傳輸。BMXAMI0410對于確保信號傳輸?shù)臏?zhǔn)確性和可靠性起著重要作用，尤其在需要高精度測量和長距離信號傳輸?shù)膽?yīng)用中。

BMXAMI0410 隔離模擬量輸入模塊

The BMXAMI0410 is an isolated analog input module that features electrical isolation (also known as electroplating insulation) between the ADC converter of the analog input module and the logical and backplane bus interfaces. This isolation design helps to reduce electromagnetic interference and improve the stability and accuracy of signal transmission.

The BMXAMI0410 has no electrical connection between the M end of the CPU and the reference point Mana of the measurement loop. If there is a potential difference Uiso between the reference point Mana of the measurement loop and the M end of the CPU, then it is necessary to choose an isolated analog module. By connecting the Mana and the M end of the CPU with an equipotential wire, you can ensure that the potential difference does not exceed the allowed value.

In terms of performance, the BMXAMI0410 is generally able to collect various types of analog signals, such as voltage signals and current signals, and has a wide input range. In addition, they may employ advanced digital isolation technologies, such as magnetic coupling isolation, to enable high-speed data transfer and efficient communication with the MCU.

Isolated analog input module is widely used in industrial field of power isolation measurement and control, power monitoring, medical electronic equipment and other fields, as well as analog signal isolation, conditioning and transmission. The BMXAMI0410 plays an important role in ensuring the accuracy and reliability of signal transmission, especially in applications requiring high-precision measurements and long-distance signal transmission.
