描述

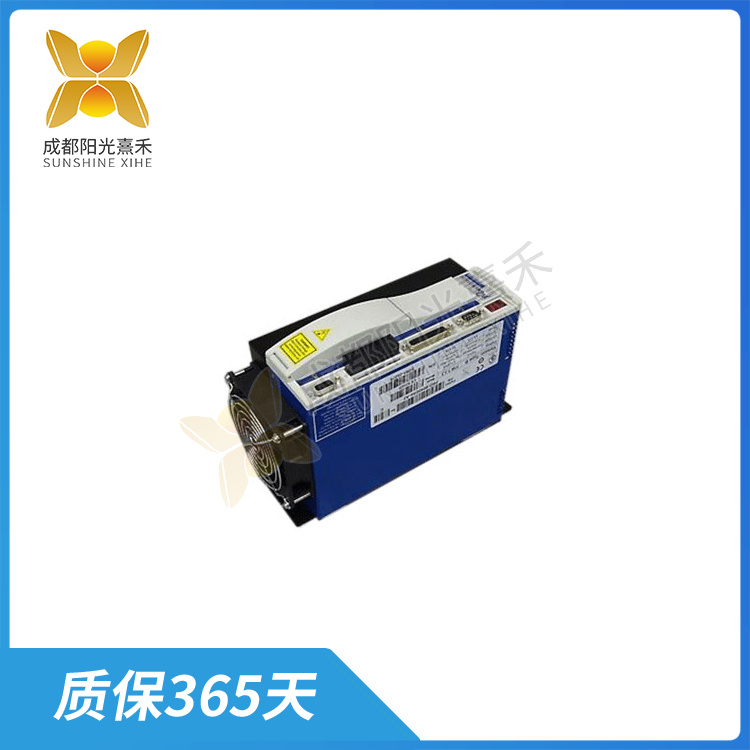

CE10560 KOLLMORGEN 伺服驅動器

CE10560是一種用來控制伺服電機的控制器，屬于伺服系統的一部分。伺服驅動器的作用類似于變頻器對于普通交流馬達的作用，主要應用于高精度的定位系統。伺服驅動器通過控制電機的電流和電壓，實現對電機軸的扭矩、速度和位置的高精度控制。

CE10560是現代運動控制的重要組成部分，被廣泛應用于工業機器人、數控加工中心等自動化設備中。伺服驅動器具有多種特點，如高速響應、高精度、高可靠性、低速大轉矩、過載能力強等。

CE10560的基本構成包括電路板、微芯片、電線和連接器。伺服驅動器與電機連接，通過控制和引導電機電線的電流來實現對電機的控制。伺服驅動器通過位置、速度和力矩三種方式對伺服電機進行控制，實現高精度的傳動系統定位。

CE10560的工作原理基于旋轉磁效應。其中一個組件具有傳統的磁鐵，而另一個組件具有繞組或“電磁鐵”。通過使電流通過繞組，可以產生磁場，與磁鐵的磁場相互作用，從而產生旋轉力矩，使電機旋轉。伺服驅動器通過調整提供的電流和電壓來控制電機的旋轉速度、位置和力矩。

CE10560的設計通常采用基于矢量控制的電流、速度、位置3閉環控制算法。速度閉環設計在伺服控制系統中起到關鍵作用，電機轉子實時速度測量精度對于改善速度環的轉速控制動靜態特性至關重要。伺服驅動器通常具有數分鐘甚至半小時內1.5倍以上的過載能力，在短時間內可以過載4～6倍而不損壞。

CE10560具有高可靠性，適用于各種環境和使用場景。伺服驅動器要求電機在從最低速到最高速范圍內都能平穩運轉，轉矩波動要小，尤其在低速時仍能保持平穩的速度而無爬行現象。

總的來說，CE10560是一種重要的運動控制設備，通過精確控制電機的電流和電壓，實現對電機的高精度控制，廣泛應用于工業自動化、機器人、數控機床等領域。伺服驅動器的發展和創新不斷提高著運動控制的精度和性能，推動著工業自動化技術的不斷進步。

CE10560 KOLLMORGEN 伺服驅動器

CE10560 is a controller used to control servo motors, which is part of the servo system. The role of the servo driver is similar to that of the frequency converter for the ordinary AC motor, which is mainly used in high-precision positioning systems. By controlling the current and voltage of the motor, the servo driver can control the torque, speed and position of the motor shaft with high precision.

CE10560 is an important part of modern motion control, which is widely used in industrial robots, CNC machining centers and other automation equipment. Servo drive has many characteristics, such as high-speed response, high precision, high reliability, low speed, high torque, strong overload capacity.

The basic components of the CE10560 include a circuit board, microchip, wires and connectors. The servo driver is connected to the motor to control the motor by controlling and directing the current of the motor wires. The servo drive can control the servo motor by three ways: position, speed and torque, and realize high-precision positioning of the transmission system.

The CE10560 works on the basis of the rotating magnetic effect. One of the components has a conventional magnet, while the other has a winding or “electromagnet.” By passing an electric current through the winding, a magnetic field can be generated, which interacts with the magnetic field of the magnet, resulting in a rotating torque that causes the motor to rotate. The servo driver controls the rotation speed, position and torque of the motor by adjusting the supplied current and voltage.

The design of CE10560 usually adopts the current, speed, position 3 closed-loop control algorithm based on vector control. Speed closed-loop design plays a key role in servo control system, and the real-time speed measurement accuracy of motor rotor is very important to improve the dynamic and static characteristics of speed control of speed loop. Servo drives usually have an overload capacity of more than 1.5 times in a few minutes or even half an hour, and can be overloaded 4 to 6 times in a short period of time without damage.

The CE10560 has high reliability and is suitable for a variety of environments and usage scenarios. Servo drives require the motor to operate smoothly from the lowest speed to the highest speed range, with small torque fluctuations, especially at low speeds, but still able to maintain a stable speed without crawling.

In general, CE10560 is an important motion control equipment, by precisely controlling the current and voltage of the motor, to achieve high-precision control of the motor, widely used in industrial automation, robotics, CNC machine tools and other fields. The development and innovation of servo drivers continue to improve the accuracy and performance of motion control, and promote the continuous progress of industrial automation technology.
