描述

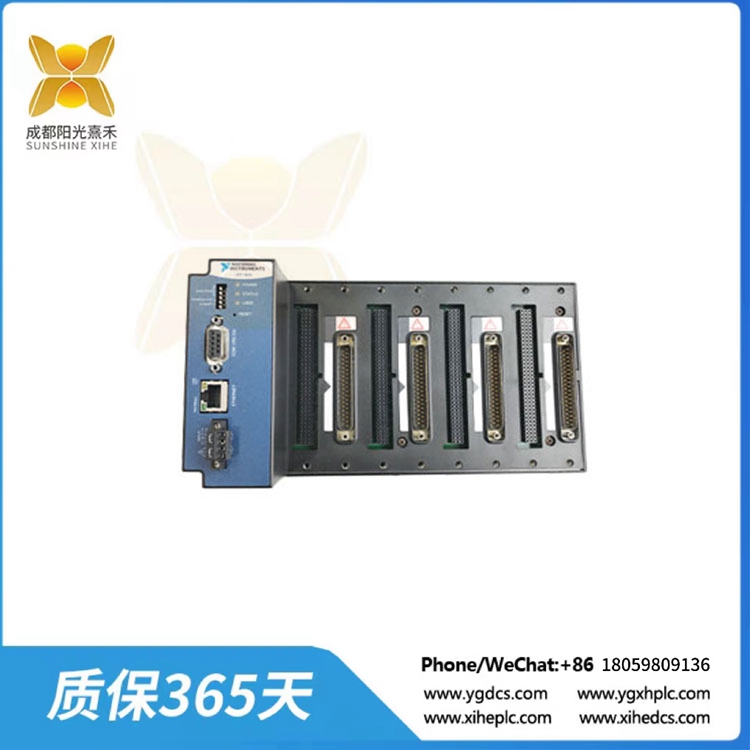

CFP-1804 以太網/串行背板，用于緊湊型FieldPoint

美國國家儀器公司cFP-1804以太網/串行背板緊湊型FieldPoint

NI cFP-1804以太網/串行背板(部件編號:779490-01)可安裝在面板上或普通的19英寸機架上。在使用這些安裝程序之前，用戶應該從模型的背面寫下序列號。重要的是要記住，如果用戶使用UL認可的I/O模塊和緊湊型FieldPoint系統，那么他們必須將完整的系統安裝在適當?shù)念~定，UL列出的NEMA或IP機箱中。為了保證最高的冷卻效率，用戶應該安裝緊湊的FieldPoint系統，使I/O模塊通風口位于頂部和底部。設備的通信速率有10mbps、100mbps和自協商速率。

4槽位cFP-1804背板能夠?qū)ompact FieldPoint I/O模塊連接到高速以太網網絡或RS-232串行端口(可以使用9針D-SUB男對女直連電纜連接)。要在以太網或串行網絡上使用該設備，必須首先使用測量與自動化資源管理器(MAX)工具進行配置。為了將I/O模塊連接到輸入信號或外部負載，用戶必須為背板上的每個I/O型號安裝cFP-CB-x連接器塊或其他連接附件。用戶可以利用每個I/O模型套接字右側的連接器套接字。用戶應小心不要在給他們通電時安裝或取出連接器塊或其他連接附件。設備具有10BaseT和100BaseTX以太網接口，兼容IEEE802.3標準。

cFP-1804使用FieldPoint軟件運行，該軟件與軟件包/應用程序開發環境(ADEs)兼容，如LabVIEW, LabVIEW實時模塊，LabWindows/CVI, Measurement Studio或VI Logger。您選擇的ADE應該在FieldPoint軟件之前安裝。

用戶可以將美國國家儀器公司的cFP-1804背板連接到以太網、RS-232網絡或兩者。用戶還可以通過將至少兩個NI cFP-1804儀器連接到用戶的PC來構建基于PC的分布式I/O和控制系統。這個設備重2磅。

CFP-1804 以太網/串行背板，用于緊湊型FieldPoint

National Instruments cFP-1804 Ethernet/Serial?Backplane for Compact FieldPoint

The NI cFP-1804 Ethernet/Serial Backplane (Part Number: 779490-01) is created to be mounted on a panel or in a regular 19 inch rack. Prior to utilizing these mounting procedures, the user should write down the serial number from the back of the model. It is important to keep in mind that if the user is utilizing UL Recognized I/O modules with the Compact FieldPoint system, then they must install the complete system in an appropriately rated, UL Listed NEMA or IP enclosure. To guarantee the most cooling efficiency, the user should mount the Compact FieldPoint system so that the I/O module vents are at the top and bottom. The device has communication rates of 10 Mbps, 100 Mbps, and auto-negotiated rate.

The 4-slot cFP-1804 Backplane has the capability to link Compact FieldPoint I/O modules to a high-speed Ethernet network or an RS-232 serial port (can be linked using a 9-pin D-SUB male-to-female straight-to cable). To use the device on an Ethernet or serial network, it must first be configured with the Measurement & Automation Explorer (MAX) tool. To link I/O modules to input signals or to external loads, the user must install a cFP-CB-x Connector Block or other connectivity accessory for every I/O model on the Backplane. The user can utilize the connector socket to the right side of every I/O model socket. The user should be cautious not to install or take out connector blocks or other connectivity accessories while power is brought to them. The device has a 10BaseT and 100BaseTX Ethernet network interface, and is compatible with the IEEE802.3.

The cFP-1804 is run using the FieldPoint software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabVIEW Real-Time module, LabWindows/CVI, Measurement Studio, or VI Logger. Your ADE of choice should be installed ahead of the FieldPoint software.

The user can link the National Instruments cFP-1804 Backplane to an Ethernet network, an RS-232 network, or both. The user can additionally build a PC-based distributed I/O and control system by linking a minimum of two NI cFP-1804 instruments to the user’s PC. The device weighs 2 lbs.
