描述

CFP-AI-111 信號轉換是將模擬量信號轉換為數字信號的過程

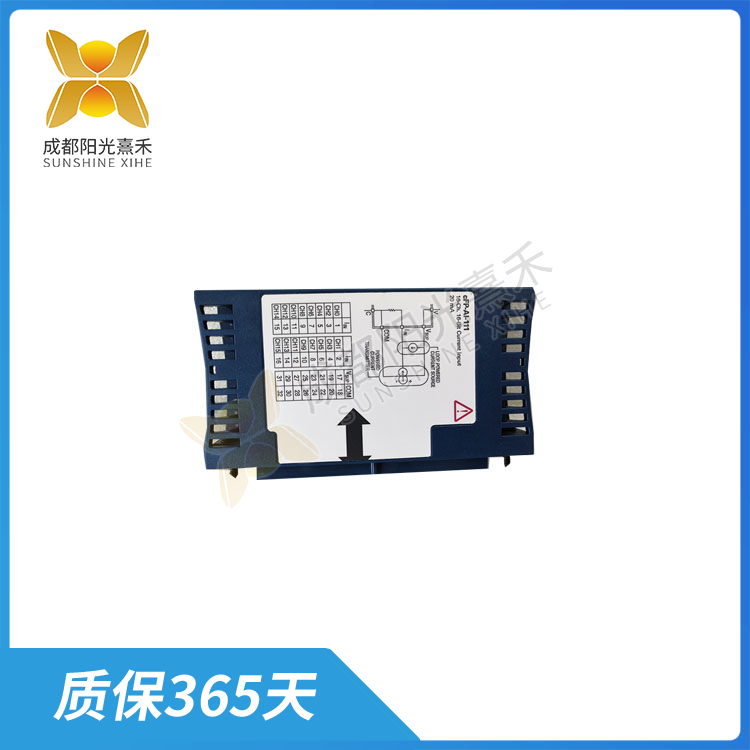

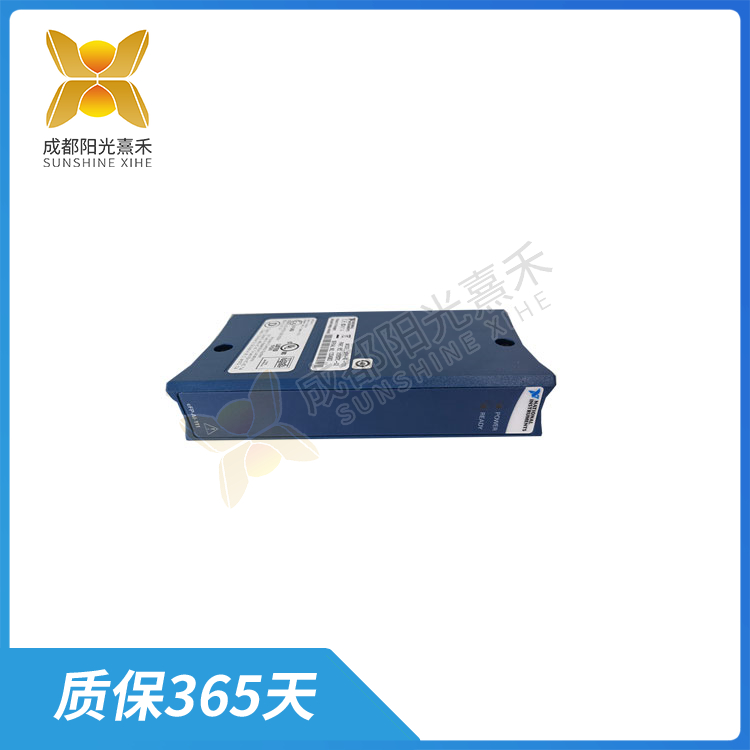

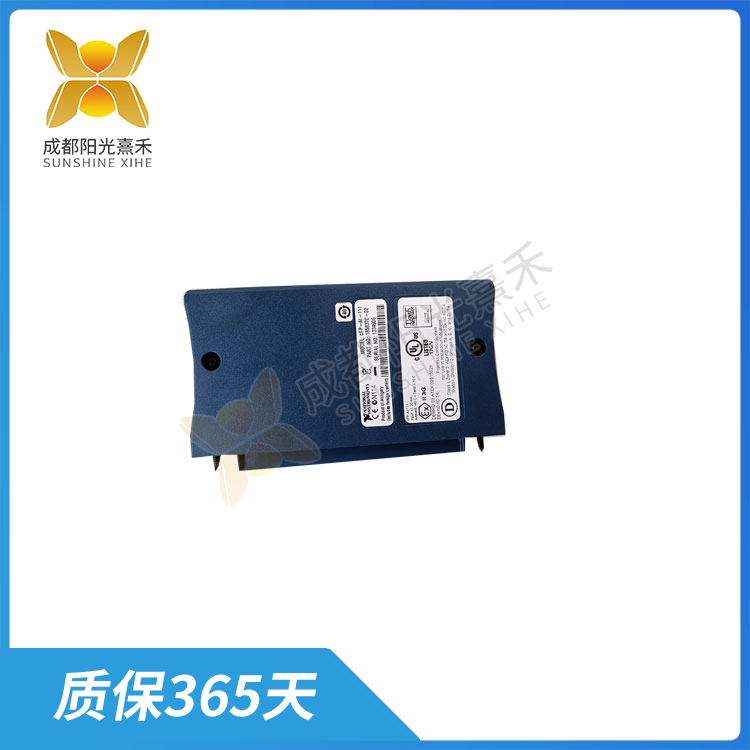

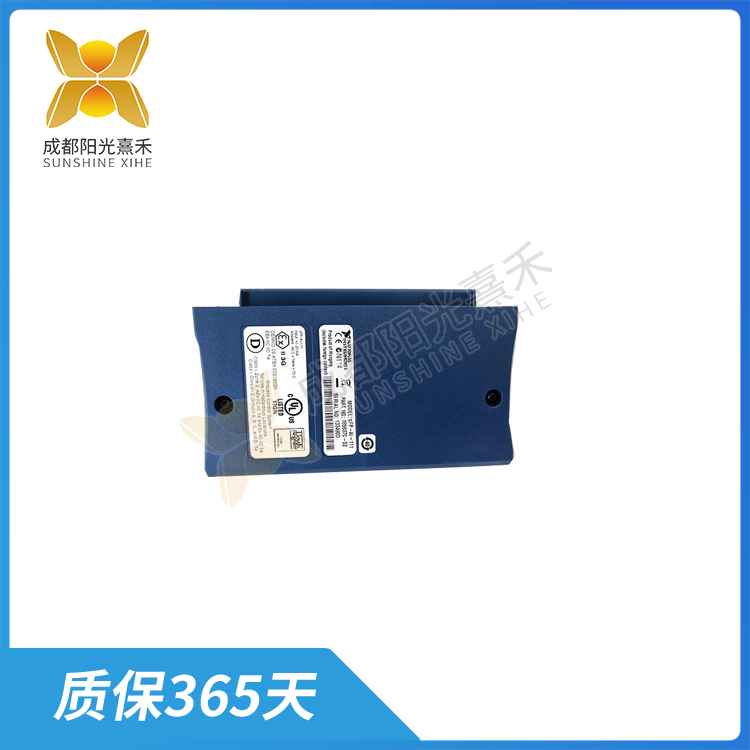

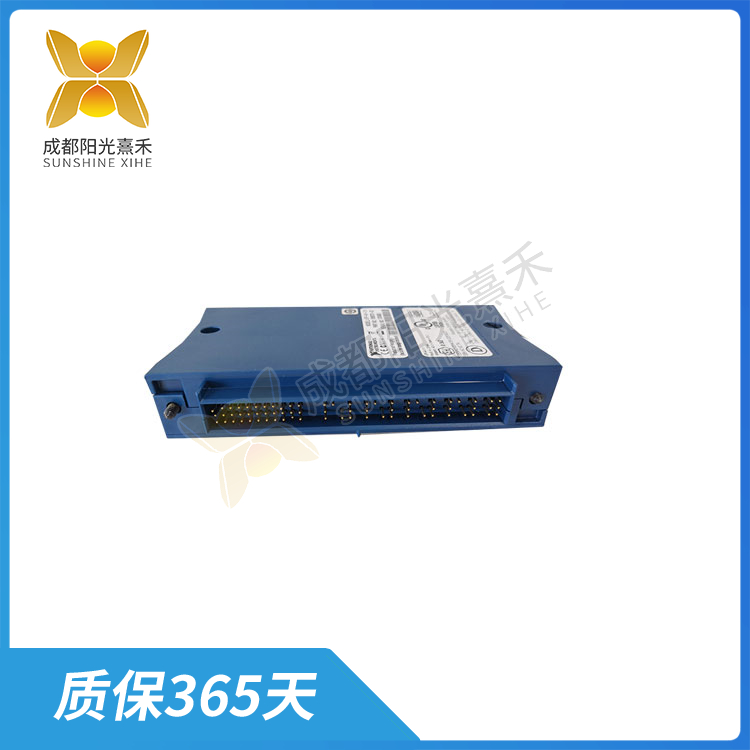

CFP-AI-111電流模擬輸入模塊是用于解決PLC（可編程邏輯控制器）、運動控制器等設備的模擬輸入問題的模塊。這種模塊可以檢測電流、電壓、溫度等模擬信號，并將這些信號轉換為設備可以處理的數字信號。

電流模擬輸入模塊通常支持一定范圍的模擬輸入，例如-10V至10V，并輸出一個標準的模擬電壓，如0-3.3V，這個電壓可以直接輸入到CPU的模擬引腳。此外，這種模塊還具備強大的抗干擾能力，能夠確保在干擾較大的環境中也能穩定工作。

在實際應用中，電流模擬輸入模塊廣泛應用于各種工業自動化、能源、交通運輸?shù)阮I(lǐng)域，為設備的監測、控制和優化提供了重要的數據支持。

電流模擬輸入模塊的工作原理可以簡要描述為信號變換、放大、轉換和采樣四個過程。

首先，信號變換是將模擬量輸入單元接收到的信號進行變換，以使其符合輸入模塊的輸入范圍。例如，如果輸入信號是0-10V的電壓信號，但輸入模塊要求的輸入范圍是4-20mA的電流信號，那么輸入單元就需要將0-10V的電壓信號轉換為4-20mA的電流信號。

接下來是信號放大，這個過程是為了增加信號的幅度，以提高信號的靈敏度。模塊通常會使用放大器電路將輸入信號放大到適合AD（模數）轉換器處理的范圍。

然后，信號轉換是將模擬量信號轉換為數字信號的過程。這一步通常涉及AD轉換器的使用，它能夠?qū)⑦B續的模擬信號分割成離散的點，并將這些點轉換為對應的數字值。這個過程是通過采樣和量化來實現的。

最后，CFP-AI-111信號采樣是將模擬信號進行連續的、離散的采樣的過程。在信號輸入單元中，采樣保持電路會在固定的時間間隔內對輸入信號進行采樣，并將其保存在保持電容中，以供AD轉換器進行轉換。采樣頻率的選擇取決于所需的信號分辨率和信號變化速度。

通過以上四個步驟，電流模擬輸入模塊將模擬信號轉換為數字信號，供PLC、運動控制器等設備進行處理和分析。

CFP-AI-111 信號轉換是將模擬量信號轉換為數字信號的過程

CFP-AI-111 Current analog input module is used to solve the analog input problem of PLC (programmable logic controller), motion controller and other devices. This module can detect analog signals such as current, voltage, and temperature, and convert these signals into digital signals that the device can process.

Current analog input modules typically support a range of analog inputs, such as -10V to 10V, and output a standard analog voltage, such as 0-3.3V, that can be input directly to the analog pins of the CPU. In addition, this module also has a strong anti-interference ability to ensure that it can work stably in a large interference environment.

In practical applications, the current analog input module is widely used in various industrial automation, energy, transportation and other fields, which provides important data support for equipment monitoring, control and optimization.

The working principle of the current analog input module can be briefly described as four processes: signal conversion, amplification, conversion and sampling.

First of all, the signal transformation is to transform the signal received by the analog input unit to make it conform to the input range of the input module. For example, if the input signal is a 0-10V voltage signal, but the input module requires an input range of 4-20mA current signals, then the input unit needs to convert the 0-10V voltage signal into a 4-20mA current signal.

Next is signal amplification, a process that increases the amplitude of the signal in order to improve the sensitivity of the signal. The module will typically use an amplifier circuit to amplify the input signal to a range suitable for processing by an AD (analog-to-digital) converter.

Then, signal conversion is the process of converting an analog signal to a digital signal. This step usually involves the use of an AD converter, which is capable of splitting a continuous analog signal into discrete points and converting those points into corresponding digital values. This process is achieved by sampling and quantification.

Finally, CFP-AI-111 signal sampling is the process of continuous and discrete sampling of analog signals. In the signal input unit, the sample-and-hold circuit samples the input signal at fixed intervals and stores it in the hold capacitor for conversion by the AD converter. The choice of sampling frequency depends on the desired signal resolution and the rate of signal change.

Through the above four steps, the current analog input module converts the analog signal into a digital signal for PLC, motion controller and other devices to process and analyze.
