描述

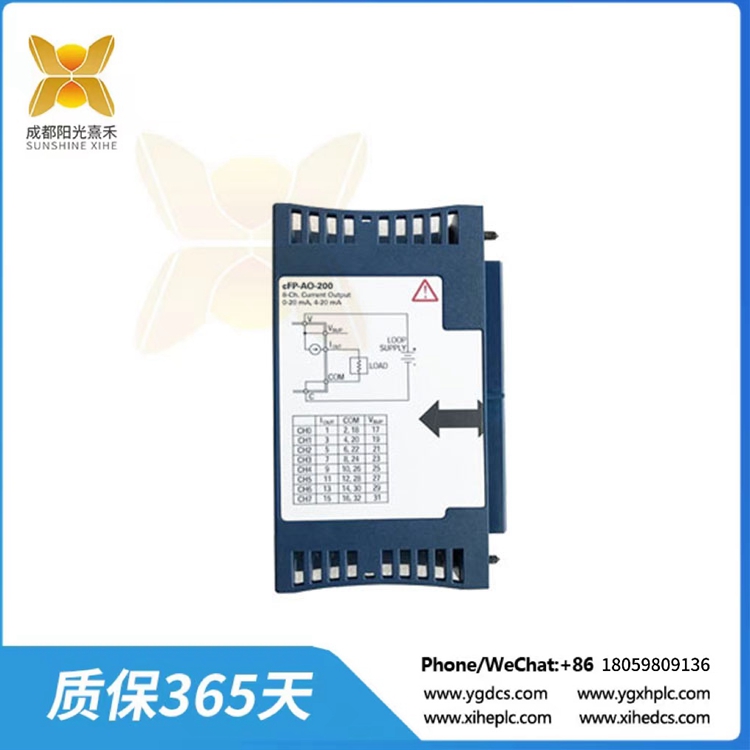

CFP-AO-200 Compact FieldPoint模擬輸出模塊

cFP-AO-200(零件號:777318-200)包含一個開路位置，用于接線和傳感器調查，并為接線錯誤提供短路保險。每個通道都可以單獨配置。為了降低建立和設置的要求，美國國家儀器公司的cFP-AO-200突出了HotPnP(裝配和播放)任務，因此它被安排編程識別和區分。使用cFP-AO-200模塊，用戶可以直接與機械執行器或被測單元連接，并獲得高精度功率。I/O模塊根據傳感器信號調整和擴展構建單元，同時還執行自我診斷以搜索模塊或布線的問題，例如打開的動量圈。NI cFP AO 200模塊的更新速率為200hz。一般來說，到控制器或PC的信息吞吐量取決于產品周期速度和系統速度。

該模塊包含8個0至20 mA或4至20 mA簡單產量輸出通道(超量程為0.5 mA)，采用12位DAC生產，更新率為200 Hz。每個產量通道包含一個檢查電路和用于開路電流環位置的LED標記。NI cFP-AO-200需要外部供電，供電電壓為5 ~ 24 VDC。它可以防止短路，并在模塊間通信總線和I/O通道之間具有2,300 Vrms瞬態過電壓保護。NI器件的最大轉換率為每秒200次更新，轉換率為每微秒0.4 mA。

緊湊的FieldPoint模塊包含一個隱式的權力傳輸傳輸，在模塊上提供不同的權力關聯。與電壓(V)和正常(C)端子相關聯的現場有線電源在內部與電源循環傳輸相關聯，該傳輸為電壓供應(VSUP)和正常(COM)提供額外的分?jǐn)喽俗?。這些終端提供了一種有用的方法來分散處理需要外部電源的小工具的容量。該設備重3.7盎司，尺寸為5.00 x 2.60 x 0.94英寸。在物理維度上。推薦使用溫度范圍為-40 ~ 70℃，存儲溫度范圍為-55 ~ 100℃。

cFP-AO-200可進行校準。雖然個別零件的建議校準周期各不相同，但大多數零件應每年或每兩年校準一次，以確保準確性。如果您需要校準cFP-AO-200, Apex Waves提供選項。我們通過第三方提供高質量的NIST認證校準，平均周轉時間為1至2周。當您向我們訂購cFP-AO-200時，您可以要求基本的(未經認證的)內部校準，該校準將在發貨前將部件校準為制造商規格。

CFP-AO-200 Compact FieldPoint模擬輸出模塊

The cFP-AO-200 (Part number: 777318-200) incorporates an open-circuit location for wiring and sensor investigating and shorting out insurance for wiring mistakes. Each channel is separately configurable. To make establishment and setup less demanding, the National Instruments cFP-AO-200 highlights HotPnP (fitting and-play) tasks, so it is consequently recognized and distinguished by the arrangement programming. With the cFP-AO-200 module, the user can straightforwardly interface with mechanical actuators or units under test and gain high-exactness power. The I/O modules adjust and scale building units to sensor signals, while also performing self-diagnostics to search for issues with the module or with the wiring, such as open momentum circles. The NI cFP AO 200 module has an update rate of 200 Hz. In general, information throughput to the controller or PC relies upon the product circle speeds and the system speeds.

This module incorporates eight 0 to 20 mA or 4 to 20 mA simple yield output channels (with an overranging of 0.5 mA), produced with a 12-bit DAC, and with an update rate of 200 Hz. Each yield channel incorporates a checking circuit and LED marker for open current circle location. ? The NI cFP-AO-200 requires an outside power supply that gives 5 to 24 VDC. It is protected against short-circuits, and has a 2,300 Vrms transient overvoltage protection between the inter-module communication bus and the I/O channels. The NI device has a maximum conversion rate of 200 updates per second, and a slew rate of 0.4 mA per microsecond.

Compact FieldPoint modules incorporate an implicit power conveyance transport that gives different power associations on the module. A field wired power supply associated with the voltage (V) and normal (C) terminals is inside associated with a power circulation transport that gives extra breakout terminals to voltage supply (VSUP) and normal (COM). These terminals give a helpful method to disperse capacity to handle gadgets that require outer power. The device weighs 3.7 oz., and measures 5.00 x 2.60 x 0.94 in. in physical dimensions. It has a recommended operating temperature range of –40 to 70 °C, and a storage temperature range of –55 to 100 °C.

The cFP-AO-200 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the cFP-AO-200 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the cFP-AO-200 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped.
