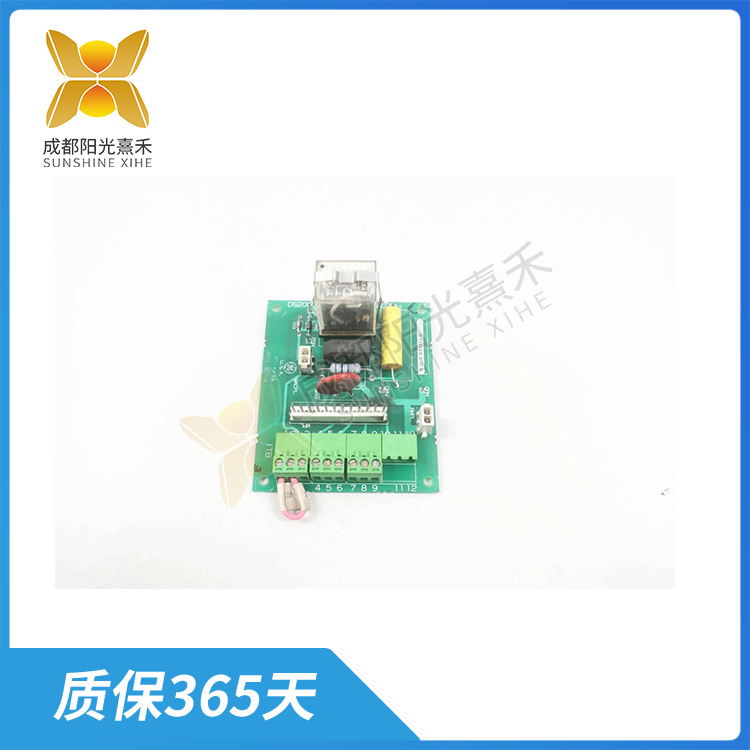

DS200CPCAG1ABB 電源連接板

DS200CPCAG1ABB是一個通用電氣（GE）的電源連接板，通常用于PLC系統。這種電源連接板在工業自動化和控制系統中扮演著關鍵角色，確保電源的穩定供應和系統的正常運行。

在PLC系統中，接地問題尤為重要，DS200CPCAG1ABB電源連接板在接地方面也有嚴格的要求。為了確保系統的穩定性和安全性，最好使用獨立的專用接地系統，并注意與其他相關設備的可靠接地。此外，不正確的接地可能導致電流問題，如邏輯錯誤、電路損壞或設備破壞，因此，PLC系統通常選用一點接地方式。

DS200CPCAG1ABB電源連接板還具有一些特定的配置功能。它配備了四個可配置跳線（JP1、JP2、WP3和WP4），這些跳線用于設置特定于應用的配置，通知驅動器緩沖電容器是否連接到電源橋與電壓反饋通道相同的點。這些跳線的具體設置取決于系統的具體需求和應用場景。

此外，DS200CPCAG1ABB電源連接板在設計和使用上需要遵循一定的步驟和原則。對于較復雜的系統，需要繪制功能圖；對于簡單的控制系統，則可以省略這一步驟。然后，需要設計梯形圖程序，并根據梯形圖編寫指令表程序。最后，對程序進行模擬調試和修改，直到滿足控制要求。

總的來說，DS200CPCAG1ABB電源連接板是工業自動化和控制系統中的重要組成部分，其正確的安裝、配置和使用對于確保系統的穩定性和安全性至關重要。在實際應用中，需要根據系統的具體需求和應用場景來選擇合適的配置和使用方法。

DS200CPCAG1ABB 電源連接板

The DS200CPCAG1ABB is a General Electric (GE) power connection board commonly used in PLC systems. These power strips play a key role in industrial automation and control systems, ensuring a stable supply of power and the normal operation of the system.

In the PLC system, the grounding problem is particularly important, and the DS200CPCAG1ABB power connector also has strict requirements in terms of grounding. In order to ensure the stability and safety of the system, it is best to use an independent dedicated grounding system, and pay attention to reliable grounding with other related equipment. In addition, incorrect grounding can lead to current problems, such as logic errors, circuit damage or equipment damage, so PLC systems usually choose a one-point grounding method.

The DS200CPCAG1ABB power strip also has some specific configuration features. It comes with four configurable jumpers (JP1, JP2, WP3, and WP4) that are used to set an application-specific configuration that informs the driver whether the buffer capacitor is connected to the same point in the power bridge as the voltage feedback channel. The specific Settings of these jumpers depend on the specific requirements and application scenarios of the system.

In addition, the DS200CPCAG1ABB power connection board needs to follow certain steps and principles in design and use. For more complex system, it is necessary to draw function diagram; For simple control systems, this step can be omitted. Then, it is necessary to design the ladder diagram program and write the instruction table program according to the ladder diagram. Finally, the program is simulated and modified until it meets the control requirements.

Overall, the DS200CPCAG1ABB power connection board is an important part of industrial automation and control systems, and its proper installation, configuration and use is essential to ensure the stability and safety of the system. In actual applications, you need to select a proper configuration and usage method based on the specific requirements and application scenarios of the system.
