DS200CTBAG1ADD 高性能控制模塊

DS200CTBAG1ADD是一款專為GE Mark V Speedtronic系統設計的接線板。Speedtronic系列是由通用電氣公司創建的，主要用于控制大型和小型燃?xì)廨啓C(jī)和蒸汽輪機系統。盡管MKV可以設計為采用單工或TMR/三重模塊化冗余架構，以滿足相連渦輪機系統的需求，但這些電路板不再由GE制造和分銷。然而，它們可以作為經過全面測試和翻新的型號通過AX Control購買。

DS200CTBAG1ADD是一款狹長的電路板，上面只有幾種類型的組件。它的每個角和長邊都有鉆孔，以便安裝硬件和其他連接。其中兩個鉆孔周圍環繞著導電材料。電路板標有識別碼，包括電路板ID號和公司徽標。此外，DS200CTBAG1ADD是一個模擬終端模塊，通常位于<R5>核心內。

該板具有多個連接器，包括兩個COREBUS連接器（JAI和JAJ）。此外，它還有兩個雙層端子排，位于一個長板邊緣，每個端子排上有多個連接器。同時，還有五個垂直針電纜連接器、兩個垂直針頭連接器和一個9針公串行連接器。

DS200CTBAG1ADD上的其他組件包括電阻網絡陣列、繼電器、晶體管、二十多個金屬氧化物變阻器（MOV）、十幾個跳線開關，以及許多電容器和電阻器。

此外，DS200CTBAG1ADD也廣泛應用于電力發電、輸電和配電等環節，實現對電力設備和系統的控制和保護。

在選擇和使用DS200CTBAG1ADD或其他電子組件時，建議從可靠的來源獲取準確的信息，并遵循制造商的指導和建議。

DS200CTBAG1ADD 高性能控制模塊

The DS200CTBAG1ADD is a patch board designed for GE Mark V Speedtronic systems. The Speedtronic family was created by General Electric to control large and small gas and steam turbine systems. Although MKV can be designed with simplex or TMR/ triple modular redundancy architecture to meet the needs of connected turbine systems, these boards are no longer manufactured and distributed by GE. However, they can be purchased through AX Control as fully tested and refurbished models.

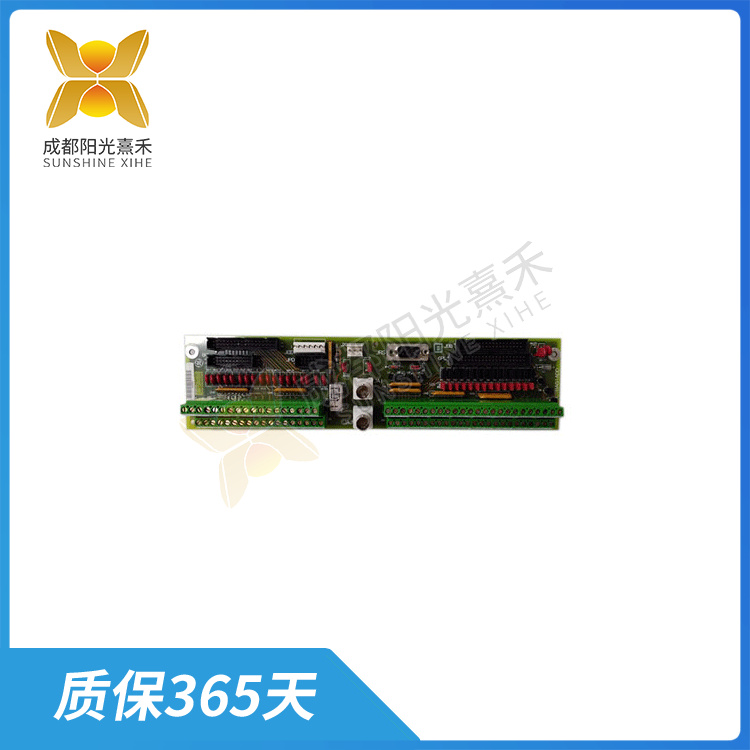

The DS200CTBAG1ADD is a long, narrow circuit board with only a few types of components on it. It has holes drilled into each corner and long side to allow for the installation of hardware and other connections. Two of the holes are surrounded by conductive material. The board is marked with an identification number, including the board ID number and the company logo. In addition, the DS200CTBAG1ADD is an analog terminal module, usually located within the <R5> core.

The board has multiple connectors, including two COREBUS connectors (JAI and JAJ). In addition, it has two double-layer terminal blocks located on the edge of a long board with multiple connectors on each terminal block. There are also five vertical needle cable connectors, two vertical needle connectors, and a 9-pin male serial connector.

Other components on the DS200CTBAG1ADD include a resistor network array, relays, transistors, more than two dozen metal oxide rheostat (MOV), a dozen jumper switches, and many capacitors and resistors.

In addition, DS200CTBAG1ADD is also widely used in power generation, transmission and distribution, etc., to achieve the control and protection of power equipment and systems.

When selecting and using the DS200CTBAG1ADD or other electronic components, it is recommended to obtain accurate information from reliable sources and follow the manufacturer’s guidance and recommendations.
