描述

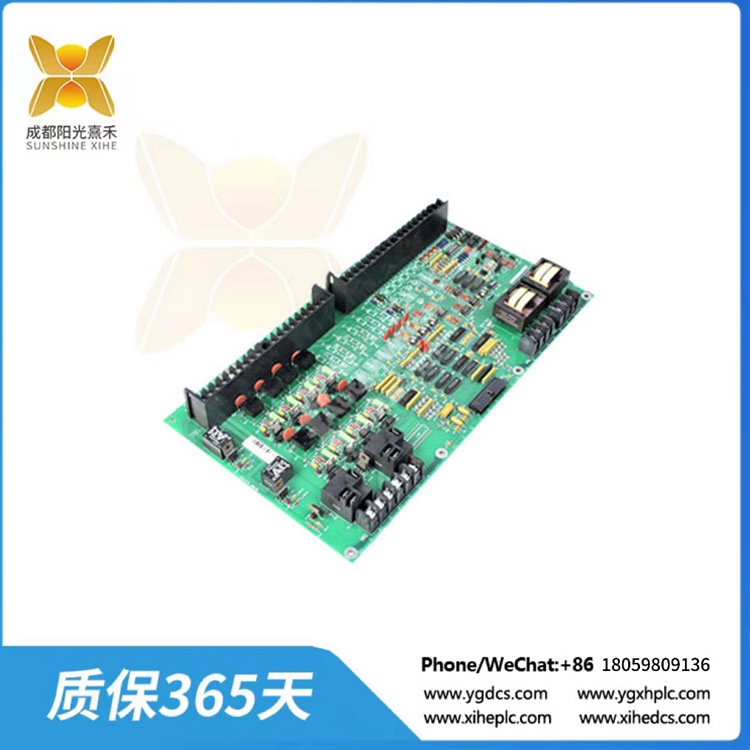

DS200DDTBG1A LCI 輔助 I/O 端子板

DS200DDTBG1A型號被稱為輔助輸入輸出端子板。這種型號最適合用作所有輔助輸入和輸出的終端板。有GEH-100219的零件說明書，詳細說明了功能、一般特性、應用數據以及保修和更換信息。

在DS200DDTBG1A型號中，有一個僅可添加的電子ID存儲器功能，其中包含所有板標識和硬件修訂信息。要訪問此內存，必須通過1線LAN，該LAN允許附加的dsc板識別系統內存在的板。

DS200DDTBG1A型號配備了一個4-20 mA電流回路輸入，允許LEM或CT輸入通道在模型內重新分配，為了執行此功能，某些跳線必須復位。該型號還配備了33個測試點，可用于信號測量。該型號共有17個led，其中一個led用于指示DS200DDTBG1A板的狀態，而其他15個led則由軟件和硬件驅動。

DS200DDTBG1A LCI 輔助 I/O 端子板

The DS200DDTBG1A model is known as an Auxiliary Input Output Terminal Board. This model is best suited to be used as a terminal board for all of the auxiliary inputs and outputs. There is a parts manual labeled GEH-100219 which details function, general features, application data as well as warranty and replacement information.

Within the DS200DDTBG1A model, there is an add-only electronic ID memory feature that contains all of the board identification and hardware revision information. To access this memory you must go through the 1-wire LAN which allows for the attached DSPC board to identify the boards that are present within the system.

The DS200DDTBG1A model is equipped with a 4-20 mA current loop input which allows for the LEM or CT input channels to be reassigned within the model, to perform this function certain jumpers must be reset. This model is also equipped with thirty-three test points which can be used for signal measurement. This model has a total of 17 LEDs, one of the LEDs on this board is used to indicate the status of the DS200DDTBG1A board while the other fifteen are software and hardware driven.
