描述

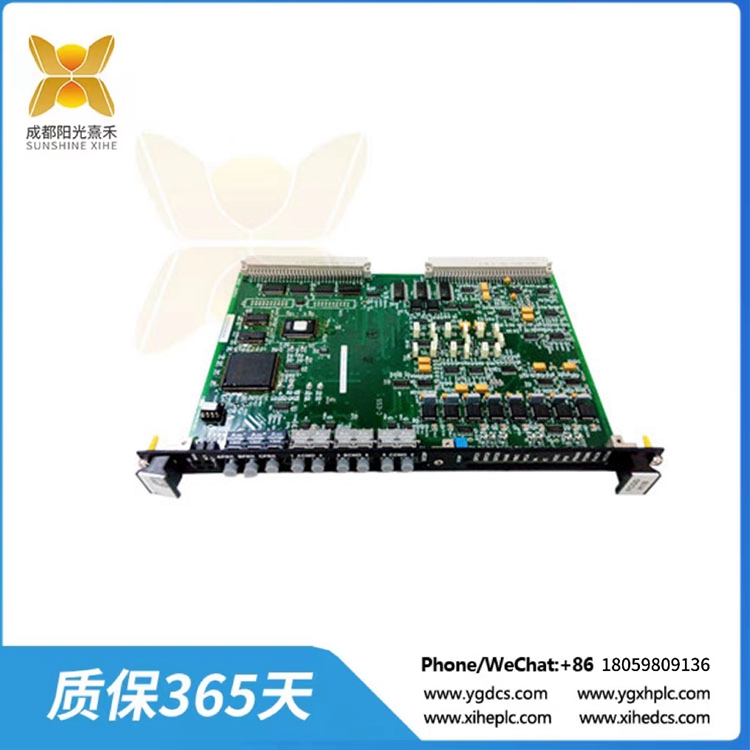

DS200FCGDH1B LCI 控制和門控保形涂層

DS200FCGDH1B是一種門分配和狀態卡(FCGD)。該卡由通用電氣為其Mark V板系列開發，可安裝在許多通用電氣品牌的驅動器中。安裝后，該卡作為六脈沖，相位控制的不可逆橋的接口系統。DSPC(數字信號處理卡)將信息中繼到該板進行破譯。由此產生有關診斷信息和系統反饋的信號。這些反饋然后發送出去使用驅動器的集成VME背板。

DS200FCGDH1B從驅動器的集成dsc中收集大量數據。電路板接收到的信號被轉換成小區門控信號。所有系統橋接支路接收這個單元門控信號，并將多路單元狀態信息返回到該卡。FCGD板也接收反饋信號并進行縮放。三塊FGPA板通過板上的光纖連接發送反饋信號。反饋包括頻率、電壓和單板狀態信息。內置IMOK LED狀態指示燈，為用戶提供系統基本狀態信息。

應滿足制造商提供的電路板安裝參數，以盡量減少設備故障或錯誤的風險。電路板的功能取決于正確地連接系統。DS200FCGDH1B的接線和安裝指南可在設備的手冊和數據表中找到。整個Mark V系列最初是由通用電氣提供技術支持的。

axcontrol知識淵博的銷售團隊隨時準備協助滿足您的所有DS200FCGDH1B需求!接收當前的價格在這個部分，或任何其他部分或維修，請聯系我們的工作人員通過電話或電子郵件。

DS200FCGDH1B LCI 控制和門控保形涂層

The DS200FCGDH1B is a gate distribution and status card (FCGD). Developed by General Electric for their Mark V board series, this card can be installed in a number of GE brand drives. When installed, this card acts as an interface system for the six pulse, phase controlled non-reversing bridge. The DSPC (digital signal processing card) relays information to this board to decipher. From this, signals regarding diagnostic information and system feedbacks are produced. These feedbacks are then sent out using the drive’s integrated VME backplane.

DS200FCGDH1B collects a large amount of data from the drive’s integrated DSPC. Signals received by the board are translated into cell gating signals. All system bridge legs receive this cell gating signals and return multiplexed cell status information to this card. Feedback signals are also received and scaled by the FCGD board. Three FGPA boards send feedback signals via fiber optic connections found on board. Included feedback are frequency, voltage, and board status information. An integrated IMOK LED status indicator provides users with basic system status.

Manufacturer provided installation parameters for the board should be met to minimize risk of device malfunction or error. Board function is dependent upon wiring the system correctly. An illustrated guide to wiring and installing DS200FCGDH1B is available in the device’s manual and datasheet. The entire Mark V series was originally provided technical support by General Electric.

AX Control’s knowledgeable sales team is ready to assist with all of your DS200FCGDH1B needs! To receive current prices on this part, or any other part or repair, please contact our staff by phone or email.
