描述

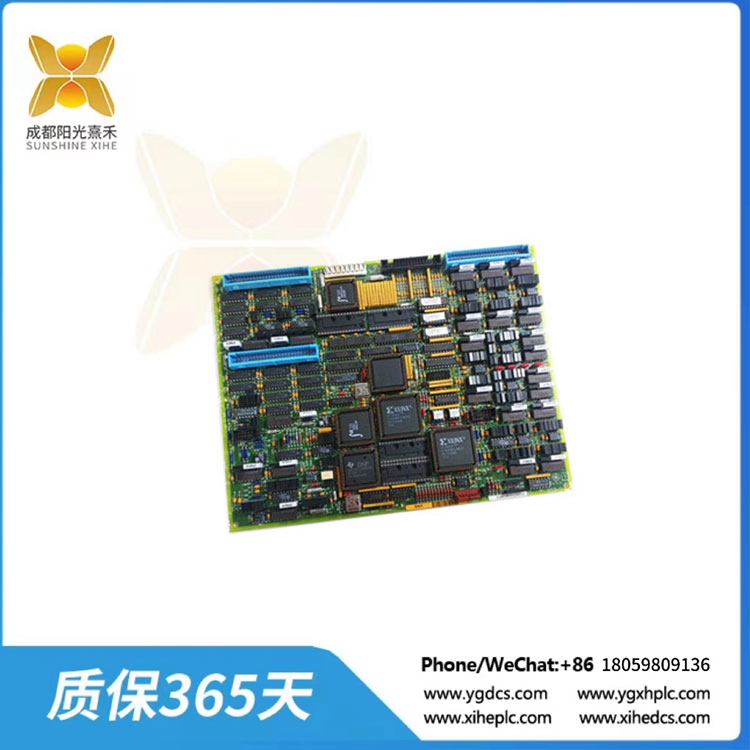

DS200TCCBG3BED 微處理器和多個PROM模塊

GE I/O TC2000模擬板DS200TCCBG3BED具有一個80196微處理器和多個PROM模塊。它還包含一個LED和2個50針連接器。從單板側面可以看到LED。50針連接器的id為JCC和JDD。電路板上還有5個34針連接器。有一些指導方針要遵循，因為多個帶狀電纜可能連接到板。在斷開帶狀電纜之前，請注意它們是如何在驅動柜內部布線的。電纜布線很重要，因為將信號電纜布線在電力電纜附近可能會對信號產生干擾。信號電纜的布放應遠離電源線，并盡量減少兩根電纜并聯的走線長度。如果電源電纜和信號電纜交叉成90度角，則干擾最小。如果電路板上有光纖電纜，應確保它們不受干擾，可以靠近電力電纜。

檢查舊板中的電纜路由的另一個原因是電纜可以阻止空氣流動，這對于保持驅動器和所有組件冷卻很重要。包括電機在內的運動部件在運行時產生熱量。電子元件也會產生熱量。如果布放不當，帶狀電纜會阻礙關鍵發熱部件上方的氣流。因此，在安裝新單板時，請檢查線纜的走線路徑，并使用相同的走線路徑。

DS200TCCBG3BED 微處理器和多個PROM模塊

The GE I/O TC2000 Analog Board DS200TCCBG3BED features one 80196 microprocessor and multiple PROM modules. It also contains one LED and 2 50-pin connectors. The LED is visible from the side view of the board. The IDs for the 50-pin connectors are JCC and JDD. There are also 5 34-pin connectors on the board. There are some guidelines to follow because of the multiple ribbon cables potentially connected to the board. Before you disconnect the ribbon cables, notice how they are routed in the interior of the drive cabinet. Cable routing is important because having signal cables routed near power cables can introduce interference to the signals. The best practice is to route signal cables far from power cables and to minimize the length of the run that the two cables are in parallel. If the power cables and the signal cables cross at 90 degree angle the interference is minimized. If the board contains fibre optic cables you should know that they are not subject to interference and can be near power cables.

Another reason to examine the cable routing in the old board is that cables can block air flow which is important for keeping the drive and all components cool. The moving parts, including the motor, generate heat while in operation. The electrical components also generate heat. The ribbon cable if not properly routed can block the air flow over the critical heat generating components. For these reasons examine the cable routing and use the same routing when you install the replacement board.
