DS200VPBLG1A VME背板

通用電氣VME背板DS200VPBLG1A是一個多層板，保持?jǐn)?shù)字和模擬電源平面分開。該模型在每個槽的每個電源連接處都有旁路電容器和配電。在電路板中，有兩個不同的部分，J2和J3部分。主板的J3部分通常用于主板正面不可用的所有外部連接。J3部分還將建立到背板的電源連接。

DS200VPBLG1A板具有診斷連接器。這個診斷連接器是一個26針的離散電纜連接器。診斷連接器的主要功能是提供到J1處理器的輸入/輸出連接。該模型還配備了幾種不同的轉速表設置，兩個主要設置是跳線和端子塊。跳線在這個模型中是至關重要的，因?yàn)樗械霓D(zhuǎn)速表信號都通過這些跳線。

在DS200VPBLG1A型號上，總共有60個測試點。這些測試點是彈簧環，提供對數字和模擬信號的訪問，這些信號是由兩個輸入電源上的執行器電流的三相以及正負直流輸出觸發的。

DS200VPBLG1A VME背板

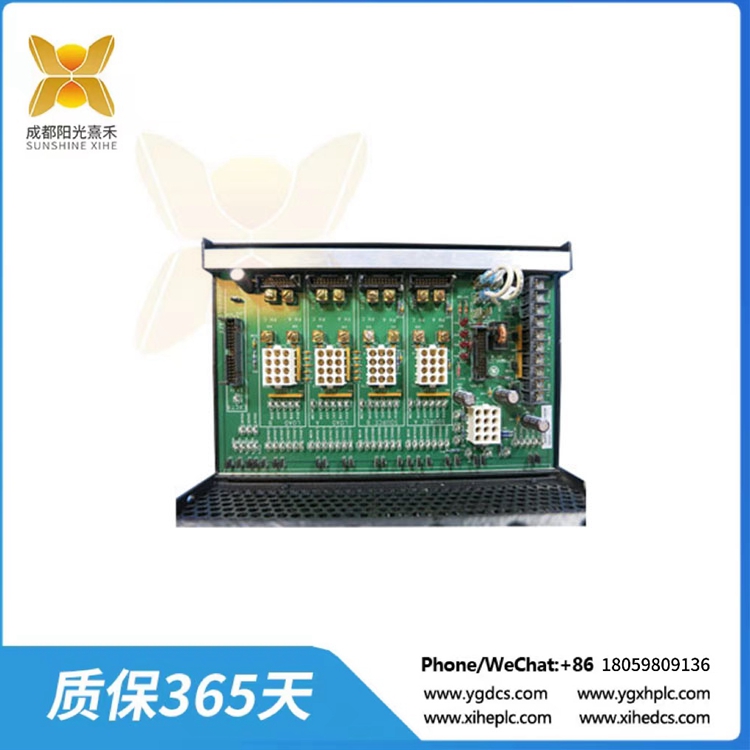

General Electric VME Backplane Board DS200VPBLG1A is a multilayer board that keeps the digital and analog power planes separate. The model also has bypass capacitors and power distribution at every power connection of each slot. Within the board, there are two different sections, the J2, and J3 sections. The J3 section of the board is typically used for all of the external connections that are not available on the board fronts. The J3 section will also establish power connections to the backplane.

The DS200VPBLG1A board has a diagnostics connector. This diagnostics connector is a twenty-six-pin discrete cable connector. The primary function of the diagnostics connector is to provide input/output connections to the J1 processor. This model also comes with several different tachometer settings, the two main settings being the jumpers and terminal block. Jumpers are vital in this model as all of the tachometer signals are passed through these jumpers.

On the DS200VPBLG1A model, there are a total of sixty test points. These test points are spring-loop which provide access to the digital and analog signals which are triggered by the three phases of actuator current on the two input power sources as well as the positive and negative direct current outputs.
