描述

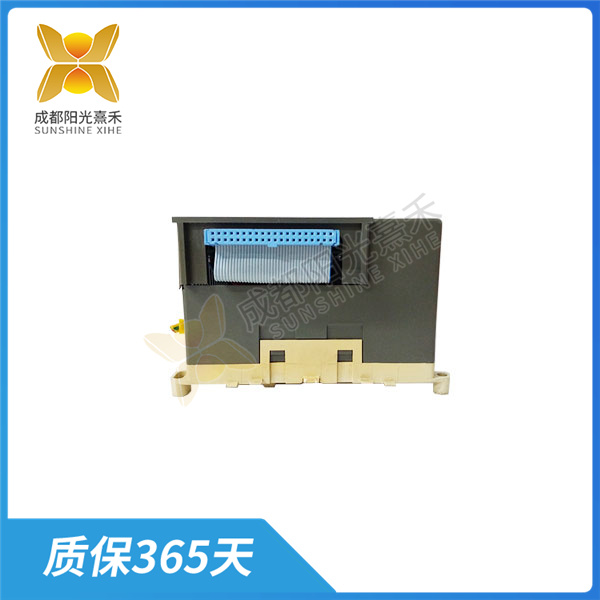

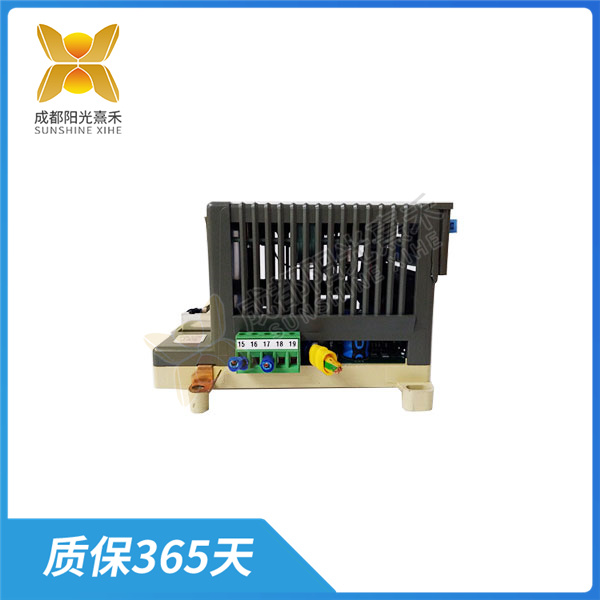

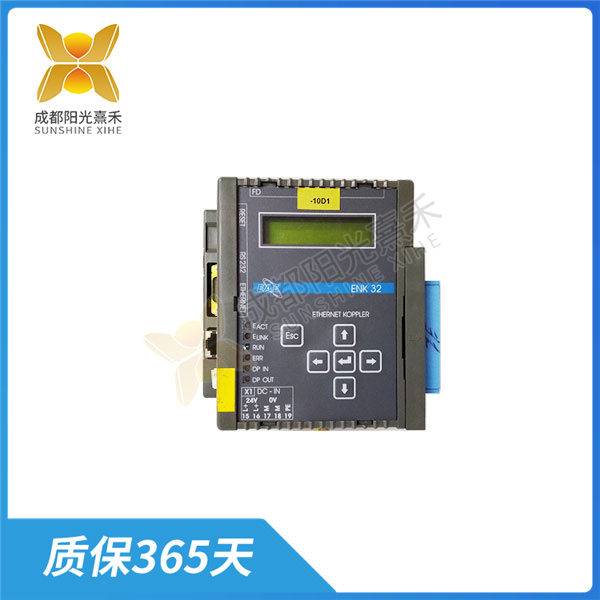

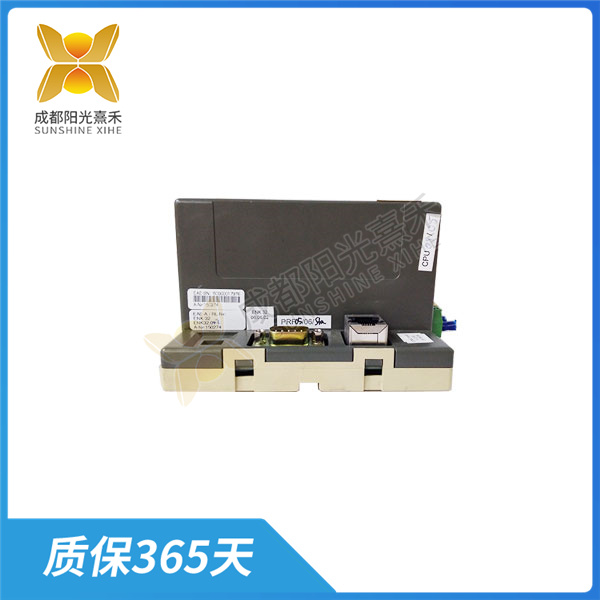

ENK32 現場總線控制系統利用現場總線作為工業控制系統的骨干網絡

ENK32現場總線控制系統（Fieldbus Control System，F(xiàn)CS）是集散控制系統（Distributed Control System，DCS）的更新?lián)Q代產品，并且已經成為工業生產過程自動化領域中一個新的熱點?，F(xiàn)場總線技術是20世紀90年代興起的一種先進的工業控制技術，它將現今網絡通信與管理的觀念引入工業控制領域。從本質上說，它是一種數字通信協議，是連按智能現場設備和自動化系統的數字式、全分散、雙向傳輸、多分支結構的通信網絡。它是控制技術、儀表工業技術和計算機網絡技術三者的結合，具有現場通信網絡、現場設備互連、互操作性、分散的功能塊、通信線供電和開放式互連網絡等技術特點。這些特點不僅保證了它完全可以適應工業界對數字通信和自動控制的需求，而且使它與Internet 互連構成不同層次的復雜網絡成為可能，代表了今后工業控制體系結構發展的一種方向。

現場總線控制系統利用現場總線作為工業控制系統的骨干網絡，ENK32以滿足工業現場中，控制系統、執行機構和測量設備之間能夠?qū)崿F(xiàn)多節點數字通信的需求，具有可拓展性強、組網靈活的特點。此外，該系統還具有分散性、開放性和低成本等優點。在分散性方面，控制功能分散到現場設備，使系統具有更高的靈活性和可靠性，分散的控制系統使根據控制需求的變化而重組和擴建原有的控制系統變得更加方便，對于系統的維護工作也更加容易。在開放性方面，通信網絡采用公開化、標準化的解決方案，從而使用戶在選擇不同廠家的工控產品時更加靈活，組網更加方便。在低成本方面，分布式結構采用數字信號傳輸方式替代了集散控制系統中的模擬信號傳輸方式，省去了許多數/模、模/數轉換裝置；控制功能的分散下放，簡化了系統結構、節約了硬件設備和連接電纜，縮短了開發周期，減少了維護費用。

集散控制系統（DCS）也稱為分布式控制系統，它把控制技術、計算機技術、圖像顯示技術以及通信技術結合起來,實現對生產過程的監視、控制和管理。它既打破了常規控制儀表功能的局限,又較好的解決了早期計算機系統對于信息、管理和控制作用過于集中帶來的危險性。它主要用于大規模的連續過程控制系統中, 如石化、電力等。

綜上所述，ENK32現場總線控制系統是一種具有高度分散性、開放性和低成本的控制系統，它利用現場總線作為通信骨干網絡，實現了控制系統、執行機構和測量設備之間的多節點數字通信。相比傳統的集散控制系統，現場總線控制系統具有更高的靈活性和可靠性，并能降低整個工程生命周期的綜合成本。

ENK32 現場總線控制系統利用現場總線作為工業控制系統的骨干網絡

ENK32 Fieldbus Control System (FCS) is the replacement of Distributed Control System (DCS), and has become a new hot spot in the field of industrial process automation. Fieldbus technology is an advanced industrial control technology that arose in the 1990s. It introduces the concept of network communication and management into the field of industrial control. In essence, it is a digital communication protocol, is connected to intelligent field equipment and automation system of digital, fully decentralized, two-way transmission, multi-branch structure of the communication network. It is a combination of control technology, instrument industry technology and computer network technology. It has the technical characteristics of field communication network, field equipment interconnection, interoperability, decentralized functional blocks, communication line power supply and open interconnection network. These characteristics not only ensure that it can fully adapt to the needs of the industry for digital communication and automatic control, but also make it possible to interconnect with the Internet to form complex networks at different levels, representing a direction for the development of industrial control architecture in the future.

The fieldbus control system uses the fieldbus as the backbone network of the industrial control system, ENK32 to meet the needs of multi-node digital communication between the control system, the actuator and the measuring equipment in the industrial field, and has the characteristics of strong scalability and flexible networking. In addition, the system has the advantages of decentralization, openness and low cost. In terms of decentralization, the control function is dispersed to the field equipment, so that the system has higher flexibility and reliability, the decentralized control system makes it more convenient to reorganize and expand the original control system according to the change of control needs, and the maintenance of the system is also easier. In terms of openness, the communication network adopts open and standardized solutions, so that users are more flexible when choosing industrial control products from different manufacturers, and the networking is more convenient. In the aspect of low cost, the distributed structure adopts the digital signal transmission mode to replace the analog signal transmission mode in the distributed control system, and saves many digital/mode and analog/digital conversion devices. Decentralized control functions simplify the system structure, save hardware equipment and connecting cables, shorten the development cycle, and reduce maintenance costs.

Distributed control system (DCS) is also known as distributed control system, which combines control technology, computer technology, image display technology and communication technology to realize the monitoring, control and management of the production process. It not only breaks the limitation of the conventional control instrument function, but also better solves the danger brought by the early computer system for the information, management and control function too centralized. It is mainly used in large-scale continuous process control systems, such as petrochemical, electric power and so on.

In summary, the ENK32 fieldbus control system is a highly decentralized, open and low-cost control system, which uses the fieldbus as the communication backbone network to realize the multi-node digital communication between the control system, the actuator and the measuring equipment. Compared with the traditional distributed control system, the fieldbus control system has higher flexibility and reliability, and can reduce the comprehensive cost of the whole engineering life cycle.
