描述

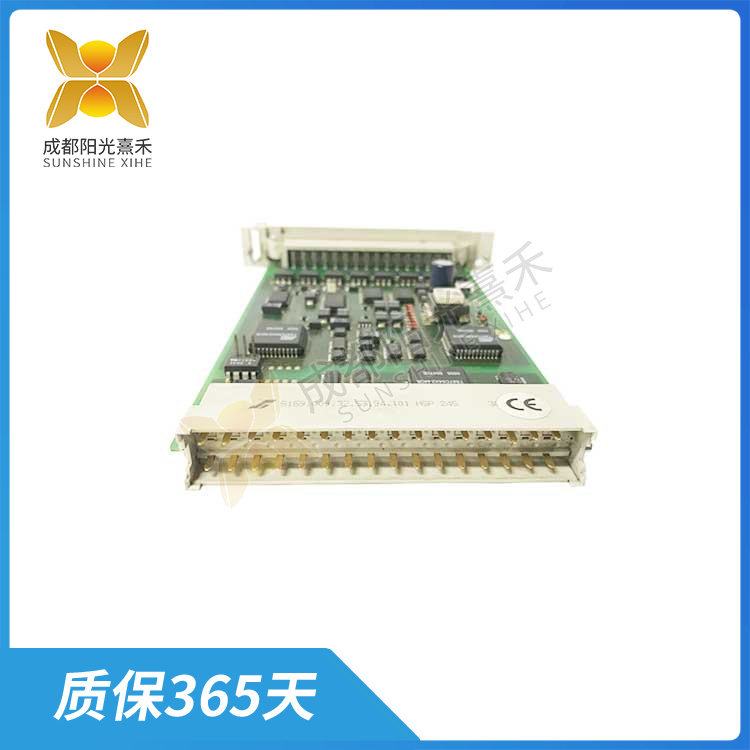

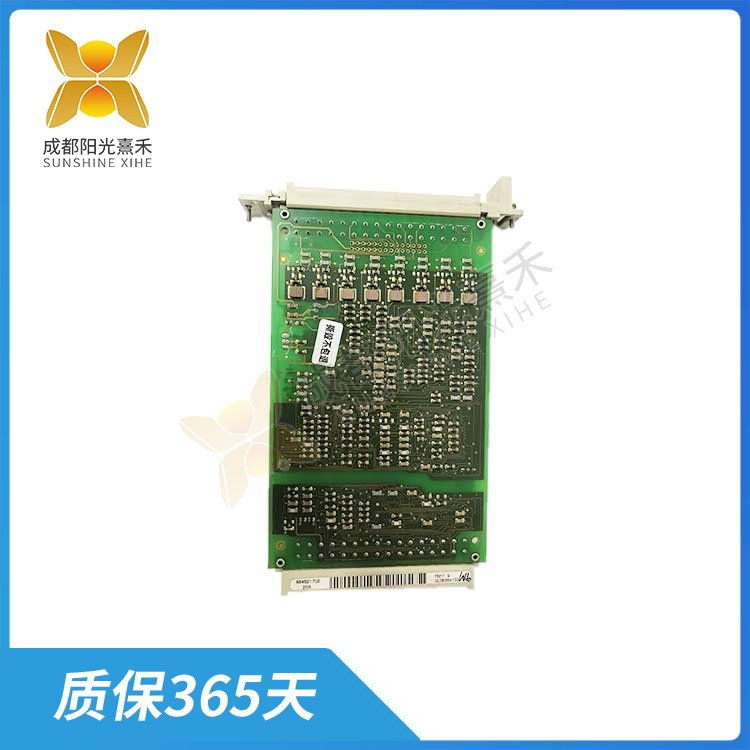

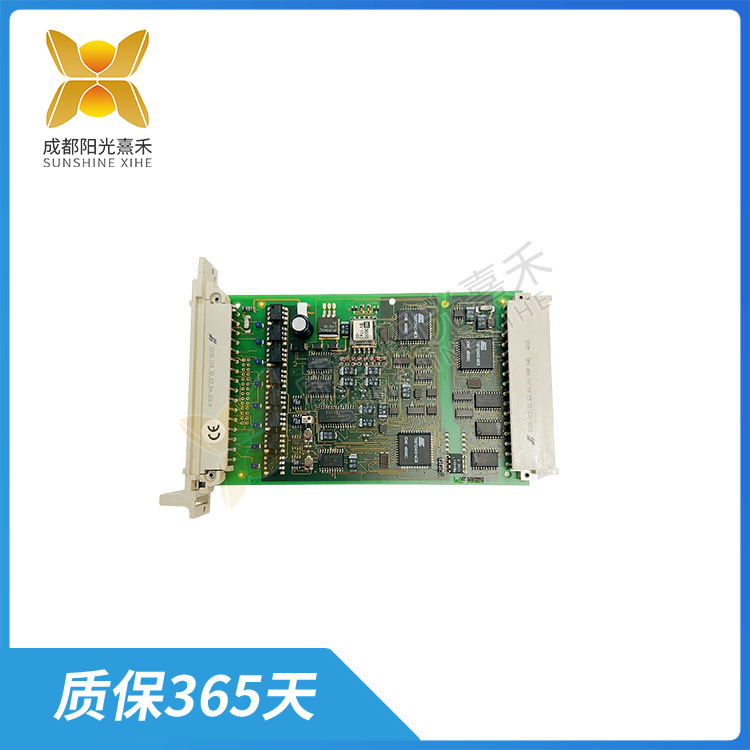

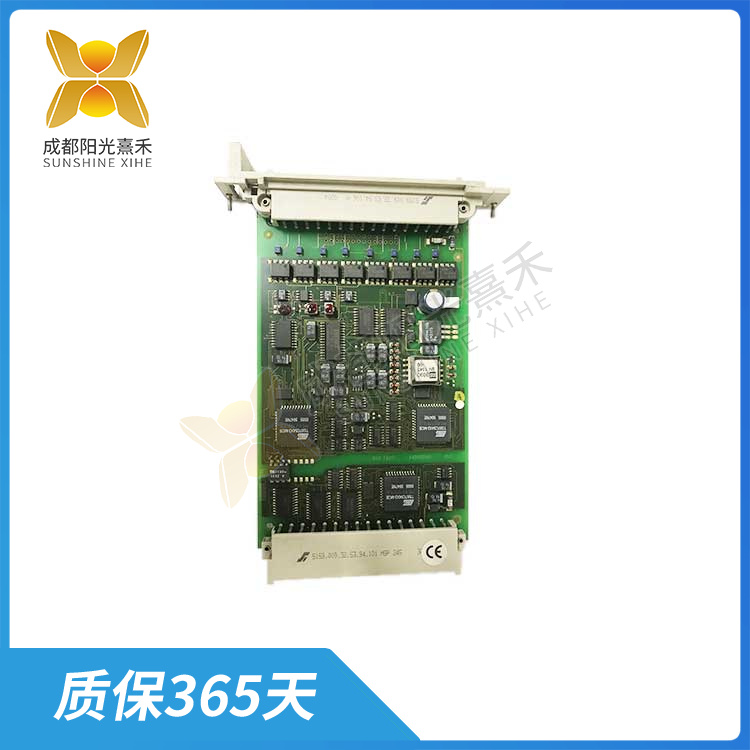

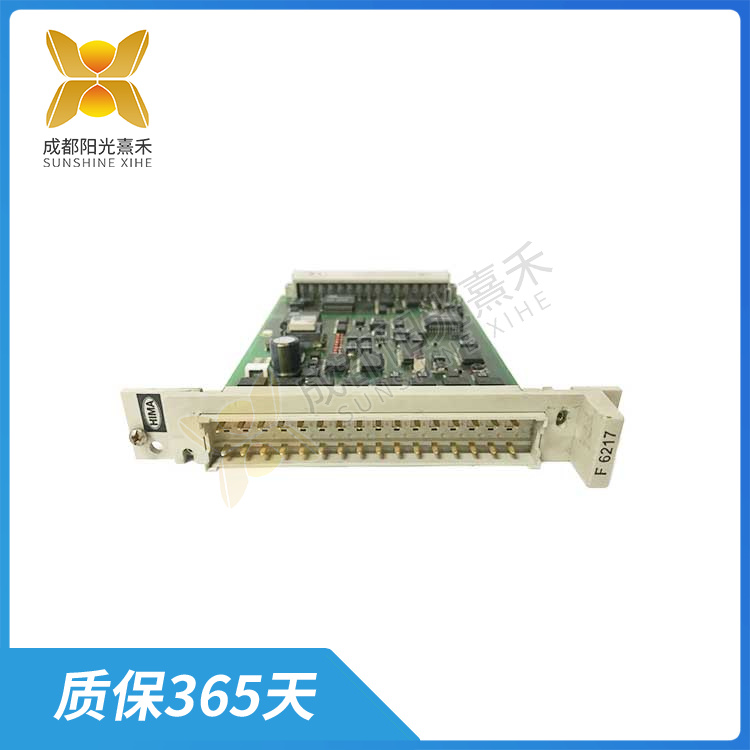

F6217-984621702 SIS一般采用多重冗余結構以提高系統的硬件故障裕度

安全儀表系統（Safety Instrumented System，簡稱SIS）是一種用于工廠控制系統中報警和聯鎖部分的安全控制系統，F(xiàn)6217-984621702能夠?qū)嵤﹫缶瘎幼骰蛘{(diào)節或停機控制，是工廠企業自動控制中的重要組成部分。

安全儀表系統主要具有以下特點：

覆蓋面廣、安全性高、有自診斷功能，能夠檢測并預防潛在的危險。
具有容錯性的多重冗余系統，SIS一般采用多重冗余結構以提高系統的硬件故障裕度，單一故障不會導致SIS安全功能喪失。

應用程序容易修改，可根據實際需要對軟件進行修改。

自診斷覆蓋率大，工人維修時需要檢查的點數比較少。

可實現從傳感器到執行元件所組成的整個回路的安全性設計，具有I/O短路、斷線等監測功能。

F6217-984621702 安全儀表系統包括傳感器、邏輯運算器和最終執行元件，即檢測單元、控制單元和執行單元。其中，傳感器用于檢測工藝參數，邏輯運算器用于進行邏輯運算和控制，最終執行元件則根據邏輯運算器的結果執行相應的動作，如報警、停機等。

此外，F(xiàn)6217-984621702安全儀表系統的等級劃分也是衡量其可靠性的重要因素。根據安全等級系數，安全儀表系統可以分為一級、二級和三級等不同等級。其中，一級安全儀表系統的可靠性最高，三級最低。

總的來說，安全儀表系統是一種高可靠性的控制系統，廣泛應用于工業自動化領域中，能夠保障工廠和企業的安全穩定運行。

F6217-984621702 SIS一般采用多重冗余結構以提高系統的硬件故障裕度

The Safety Instrumented System (SIS) is a safety control system for the alarm and interlock part of a factory control system. The F6217-984621702 is capable of implementing alarm action or adjustment or shutdown control, and is an important part of the automatic control of a factory.

The safety instrument system mainly has the following characteristics:

Wide coverage, high safety, self-diagnostic function, can detect and prevent potential hazards.
Multiple redundancy system with fault tolerance, SIS generally adopts multiple redundancy structure to improve the hardware fault margin of the system, and a single fault will not cause the loss of SIS safety function.

The application program is easy to modify, and the software can be modified according to actual needs.

The coverage rate of self-diagnosis is large, and the number of points that workers need to check when maintaining is relatively small.

It can realize the safety design of the whole loop from the sensor to the actuator, and has the monitoring function of I/O short circuit and broken line.

The F6217-984621702 safety instrumentation system consists of sensors, logic operations and final execution elements, namely detection units, control units and execution units. Among them, the sensor is used to detect the process parameters, the logic arithmetic is used to carry out logical operations and control, and the final executive element executes the corresponding actions according to the results of the logic arithmetic, such as alarm and shutdown.

In addition, the classification of the F6217-984621702 safety instrument system is also an important factor to measure its reliability. According to the safety grade coefficient, the safety instrument system can be divided into one level, two level and three level. Among them, the first-level safety instrument system has the highest reliability and the third-level safety instrument system has the lowest reliability.

In general, the safety instrument system is a highly reliable control system, widely used in the field of industrial automation, to ensure the safe and stable operation of factories and enterprises.
