描述

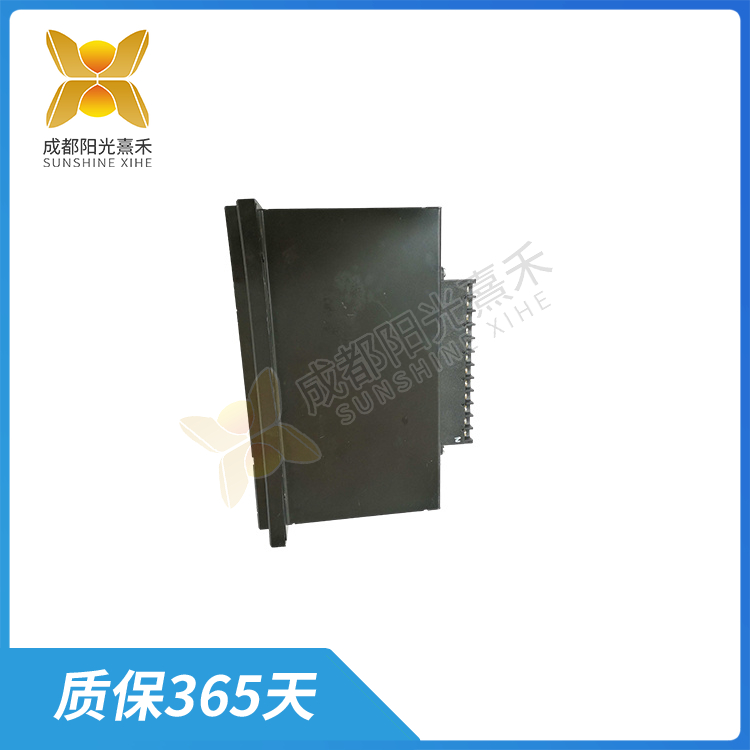

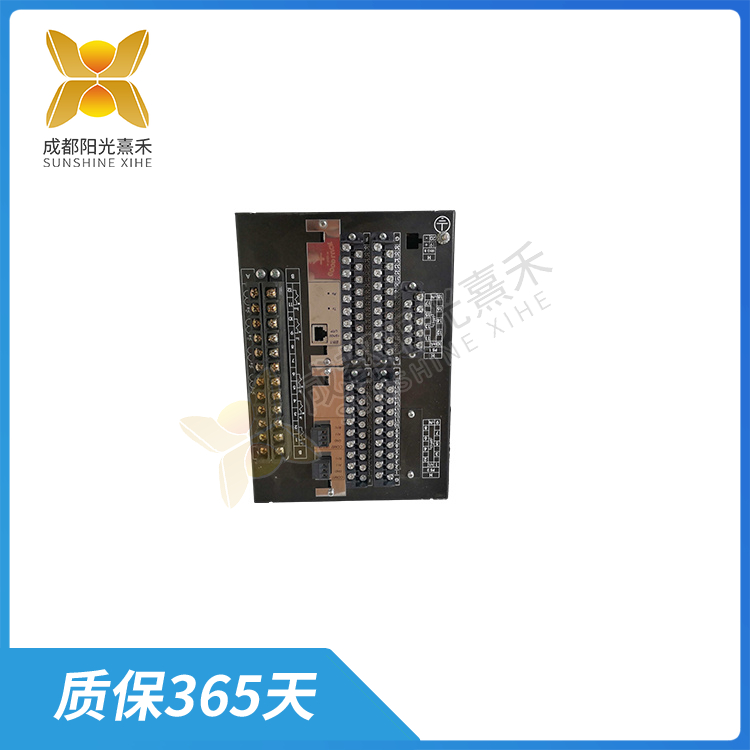

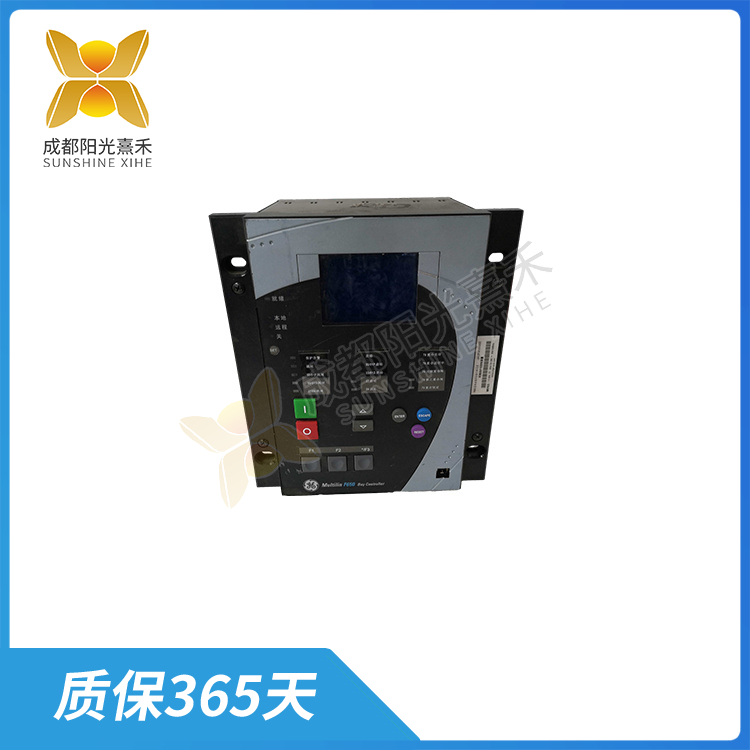

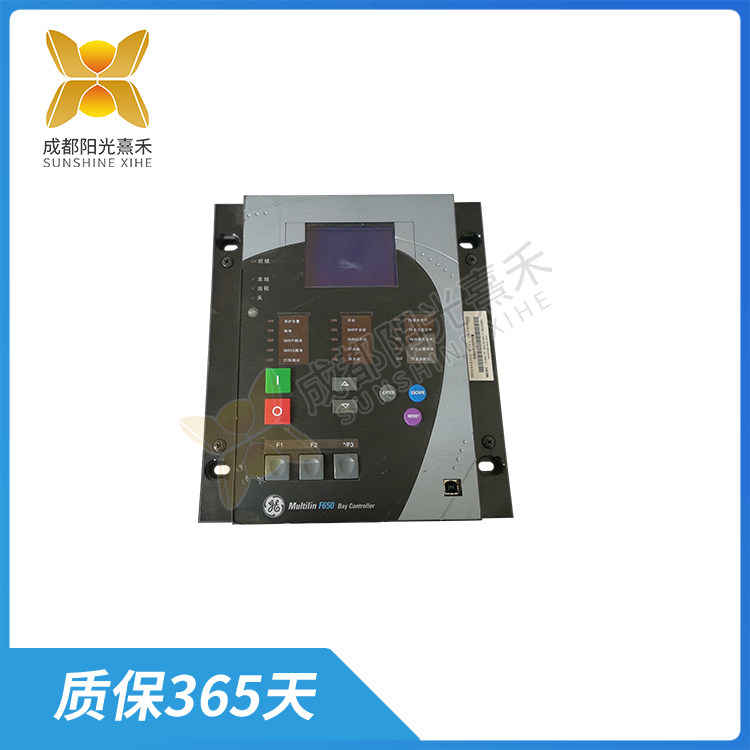

F650-G-N-A-B-F-2-G-1-HI-C-E 饋線保護繼電器的工作原理是基于電流、電壓等電氣參數的檢測和控制

饋線保護繼電器是一種用于饋線保護的設備，F(xiàn)650-G-N-A-B-F-2-G-1-HI-C-E主要應用于電力系統的線路保護。該繼電器可以對線路進行過流保護、速斷保護、過壓保護和欠壓保護等，以確保線路的安全和穩定運行。

饋線保護繼電器的工作原理是基于電流、電壓等電氣參數的檢測和控制。當線路中出現故障時，繼電器會自動檢測故障電流并根據設定值進行比較，然后根據故障類型執行相應的保護動作，例如切斷故障線路或發出報警信號。

饋線保護繼電器具有高可靠性和快速響應的特點，可以在線路出現故障時迅速動作，避免故障擴大并降低對設備的損害。同時，該繼電器還具有易于維護和調試的優點，可以根據實際需求進行參數調整和功能擴展。

總之，F(xiàn)650-G-N-A-B-F-2-G-1-HI-C-E饋線保護繼電器是電力系統中的重要設備之一，能夠?qū)崿F(xiàn)對饋線的全面保護和控制，提高電力系統的可靠性和穩定性。

饋線保護繼電器具有多種主要功能，以確保電力系統的安全和穩定運行。以下是饋線保護繼電器的一些主要功能：

過流保護：當線路中的電流超過設定的安全值時，饋線保護繼電器會切斷線路，防止電流過大造成設備損壞。

速斷保護：在出現嚴重故障時，如短路，饋線保護繼電器會迅速切斷線路，防止故障擴大。

過壓保護：當線路中的電壓過高時，繼電器會啟動保護機制，防止設備因過壓而損壞。

欠壓保護：當線路中的電壓過低時，繼電器同樣會采取保護措施，確保設備不會因欠壓而受損。

時間過流保護：在特定時間段內檢測到過流時，繼電器會采取相應的保護動作。

自動重合閘：在某些情況下，如瞬時故障，繼電器可以在一定時間后自動重新合閘，嘗試恢復線路的正常運行。

頻率保護：針對電網頻率的變化，繼電器可以設定相應的保護策略。

自動重合閘選項：自動重合閘功能可根據實際情況選擇是否開啟或關閉。
這些功能相互協同工作，使得饋線保護繼電器能夠全面地監測和控制電力系統的運行狀態，及時發現和解決潛在的問題，確保電力系統的穩定性和可靠性。在實際應用中，根據具體的線路特性和需求，可以選擇具備相應功能的饋線保護繼電器。

F650-G-N-A-B-F-2-G-1-HI-C-E 饋線保護繼電器的工作原理是基于電流、電壓等電氣參數的檢測和控制

Feeder protection relay is a device used for feeder protection, F650-G-N-A-B-F-2-G-1-HI-C-E is mainly used for line protection of power systems. The relay can carry out over current protection, quick break protection, over voltage protection and under voltage protection to ensure the safe and stable operation of the line.

The working principle of feeder protection relay is based on the detection and control of electrical parameters such as current and voltage. When there is a fault in the line, the relay automatically detects the fault current and compares it according to the set value, and then performs the corresponding protective action according to the fault type, such as cutting off the fault line or sending an alarm signal.

The feeder protection relay has the characteristics of high reliability and fast response, which can act quickly when the line fails, avoid fault expansion and reduce the damage to the equipment. At the same time, the relay also has the advantages of easy maintenance and debugging, and can be adjusted and expanded according to the actual needs.

In short, F650-G-N-A-B-F-2-G-1-HI-C-E feeder protection relay is one of the important equipment in the power system, which can realize the comprehensive protection and control of the feeder and improve the reliability and stability of the power system.

Feeder protection relays have a variety of primary functions to ensure the safe and stable operation of the power system. Here are some of the main functions of feeder protection relays:

Overcurrent protection: When the current in the line exceeds the set safe value, the feeder protection relay will cut off the line to prevent equipment damage caused by excessive current.

Quick break protection: In the event of a serious fault, such as a short circuit, the feeder protection relay will quickly cut the line to prevent the fault from expanding.

Overvoltage protection: When the voltage in the line is too high, the relay will activate the protection mechanism to prevent the equipment from being damaged due to overvoltage.

Undervoltage protection: When the voltage in the line is too low, the relay will also take protective measures to ensure that the equipment will not be damaged by undervoltage.

Time overcurrent protection: When overcurrent is detected in a specific period of time, the relay will take the corresponding protective action.

Automatic reclosing: In some cases, such as transient failures, the relay can automatically re-close after a certain time to try to restore the normal operation of the line.

Frequency protection: For changes in the frequency of the power grid, the relay can set the corresponding protection strategy.

Automatic reclosing option: The automatic reclosing function can be opened or closed according to the actual situation.
These functions work together, so that the feeder protection relay can comprehensively monitor and control the operating status of the power system, find and solve potential problems in time, and ensure the stability and reliability of the power system. In practical applications, feeder protection relays with corresponding functions can be selected according to specific line characteristics and requirements.
