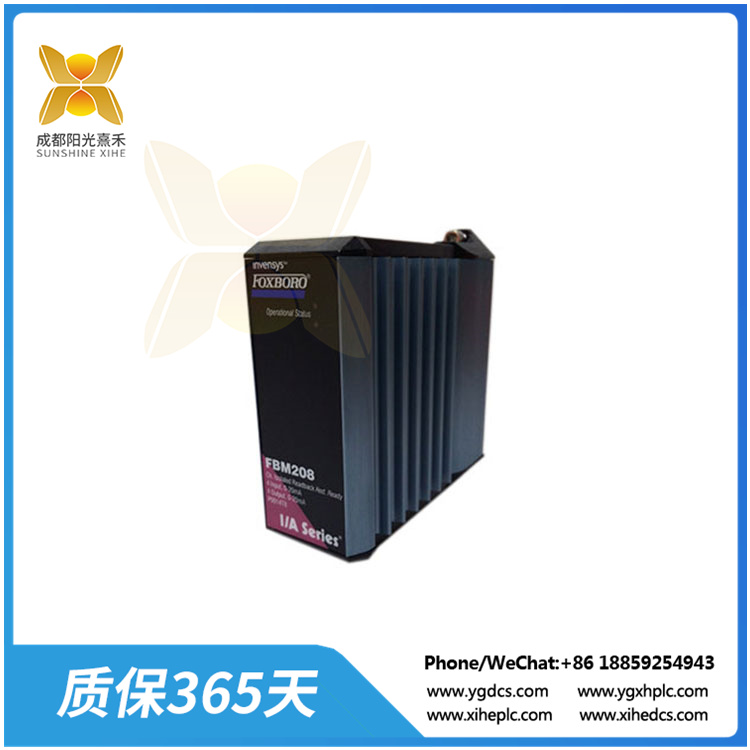

FBM208 冗余模擬輸入
具有高可用性要求的單輸入/單輸出控制方案可以利用FBM208作為冗余對的優勢。提供了一個檢測輸出通道故障的回讀功能。在維修情況下，當更換單個模塊時，輸入和輸出由冗余模塊維護。HART?信號與4-20 mA信號電氣兼容，允許工廠升級現場設備而無需更改控制系統。fbm208b提供相同的功能，用于從舊的fbm05升級。
冗余的一對模塊組合在FieldbusModule (FBM)級別提供冗余，與現場I/O連接到一個公共終端組件(參見圖1，第4頁)。每個模塊獨立地嘗試將輸出保持在其指定的輸出值，并且每個模塊獨立地報告其觀察到的輸入值。
Foxboro?dcs控制軟件中的冗余模擬輸入和冗余模擬輸出塊與模塊的信息一起驗證每個輸入和輸出。
FBM208與標準hart信號在電氣上兼容。
特點:
?4個0至20 mA直流模擬輸入通道
?4個0至20 mA直流模擬輸出通道與回讀
?將FBM的輸出值與當前讀回值進行比較。如果回讀值與期望輸出相差±2%以上，則FBM將其輸出通道標記為BAD
?監控FBM的內部通道電流環路功率，并標記通道BADif功率小于16v dc
?標記通道壞導致冗余模塊中相應的通道繼續驅動輸出
?冗余模塊提高可靠性
?終端組件(TAs)用于本地或遠程連接現場布線到fbm208
FBM208 冗余模擬輸入
Single input/single output control schemes with high availability requirements can takeadvantage of the FBM208 arranged as a redundant pair. A readback feature isprovided that detects failures of the output channel. In a repair situation, when a singlemodule is replaced, the inputs and outputs are maintained by the redundant module. HART? signals are electrically compatible with the 4-20 mA signals, permitting theplant to upgrade field devices without the need to change the control system. TheFBM208b provides the same functionality and is used to upgrade from the olderFBM05.
A redundant pair of the modules combine to provide redundancy at the FieldbusModule (FBM) level, with field I/O wired to one common termination assembly (seeFigure 1, page 4). Each module independently attempts to hold the output(s) at itsspecified output value(s), and each independently reports its observed value of theinputs.
A redundant analog input and redundant analog output block in the Foxboro? DCSControl Software validates each input and output in conjunction with information to/from the module.
The FBM208 is electrically compatible with standard HARTsignals.
Features:
? Four 0 to 20 mA dc analog input channels
? Four 0 to 20 mA dc analog output channels with readback
? Compares FBM’s output value with the current readback value. If the readbackvalue differs from the desired output by more than ± 2%, the FBM marks itsoutput channel BAD
? Monitors FBM’s internal channel current loop power and marks the channel BADif power is less than 16 V dc
? Marking a channel Bad causes the corresponding channel in the redundantmodule to continue to drive the outputs
? Redundant modules increase reliability
? Termination Assemblies (TAs) for locally or remotely connecting field wiring to theFBM208
