描述

FBM211-RH914TN 負責將外部世界的物理量轉換為計算機或微處理器能夠識別的數字信號

輸入接口模塊是一種電子設備組件，F(xiàn)BM211-RH914TN用于接收和處理來自外部設備或傳感器的模擬或數字信號。這些信號可以是電壓、電流、溫度、壓力、光強等各種物理量的測量值。輸入接口模塊將這些信號轉換成電子設備能夠理解和處理的格式，通常是數字信號。

輸入接口模塊廣泛應用于各種工業控制系統、自動化設備、儀器儀表、數據采集系統等領域。它們負責將外部世界的物理量轉換為計算機或微處理器能夠識別的數字信號，從而實現對這些物理量的監測、控制和分析。

輸入接口模塊的類型和規格因應用而異，常見的接口模塊包括模擬輸入模塊、數字輸入模塊、多功能輸入模塊等。模擬輸入模塊用于接收模擬信號，如電壓、電流等，通常具有調理電路、采樣電路和模數轉換器等組件。數字輸入模塊則用于接收數字信號，如開關狀態、傳感器輸出等，通常具有光電耦合器、微處理器等組件。多功能輸入模塊則結合了模擬和數字輸入的功能，可以接收多種類型的信號。

在選擇和使用輸入接口模塊時，F(xiàn)BM211-RH914TN需要根據實際的應用場景和需求來確定合適的模塊類型和規格。同時，還需要考慮模塊的性能指標，如輸入范圍、精度、穩定性、抗干擾能力等，以及模塊的安裝方式、通信協議、供電要求等因素。

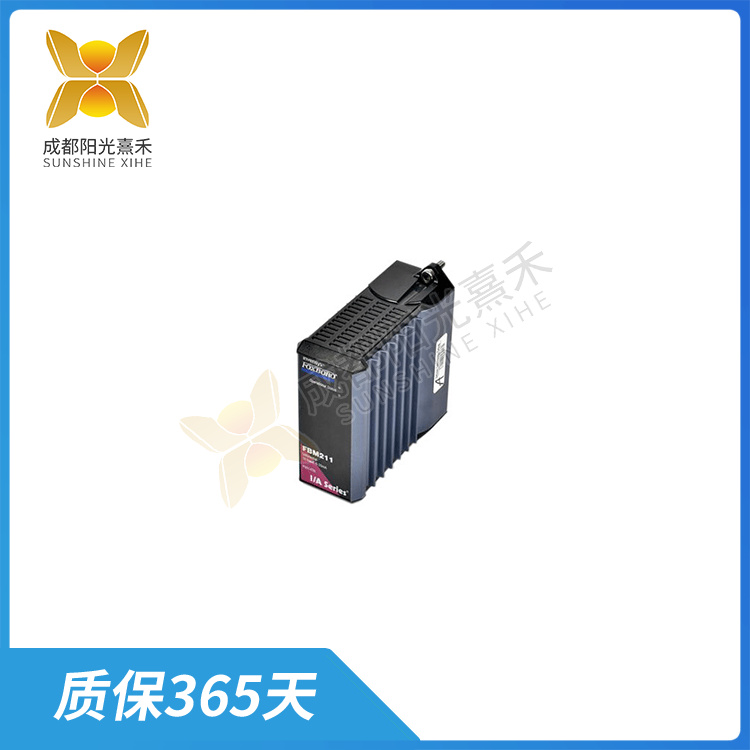

FBM211-RH914TN是由福克斯博羅（施耐德電氣）生產的一款輸入接口模塊。以下是其主要參數：

產品編號：FBM211
產品類型：輸入接口模塊
輸入：具有16組隔離獨立通道
輸入范圍（每個通道）：0至20.4 mA dc（每個通道電流限制為33 mA）
通信：通過冗余的2 Mbps模塊現場總線與其相關的FCM或FCP通信
輸入電壓范圍（冗余）：24伏直流電+5%，-10%
功耗：在24伏直流電下為7瓦（最大值）

FBM211-RH914TN 負責將外部世界的物理量轉換為計算機或微處理器能夠識別的數字信號

An input interface module is an electronic device assembly, the FBM211-RH914TN is used to receive and process analog or digital signals from external devices or sensors. These signals can be measured values of various physical quantities such as voltage, current, temperature, pressure, light intensity, etc. The input interface module converts these signals into a format that the electronic device can understand and process, usually a digital signal.

The input interface module is widely used in various industrial control systems, automation equipment, instruments, data acquisition systems and other fields. They are responsible for converting the physical quantities of the external world into digital signals that can be recognized by computers or microprocessors, so as to realize the monitoring, control and analysis of these physical quantities.

The types and specifications of input interface modules vary from application to application. Common interface modules include analog input modules, digital input modules, and multi-function input modules. The analog input module is used to receive analog signals, such as voltage, current, etc., and usually has components such as conditioning circuit, sampling circuit, and analog-to-digital converter. The digital input module is used to receive digital signals, such as switch status, sensor output, etc., usually with optocouplers, microprocessors and other components. The multifunctional input module combines the functions of analog and digital input and can receive various types of signals.

When selecting and using an input interface module, the FBM211-RH914TN needs to determine the module type and specifications based on actual application scenarios and requirements. At the same time, it is also necessary to consider the performance indicators of the module, such as input range, accuracy, stability, anti-interference ability, etc., as well as the installation mode of the module, communication protocol, power supply requirements and other factors.



The FBM211-RH914TN is an input interface module manufactured by Schneider Electric (Foxboro). Here are the main parameters:

Product number: FBM211
Product type: Input interface module
Input: Has 16 groups of isolated independent channels
Input range (per channel) : 0 to 20.4 mA dc (current limited to 33 mA per channel)
Communication: Communication with its associated FCM or FCP via a redundant 2 Mbps module fieldbus
Input voltage range (redundancy) : 24V DC +5%, -10%
Power consumption: 7 watts at 24 VDC (Max.)
