描述

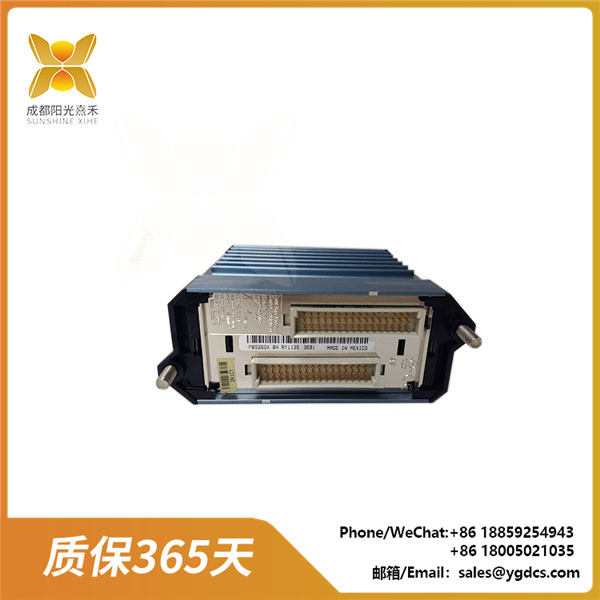

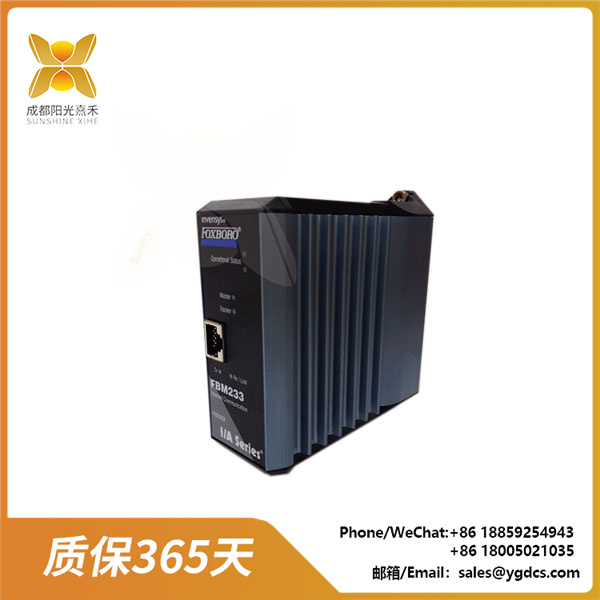

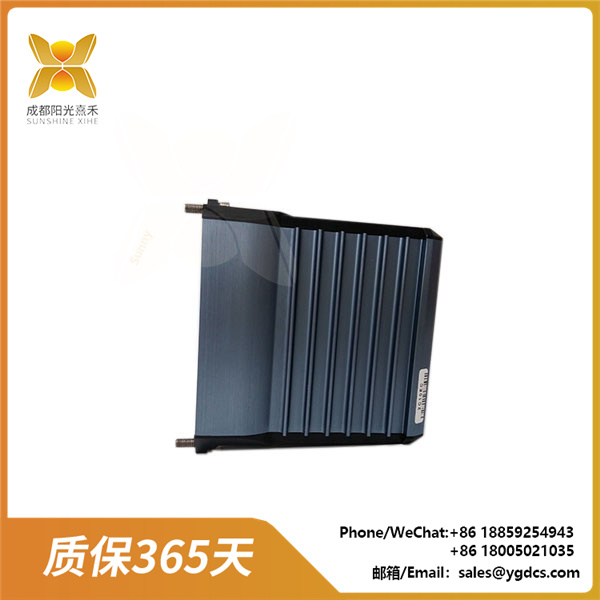

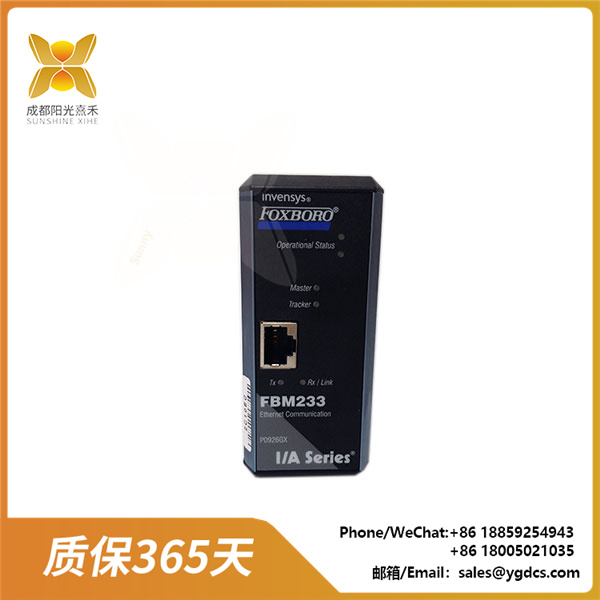

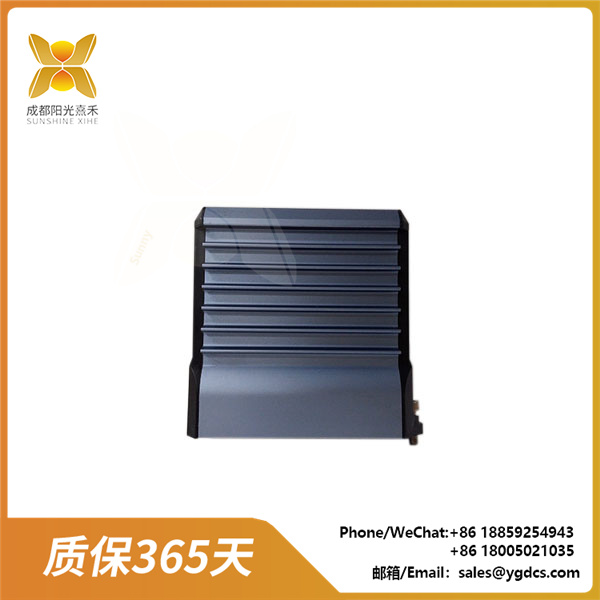

產品細節說明:FBM233 冗余現場設備系統集成模塊

FOXBORO FBM233 是一款高性能的冗余現場設備系統集成模塊，專為工業自動化控制系統設計。以下是關于該模塊的詳細信息：

1. 產品概述
品牌與型號：FOXBORO FBM233
系列：FBM（Fieldbus Module）系列
功能：FBM233 是狐搏羅（Foxboro）I/A 系列分布式控制系統（DCS）的重要組成部分，用于連接現場設備與控制系統，實現數據采集、傳輸和控制功能。

2. 技術規格
通信接口：
提供單端口或雙端口以太網連接，支持冗余設計。
以太網傳輸速率：10 Mbps 或 100 Mbps。
使用銅質 RJ-45 接頭連接雙端口以太網設備。
支持多種通信協議，包括 Modbus、HART、Profibus DP、Foundation Fieldbus 等。
數據處理能力：
每個模塊最多可連接 64 個現場設備。
支持高達 2000 個 DCI（分布式控制接口）塊連接。
數據類型支持：模擬輸入/輸出值（整數或 IEEE 單精度浮點數）、數字輸入/輸出值、多包數字輸入值（每個連接點最多 32 個數字點）。
冗余設計：
模塊組合使用時，一個為主模塊，一個為跟蹤模塊，提供現場總線模塊（FBM）級別的冗余。
主模塊負責數據更新，跟蹤模塊在主模塊故障時接管任務。
物理特性：
尺寸：120 mm x 90 mm x 25 mm。
材質：鋁合金外殼，提供良好的物理和電氣保護。
重量：約 0.45 千克。
工作溫度范圍：-40°C 至 +85°C。
防護等級：IP66 或 NEMA 4X。
安裝方式：
支持 DIN 導軌安裝或機架安裝。
可通過模塊底板安裝多個模塊，每個底板最多可容納四個模塊。

3. 應用場景
工業自動化：廣泛應用于過程控制、批處理、樓宇自動化等領域。
惡劣環境：適用于類 G3 等惡劣環境，符合 ISA S71.04 標準。
數據采集與控制：用于監控傳感器、變送器和轉換器的輸出電壓，實現過程控制和數據采集。

4. 優勢
高可靠性：冗余設計確保系統穩定性，即使單個組件發生故障，系統仍能持續運行。
靈活性：支持多種通信協議和設備類型，適應不同工業環境。
擴展性：通過添加多個模塊可擴展 I/O 點數，滿足復雜應用需求。
易用性：模塊化設計便于安裝和維護，支持多種編程語言和開發工具。

5. 總結
FOXBORO FBM233 是一款高性能、高可靠性的工業自動化模塊，適用于各種復雜的工業環境。其冗余設計、靈活的通信協議支持和強大的數據處理能力使其成為工業自動化領域的理想選擇。

Product details:FBM233 Redundant field device system integration module

The FOXBORO FBM233 is a high-performance redundant field equipment system integration module designed for industrial automation control systems. Here are the details about the module:

1. Product overview
Make and Model: FOXBORO FBM233
Series: FBM (Fieldbus Module) series
The FBM233 is an important part of Foxboro’s I/A series distributed control system (DCS), which is used to connect field equipment to the control system to achieve data acquisition, transmission and control functions.

2. Technical specifications
Communication interface:
Provides single – or dual-port Ethernet connectivity for redundancy.
Ethernet transfer rate: 10 Mbps or 100 Mbps.
Connect dual-port Ethernet devices using copper RJ-45 connectors.
Supports a variety of communication protocols, including Modbus, HART, Profibus DP, Foundation Fieldbus, and more.
Data processing capability:
Each module can connect up to 64 field devices.
Supports up to 2000 DCI (Distributed Control Interface) block connections.
Data types supported: analog input/output values (integer or IEEE single-precision floating point), digital input/output values, multi-packet digital input values (up to 32 digital points per connection point).
Redundant design:
When used in combination, one main module and one tracking module provide fieldbus module (FBM) level redundancy.
The master module is responsible for data updates and the tracking module takes over the task if the master module fails.
Physical characteristics:
Dimensions: 120 mm x 90 mm x 25 mm.
Material: Aluminum alloy housing provides good physical and electrical protection.
Weight: About 0.45 kg.
Operating temperature range: -40°C to +85°C.
Protection class: IP66 or NEMA 4X.
Installation method:
Supports DIN rail mounting or rack mounting.
Multiple modules can be installed through the module base plate, each base plate can accommodate up to four modules.

3. Application scenario
Industrial automation: widely used in process control, batch processing, building automation and other fields.
Harsh environment: Suitable for harsh environment such as Class G3, in line with ISA S71.04 standard.
Data acquisition and control: Used to monitor the output voltage of sensors, transmitters and converters for process control and data acquisition.

Step 4: Advantages
High reliability: The redundant design ensures system stability and continuous operation even if a single component fails.
Flexibility: Supports a variety of communication protocols and device types to adapt to different industrial environments.
Scalability: I/O points can be expanded by adding multiple modules to meet complex application requirements.
Ease of use: Modular design for easy installation and maintenance, support for multiple programming languages and development tools.

Step 5 Summarize
The FOXBORO FBM233 is a high-performance, highly reliable industrial automation module for use in complex industrial environments. Its redundant design, flexible communication protocol support and powerful data processing capabilities make it ideal for industrial automation.
