描述

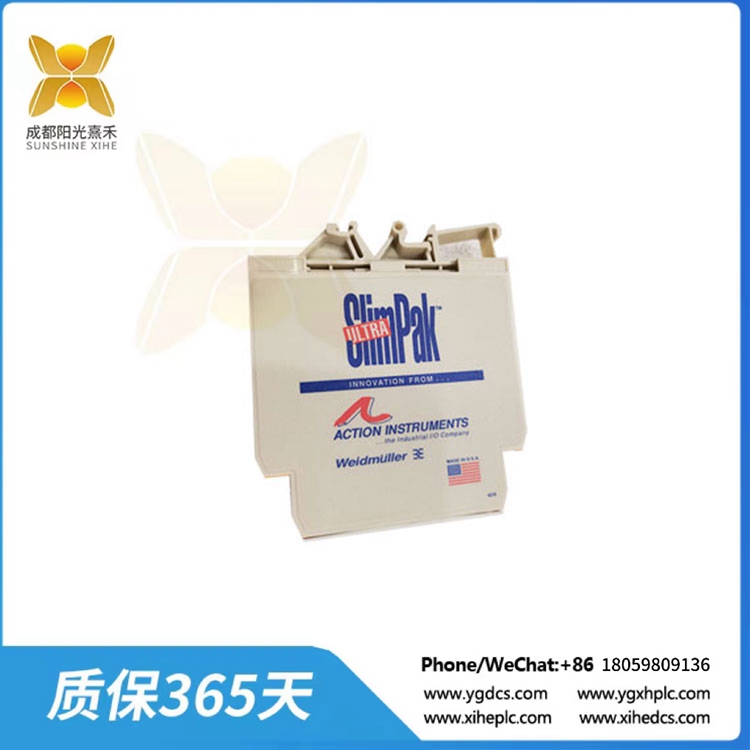

G428-0001 T/C輸入域可配置隔離器

描述
G428是一款DIN導軌式熱電偶輸入信號調節器，在輸入、輸出和電源之間具有1800VDC隔離?，F(xiàn)場可配置的輸入和輸出為J, K, T, R, S, E和B型熱電偶提供靈活，廣泛的能力

G428輸入可配置60多個熱電偶溫度范圍(見表6)。輸出與溫度呈線性關系，可設置為0-5V, 0-10V, 0-1mA, 0-20mA或4-20mA。

寬量程，精度零和跨度鍋允許50%的可調偏移和跨度調低每個范圍內。例如，0-1000°C范圍可以被偏移和調低，以提供4-20mA信號，代表500-1000°C。同樣，調整可以參考輸出范圍。上面的例子可以用來提供從750到1000°C的溫度輸入的12-20mA信號

應用程序
G428的三路隔離完全消除了任何來源的接地回路。隔離保護昂貴的scada系統免受接地故障，并允許接地?zé)犭娕嫉慕翟胄б娴靡詫?shí)現。

G428配備冷端補償(CJC)電路以提供冰點參考。高檔或低檔熱電偶燒壞檢測是開關可選的。

高密度DIN導軌安裝提供了一個非常緊湊的解決方案，以節省寶貴的面板空間。

G428-0001 T/C輸入域可配置隔離器

Description
The G428 is a DIN rail mount, thermocouple input signal conditioner with 1800VDC isolation between input, output and power. The field configurable input and output offer flexible, wideranging capability for J, K, T, R, S, E and B type thermocouples

The G428 input can be configured for over 60 thermocoupletemperature ranges (see Table 6). The output is linear to temperatureand can be set for either 0-5V, 0-10V, 0-1mA, 0-20mA or 4-20mA.

Wide ranging, precision zero and span pots allow 50% adjustablityof offset and span turn-down within each of the ranges. Forexample, the 0-1000°C range could be offset and turned down toprovide a 4-20mA signal representing 500-1000°C. Similarly,adjustment can be referenced to the output range. The exampleabove could be used to provide a 12-20mA signal from a 750 to1000°C temperature input

Application
Three way isolation in the G428 completely eliminates groundloops from any source. Isolation protects expensive SCADAsystems from ground faults and allows the noise reductionbenefits of grounded thermocouples to be realized.

The G428 is equipped with cold junction compensation (CJC)circuitry to provide ice-point reference. Upscale or downscalethermocouple burnout detection is switch selectable.

High density DIN rail mounting offers an extremely compactsolution to save valuable panel space.
