描述

H201TI? 熱調節系統和以微處理器為基礎的電傳輸器

HYDRAN 201系列變壓器油中故障氣體在線監測系統

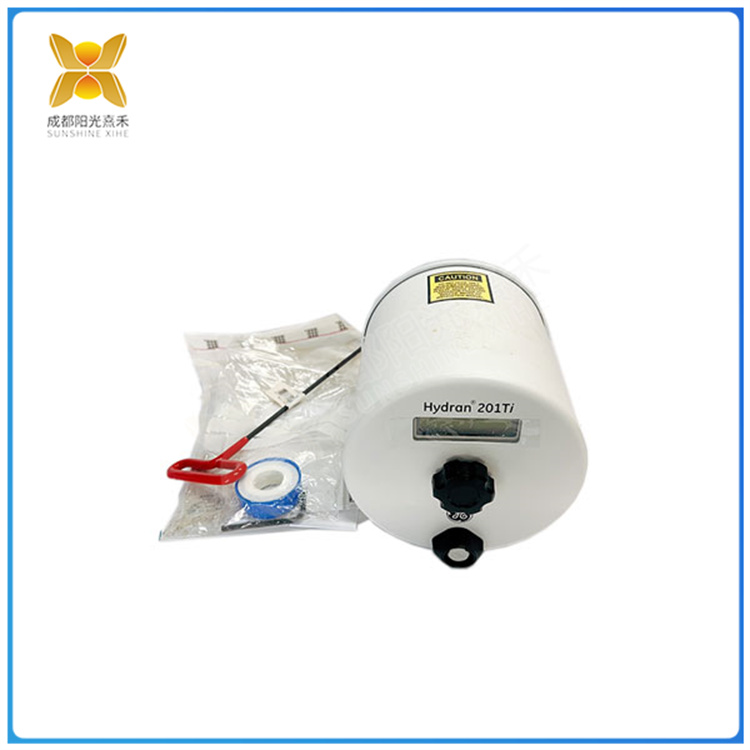

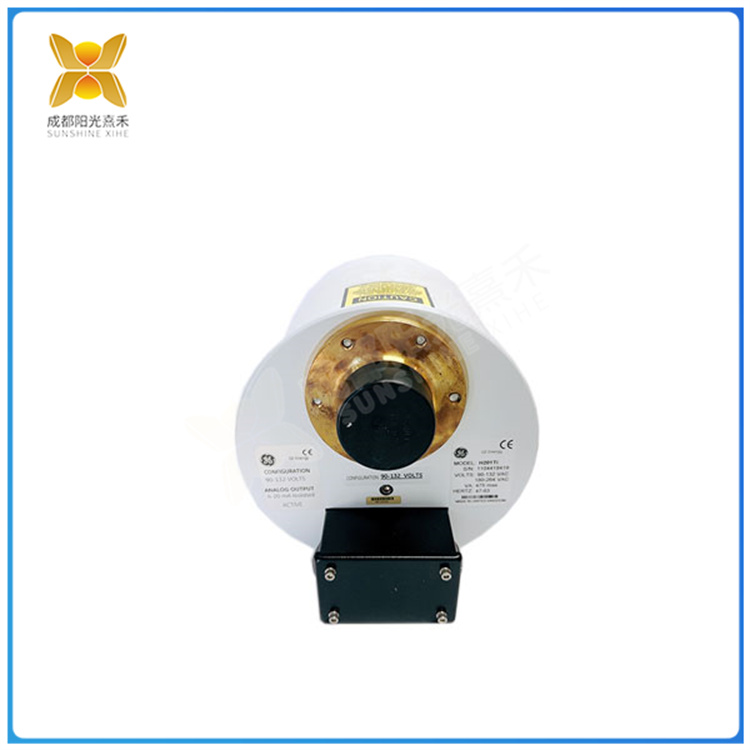

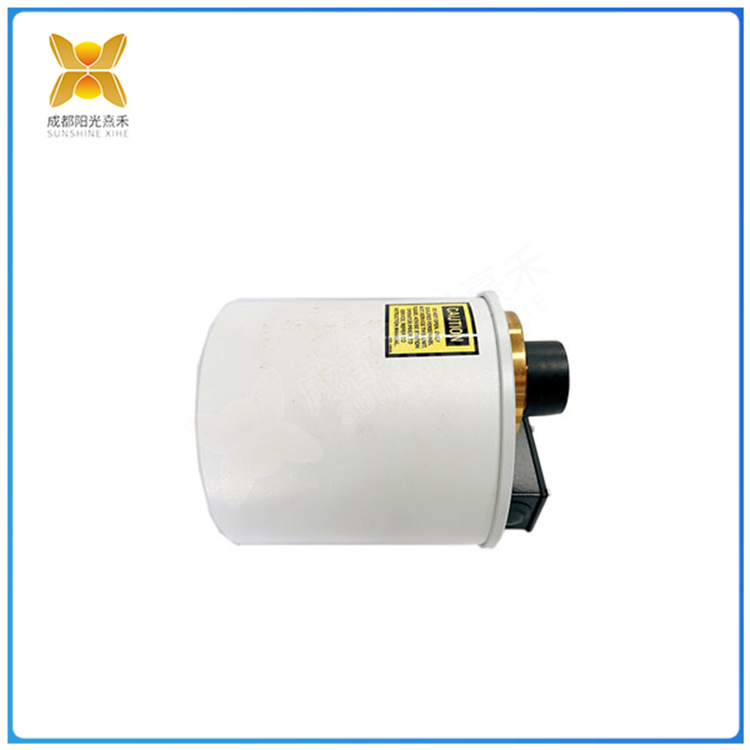

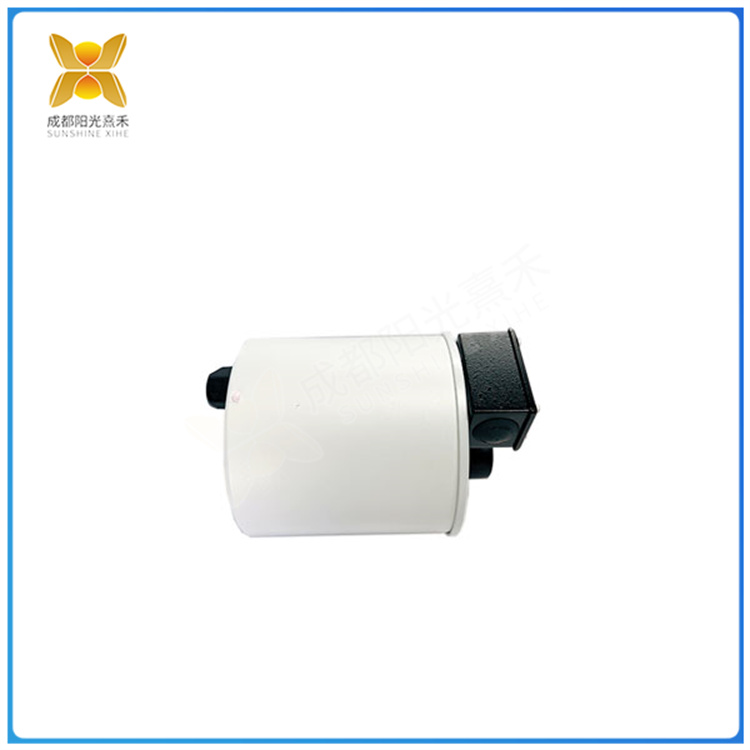

一: Hydran 201Ti智能式傳輸器
H201Ti智能式傳輸器有小圓柱體機殼，通過黃銅配接器直接與變壓器的溶解氣體監測閥配接。
H201Ti包括一個標準的HYDRAN8傳感器， 熱調節系統和以微處理器為基礎的電傳輸器。接線端便于連接交流電源， 報警觸點(氣體高,氣體高-
高和系統故障)及監管聯接,還有一一個模擬0-1mA的非隔離輸出。 也可選購4-20mA的隔離輸出。還提供了電腦界面的RS-232連接器。
配有薄膜鍵盤和液晶顯示，無須外部電腦也能使用。
二: Hydran 201Ci-1單通道控制器
H201Ci-1控制單元是一個完整的單通道控制器， 與H201Ti智能式傳輸器一 起使用。數字/模擬板處理通訊事務并提供顯示、報警和模擬輸出功能。
主接線端便于連接:交流電源;報警觸點(氣體高，氣體高高和系統故障) ;可用跳線配置的非隔離模擬輸出(0-1mA, 4-20mA, 0-1V, 0-
10V)及跳線配置的隔離模擬輸出。輔助接線端用作對H201 Ti智能式傳輸器的監管聯接。用于通訊的連接器: RS-232至電腦或選購的modem,
RS-485連接其它H201Ci控制器。
前門安裝了發光_二極管數字顯示屏，顯示以ppm為單位的氣體含量。還有兩個氣體報警指示燈。
三: H201Ci-C通訊控制器
H201Ci-C控制單元是一個通訊控制器。它可通過隔離監管聯接,監管多達4個H201Ti智能式傳輸器，例如一個變壓器柜(包括A,B,C相， 有時還有
-一個輔助)。H201Ci-C通訊控制器沒有顯示屏,也不提供報警和模擬輸出，它是H201Ti智能式傳輸器網絡經RS -232或modem與電腦連接的專門
界面。
H201Ci-C裝在-個小NEMA-4X盒內，包括-塊處理通訊事務的數字電路板，主接線端便于連接交流電源。用于通訊的連接器: RS-232至電腦或選
購的modem (4個連接器)，RS-485連接其它H201Ci控制器。
四: H201Ci-4四通道控制器
H201Ci-4控制單元是一個完整的四通道控制器。 用來與多達四個H201Ti智能式傳輸器一起使用，裝在一個NEMA- 4X盒內。數字/模擬板處理通訊事
務,并提供掃描顯示輸出，報警和模擬輸出。
主接線端便于連接交流電源和報警觸點(氣體高,氣體高高和系統故障)。用于通訊的連接器: RS-232至電腦或選購的modem, 隔離監管聯接至
H201Ti智能式傳輸器，RS-485連接其它H201Ci控制器。
前門安裝了發光二極管數字顯示屏，顯示以ppm為單位的氣體含量。還有兩個氣體報警指示燈。顯示屏逐次顯示每個通道的ppm值，而一列小發光
二極管指出正在顯示的通道編號。五檔旋轉開關可選擇持續顯示其中一個通道， 或者選擇自動掃描方式。

H201TI? 熱調節系統和以微處理器為基礎的電傳輸器

HYDRAN 201 series on-line monitoring system for faulty gas in transformer oil
One: Hydran 201Ti intelligent transmitter
The H201Ti intelligent transmitter has a small cylindrical housing and is connected directly to the dissolved gas monitoring valve of the transformer via a brass adapter.
The H201Ti includes a standard HYDRAN8 sensor, thermal conditioning system and microprocessor-based electrical transmitter. The terminal is easy to connect AC power supply, alarm contact (gas high, gas high –
High and system failure) and supervisory connections, as well as an analog 0-1mA non-isolated output. Isolated output 4-20mA is also available. An RS-232 connector for a computer interface is also provided.
Equipped with a thin film keyboard and LCD display, it can be used without an external computer.
2: Hydran 201Ci-1 single-channel controller
The H201Ci-1 control unit is a complete single-channel controller used in conjunction with the H201Ti Intelligent transmitter. Digital/analog boards handle communication transactions and provide display, alarm and analog output functions.
The main terminal is easy to connect: AC power supply; Alarm contacts (high gas, high gas and system failure); Available jump-configured non-isolated analog outputs (0-1mA, 4-20mA, 0-1V, 0-)
10V) and jumper configuration for isolated analog output. The auxiliary terminal is used as a supervisory connection to the H201 Ti intelligent transmitter. Connector for communication: RS-232 to computer or optional modem,
RS-485 connects to other H201Ci controllers.
The front door is fitted with a light-emitting diode digital display that displays the gas content in parts per million. There are also two gas alarm lights.
Three: H201Ci-C communication controller
The H201Ci-C control unit is a communication controller. It supervises up to 4 H201Ti smart transmitters, such as A transformer cabinet (including phase A,B,C, and sometimes, as well) through isolated regulatory connections
– An assist). The H201Ci-C communication controller has no display and does not provide alarm and analog output, it is specialized for the H201Ti intelligent transmitter network connected to the computer via RS-232 or modem
Screen.
The H201Ci-C is housed in a small NEMA-4X box and includes a digital circuit board that handles communications transactions, with the main terminal for easy AC power connection. Connector for communication: RS-232 to computer or optional
Purchased modem (4 connectors), RS-485 connected to other H201Ci controllers.
4: H201Ci-4 four-channel controller
The H201Ci-4 control unit is a complete four-channel controller. Designed for use with up to four H201Ti smart transmitters, housed in a NEMA-4X box. Digital/analog boards handle communications
Services, and provides scan display output, alarm and analog output.
The main terminal is easy to connect to AC power and alarm contacts (high gas, high gas and system failure). Connector for communication: RS-232 to computer or optional modem, isolated supervisory connection to
H201Ti Intelligent transmitter, RS-485 connects to other H201Ci controllers.
The front door is fitted with a light-emitting diode digital display that displays the gas content in parts per million. There are also two gas alarm lights. The display displays the ppm value for each channel one by one, while a column of small lights up
The diode indicates the channel number being displayed. The five-speed rotary switch can choose to continuously display one of the channels, or select the automatic scanning mode.
