描述

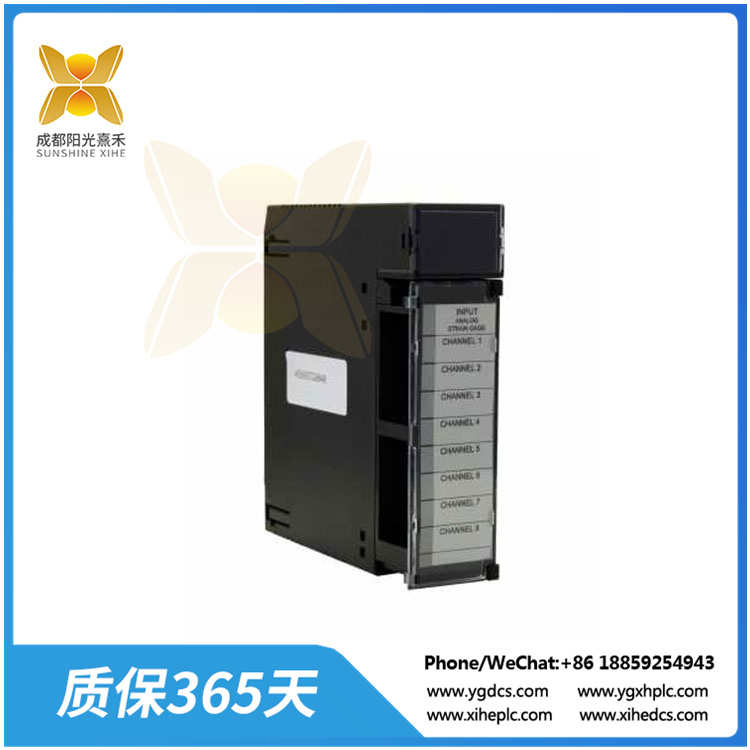

HE693STG884 高分辨率毫安輸入模塊

高分辨率毫安輸入模塊允許毫安信號直接連接到PLC，而無需外部信號處理(傳感器，變送器等)。信號的所有模擬和數字處理都在模塊上進行，精度值寫入16位分辨率的90- 30%系列AI輸入表。該模塊的輸入范圍為+/-1mA。這提供了大約0.03 ua的分辨率。另外，可以關閉單個通道，這樣未使用的通道就不會增加模塊響應時間。HE693STG884-MOD還具有每個通道的設定值，設置為%AQ值，并通過%I輸入闡明。前8%輸入表示每個通道的超量程。第二個8% I輸入是設定值超出位。當輸入值超過相應的設定值時，設定值超出位將通電。輸出(%Q)為該模塊配置，但在測量電流時不應使用。

HE693STG884連接到PLC，允許橋接應變片直接連接到模塊，無需外部信號處理(傳感器，變送器等)。信號的所有模擬和數字處理都在模塊上進行，并以16位分辨率將精確毫伏值寫入系列90- 30% AI輸入表。該模塊的輸入范圍為+/-25mV， +/-50mV或+/-100mV，可通過Logicmaster逐個通道進行配置。這分別提供了大約0.8uV、1.6uV或3.2uV的分辨率。另外，可以關閉單個通道，這樣未使用的通道就不會增加模塊響應時間。該模塊的另一個功能是監測稱重傳感器的激勵電壓并補償該信號的變化。

穩壓狀態:30mA @ 5VDC 25mA @ 24V繼電器
通道數:8
I/O要求:8%的AI, 16%的I, 8%的AQ,16%的q
橋式應變計(稱重傳感器)
輸入范圍:+/- 25mV， +/- 50mV， +/- 100mV
分辨率:0.8 uv, 1.6uV, 3.2uV
勵磁監測:10 VDC
輸入阻抗:> 1000mohms
準確性:.03%
最大正常電壓輸入:100mV/td>
最大安全電壓:+/- 35VDC或交流
A/D轉換類型:積分
A/D轉換時間:每秒35通道
工作溫度:0至60°C(32至140°F)
相對濕度:5% ~ 95%無冷凝

HE693STG884 高分辨率毫安輸入模塊

The High Resolution MilliAmp Input Module allows a milliAmp signal to be directly connected to the PLC withoutexternal signal processing (transducers, transmitters, etc.). All analog and digital processing of the signal isperformed on the module, and precision values are written to the Series 90-30 %AI input table with 16 bit resolution. The input range of this module is +/-1mA. This provides a resolution of approximately .03uA. Also, individualchannels can be turned off, so that unused channels do not increase module response time. The HE693STG884-MOD also features a setpoint for each channel, set with %AQ values and enunciated with %I inputs. The first 8 %Iinputs represent overrange for each individual channel. The second 8 %I inputs are setpoint exceeded bits. Whenthe input value exceeds the corresponding setpoint value the setpoint exceeded bit will be energized. Outputs (%Q)are configured for this module but should not be utilized while measuring current.

The?HE693STG884?connects to a PLC to allow bridged strain gages to connect directly to the module without external signal processing (transducers, transmitters, etc). All analog and digital processing of the signal is performed on the module, and precision millivolt values are written to the series 90-30 %AI input table with 16-bit resolution. The input range of this module is +/-25mV, +/-50mV or +/-100mV which is configurable through Logicmaster on a channel-by-channel basis. This provides a resolution of approximately 0.8uV, 1.6uV, or 3.2uV, respectively. Also, individual channels can be turned off, so that unused channels do not increase module response time. Another ability of this module is to monitor the load cell excitation voltage and compensate for variations in this signal.

Power Consumption Inrush: 160mA @ 5VDC 80mA @ 24V Relay Steady State: 30mA @ 5VDC 25mA @ 24V Relay
Number of Channels： 8
I/O Required ：8-%AI, 16-%I,8-%AQ,16%Q
Strain Gages Supported Bridged (Load Cells)
Input Range： +/- 25mV, +/- 50mV, +/- 100mV
Resolution： .8uV, 1.6uV, 3.2uV, respectfully
Excitation Monitoring ：10 VDC
Input Impedence： >1000 Mohms
Accuracy ：.03%
Max Normal Voltage Input ：100mV/td>
Maximum Safe Voltage: +/- 35VDC or AC
A/D Conversion Type :Integrating
A/D Conversion Time :35 channels per second
Operating Temperature :0 to 60°C (32 to 140°F)
Relative Humidity :5% to 95% non-condensing
