IC200ALG260B 可以與其他設備、傳感器和執行器進行連接，實現數據的傳輸和控制
IC200ALG240是一款由GE Intelligent Platforms制造的VersaMax模擬輸入模塊。該模塊能夠處理來自8個模擬設備的輸入信號，并提供16位分辨率的數據輸出。它有兩種工作模式：電壓模式和電流模式。在電壓模式下，輸入范圍為1至20毫安；在電流模式下，輸入范圍為±10伏。此外，該模塊具有八個隔離輸入通道，每個通道的電流范圍為4至20毫安。
IC200ALG240模塊通常用于工業自動化和控制系統中，以實現模擬信號的采集、轉換和處理。它可以與其他設備、傳感器和執行器進行連接，實現數據的傳輸和控制。由于其高可靠性和穩定性，該模塊廣泛應用于各種工業環境和使用場景。
在選擇和使用IC200ALG240模塊時，需要根據實際的應用場景和需求來確定合適的模塊類型和規格，并參考產品手冊或聯系制造商獲取準確信息。同時，還需要遵守相關的安全規范和操作指南，以確保設備的正常運行和人身安全。
需要注意的是，產品規格和功能可能隨時間而更新，建議直接聯系制造商或查閱最新的技術文檔以獲取最新信息。此外，在購買和使用模塊時，還需要注意價格、供貨周期、售后服務等因素，以確保項目的順利進行。

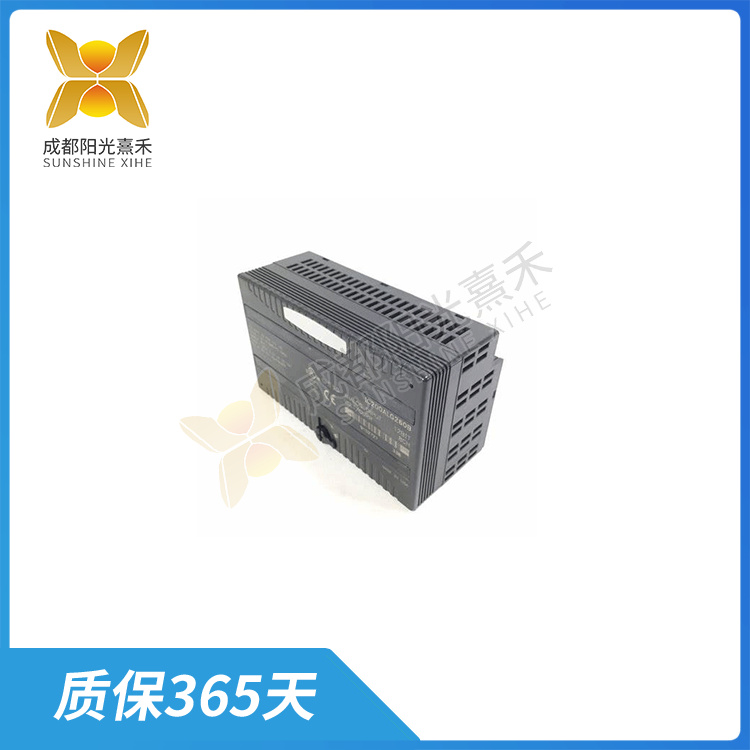

IC200ALG260B是Versamax I/O平臺的模擬輸入模塊。以下是其主要參數和特點：
- 通道數：該模塊是一個八（8）通道輸入模塊。
- 信號接受范圍：可接受單極和雙極電壓信號，具體分別為0至10V和+/-10VDC，以及電流輸入信號，如4-20 mA。
- 分辨率：該模塊將接收到的信號轉換為分辨率為12位的數字?jǐn)?shù)據。
- 電源需求：該模塊無需外部電源即可運行。
- 隔離額定值：具有持續250VAC和持續1分鐘1500VAC的光隔離額定值。
- LED狀態指示器：包括內部電源LED（INT PWR LED）和OK LED。
- 電流消耗：在5 VDC時，它的最大背板電流消耗為130 mA。
- 診斷功能：具有內置的失電診斷功能。
- 可配置參數：包括范圍選擇和模式選擇。
- 輸入阻抗：在電壓模式下的最大輸入阻抗為126千歐，在電流模式下的最大輸入阻抗為200歐姆。
- 精度：該模塊的典型精度為滿量程的+/-0.3%，在25攝氏度下工作時為滿量程的+/-0.5%，在0-60攝氏度下為滿量程的+/-1%。
- 分辨率（電流模式）：分辨率為4?A =當前模式下的8個計數。
- 分辨率（電壓模式）：雙極性電壓模式下2.5 mV = 8次計數，單極性電壓模式下2.5 mV = 8次計數。
- 串?dāng)_抑制：該模塊的通道間串?dāng)_抑制最小為30 dB。
- 接線配置：支持單端接線配置，其中模擬測量以接地線為基準。
IC200ALG260B 可以與其他設備、傳感器和執行器進行連接，實現數據的傳輸和控制
The IC200ALG240 is a VersaMax analog input module manufactured by GE Intelligent Platforms. The module is capable of processing input signals from eight analog devices and provides data output with 16-bit resolution. It has two operating modes: voltage mode and current mode. In voltage mode, the input range is 1 to 20 mA; In current mode, the input range is ±10 volts. In addition, the module has eight isolated input channels, each with a current range of 4 to 20 mA.
The IC200ALG240 module is commonly used in industrial automation and control systems to achieve analog signal acquisition, conversion and processing. It can be connected with other devices, sensors and actuators to achieve data transmission and control. Due to its high reliability and stability, the module is widely used in various industrial environments and use cases.
When selecting and using the IC200ALG240 module, determine the appropriate module type and specifications based on actual application scenarios and requirements, and refer to the product manual or contact the manufacturer for accurate information. In addition, you must comply with relevant safety regulations and operation guidelines to ensure the normal operation of the device and personal safety.
It is important to note that product specifications and features may be updated over time, it is recommended to contact the manufacturer directly or consult the latest technical documentation for the latest information. In addition, when purchasing and using modules, it is also necessary to pay attention to factors such as price, supply cycle, after-sales service to ensure the smooth progress of the project.
IC200ALG260B is the analog input module for the Versamax I/O platform. The following are its main parameters and characteristics:
Number of channels: The module is an eight (8) channel input module.
Signal acceptance range: Unipolar and bipolar voltage signals ranging from 0 to 10V and +/-10VDC, respectively, as well as current input signals such as 4-20 mA are acceptable.
Resolution: The module converts the received signal into digital data with a resolution of 12 bits.
Power requirements: The module can operate without an external power supply.
Isolation rating: Has an optical isolation rating lasting 250VAC and 1500VAC lasting 1 minute.
LED status indicator: including internal power LED (INT PWR LED) and OK LED.
Current consumption: At 5 VDC, its maximum backplane current consumption is 130 mA.
Diagnostic function: With built-in power loss diagnostic function.
Configurable parameters: Range selection and mode selection.
Input impedance: The maximum input impedance in voltage mode is 126 kω, and the maximum input impedance in current mode is 200 ohms.
Accuracy: The typical accuracy of the module is +/-0.3% of full scale, +/-0.5% of full scale when operating at 25 degrees Celsius, and +/-1% of full scale at 0-60 degrees Celsius.
Resolution (current mode) : Resolution is 4? A = 8 counts in the current mode.
Resolution (voltage mode) : 2.5mV = 8 counts in bipolar voltage mode, 2.5mV = 8 counts in unipolar voltage mode.
Crosstalk suppression: The module has a minimum interchannel crosstalk suppression of 30 dB.
Wiring configuration: Single-ended wiring configuration is supported, where the analog measurement is based on the ground cable.
