描述

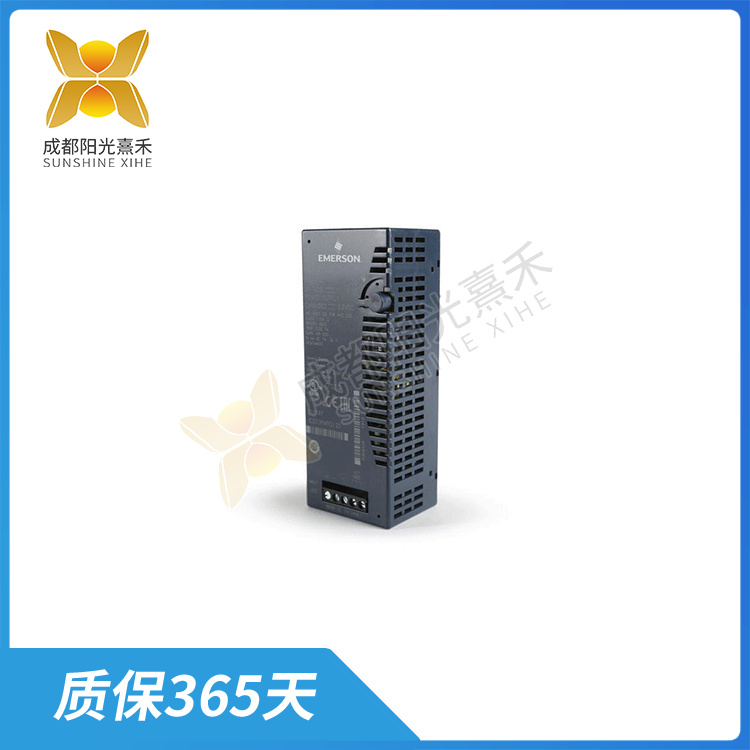

IC200PWR002 用于在18-30 VDC的輸入電源電壓下工作

IC200PWR002是VersaMax平臺的一部分,以前由GE Intelligent Platforms (GE IP)制造，目前由艾默生自動化生產。該模塊可用作主電源或電源升壓器載體。當用作主電源時，該模塊用于向安裝并連接至背板VersaMax供電。當用作升壓電源時，該模塊安裝在升壓托架上，作為補充電源。

它有5個螺絲型端子，位于模塊的底部前面板上。左邊的兩個端子是+DC和-DC端子，而第三個端子是接地端子。最后兩個端子不需要連接。

IC200PWR002設計用于在18-30 VDC的輸入電源電壓下工作，標稱電源電壓為24 VDC。模塊輸入功率為11瓦，保持時間為10毫秒。在24伏直流電下，最長持續時間為6毫秒的浪涌電流額定值為20安培，在30伏直流電下，最長持續時間為6毫秒的浪涌電流額定值為25安培。模塊輸出特性包括輸出電壓為5 VDC和3.3 VDC,輸出電流為1 .5安培，在3.3 VDC時最大,在5 VDC時為1.0安培。但是，輸出電流不能超過最大輸出1.5安培。該電源模塊還安裝有內部短路、過載和反極性保護。

該電源模塊主要用于VersaMax I/O模塊、網絡接口單元(NIU)和中央處理器單元(CPU)。

GE Fanuc IC200PWR002擴展電源模塊用于為Io、CPU和Niu等背 板設備供電。如果連接到網絡接口單元(NIU)或中央處理器單元(CPU),擴展電源模塊將充當主電源。但是，如果連接到電源升壓器托架，擴展電源模塊將充當輔助電源。IC200PWR002模塊的輸出和輸入電壓需要DC電源。它的輸出電壓額定值為3.3伏DC和5伏DC,輸入電壓額定值為24伏DC。5伏DC和3.3伏DC 下的輸出電壓決定了模塊的輸出電流，電流不應超過1.5安培。
它有一個擴展電源選項，但沒有隔離電源。

GE Fanuc Versamax IC200PWR002擴展電源模塊的額定輸入功率為11瓦，保持時間為10毫秒。它在30伏DC下的浪涌電流額定值為25安,在24伏
DC下的浪涌電流額定值為20安。IC200PWR002擴 展電源模塊的總輸出電流最大額定值應為1.5安培。如果輸出電壓額定值為3.3伏,輸出電流將達到0.25安培。如果輸出電壓額定值為5伏，輸出電流將達到1 .5安減去所用電壓的3.3伏。它的尺寸為49毫米(1 .93英寸)x 133.4毫米(5.25英寸)x 39毫
米(1.54英寸)。

IC200PWR002 用于在18-30 VDC的輸入電源電壓下工作

The IC200PWR002 is part of the VersaMax platform, formerly manufactured by GE Intelligent Platforms (GE IP) and currently produced by Emerson Automation. The module can be used as a main power supply or a power supply
Booster carrier. When used as the main power supply, the module is used to supply power to the VersaMax, which is installed and connected to the backplane. When used as a boost power supply, the module is mounted on a boost bracket as a supplementary power supply.

It has 5 screw type terminals located on the bottom front panel of the module. The two terminals on the left are the +DC and -DC terminals, while the third terminal is the ground terminal. The last two terminals do not need to be connected.

The IC200PWR002 is designed to operate at an input supply voltage of 18-30 VDC, with a nominal supply voltage of 24 VDC. Module input power is 11 watts and hold time is 10 milliseconds. At 24 volts DC
A surge current with a maximum duration of 6 ms is rated at 20 amps under electricity and a surge current with a maximum duration of 6 ms at 30 volts DC is rated at 25 amps. Module output features include
The output voltage is 5 VDC and 3.3 VDC, and the output current is 1.5 amps, with a maximum of 3.3 VDC and 1.0 amps at 5 VDC. However, the output current cannot exceed the maximum output 1.5 amps. This power source
Modules are also equipped with internal short circuit, overload and reverse polarity protection.

The power module is mainly used in VersaMax I/O modules, network interface units (NIU), and central processing unit (CPU).

The GE Fanuc IC200PWR002 expansion power module is used to power back board devices such as I/O, CPU, and Niu. If connected to a network interface unit (NIU) or central processing unit (CPU), the expansion power module will act as the main power supply. However, if connected to the power booster bracket, the expansion power module will act as an auxiliary power supply. The output and input voltages of the IC200PWR002 module require DC power supplies. It has an output voltage rating of 3.3 V DC and 5 V DC, and an input voltage rating of 24 V DC. The output voltage at 5 V DC and 3.3 V DC determines the output current of the module, and the current should not exceed 1.5 amps.
It has an extended power option, but no isolated power.

The GE Fanuc Versamax IC200PWR002 expansion power module has a rated input power of 11 watts and a hold time of 10 milliseconds. It has a surge current rating of 25 amps at 30 volts DC, at 24 volts
The inrush current rating at DC is 20 amps. The maximum total output current rating of the IC200PWR002 expansion power module should be 1.5 amps. If the output voltage rating is 3.3 volts, the output current will reach 0.25 amps. If the output voltage rating is 5 volts, the output current will be 1.5 amps minus 3.3 volts of the voltage used. It measures 49 mm (1.93 in)x 133.4 mm (5.25 in)x 39 millimetres
Meters (1.54 inches).
