IC200PWR002D 電源模塊

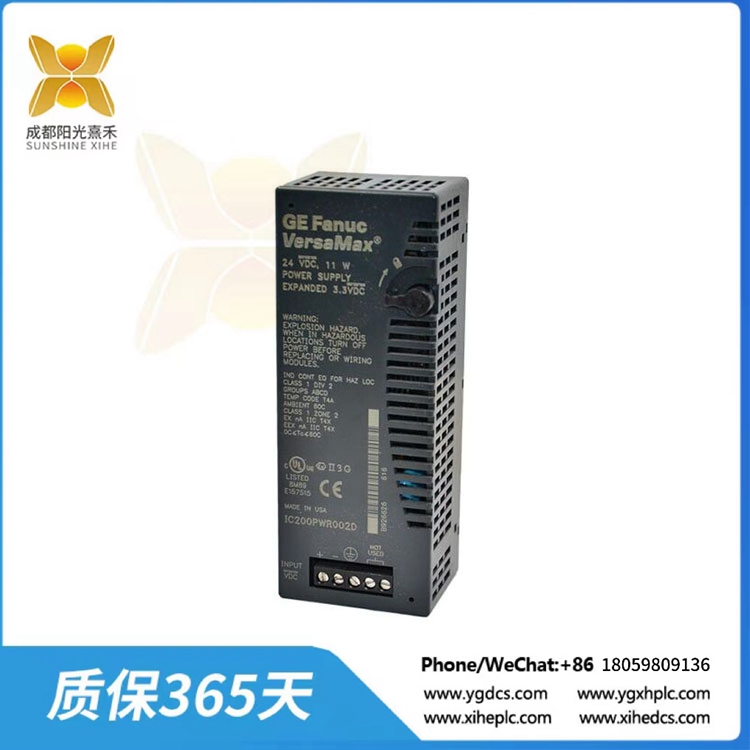

IC200PWR002D是VersaMax平臺的一部分電源模塊，該平臺以前由GE智能平臺(GE IP)制造，目前由艾默生自動化生產。該模塊既可以作為主電源，也可以作為電源增強載體。當用作主電源時，該模塊用于為安裝并連接到背板上的VersaMax提供電源。當用作升壓電源時，該模塊安裝在升壓載體上，起到補充電源的作用。它有5個螺釘型端子位于模塊的底部前面板上。左邊兩個端子為+DC和-DC端子，第三個端子為接地端子。最后兩個端子不需要連接。

IC200PWR002D設計在18- 30vdc的輸入電源電壓下工作，標稱電源電壓為24vdc。模塊輸入功率為11瓦，保持時間為10毫秒。它的浪涌電流額定值為20安培，在24 VDC時最長持續時間為6毫秒，在30 VDC時最長持續時間為25安培，最長持續時間為6毫秒。模塊的輸出特性包括輸出電壓為5vdc和3.3 VDC，輸出電流為1.5安培，最大輸出電壓為3.3 VDC，最大輸出電流為1.0安培，最大輸出電流不能超過1.5安培。該電源模塊還安裝了內部短路，過載和反極性保護。

該電源模塊主要用于VersaMax I/O模塊，網絡接口單元(NIU)和中央處理器單元。

GE FanucIC200PWR002D級聯電源模塊用于為背板I/ o、cpu、niu等設備供電。當連接到NIU (network interface unit)或CPU (central processing unit)時，擴展后的電源模塊作為主電源。但如果接在電源升壓載體上，則擴展電源模塊作為二次電源。IC200PWR002模塊的輸出和輸入電壓均為直流電源。它的輸出電壓額定值為3.3伏直流和5伏直流，輸入電壓額定值為24伏直流。5伏直流電和3.3伏直流電的輸出電壓決定了模塊的輸出電流，電流不能超過1.5安培。它有一個擴展電源選項，但沒有孤立的電源。

GE Fanuc Versamax IC200PWR002D擴展電源模塊的輸入額定功率為11瓦，保持時間為10毫秒。它也有一個沖擊電流額定值為25安培在30伏直流和一個20安培在24伏直流。IC200PWR002擴展電源模塊的總輸出電流最大額定不超過1.5安培。額定輸出電壓為3.3伏時，輸出電流可達0.25安培。如果輸出額定電壓為5v，則輸出電流為1.5安培減去實際電壓的3.3伏特。尺寸為49毫米(1.93英寸)x 133.4毫米(5.25英寸)x 39毫米(1.54英寸)。

IC200PWR002D 電源模塊

The IC200PWR002D is a Power supply module that is part of the VersaMax platform, formerly manufactured by GE Intelligent Platforms (GE IP), currently produced by Emerson Automation. This module can be used as primary power supply or as a power supply booster carrier. When used as a primary power supply, this module is used to provide power to the enable the VersaMax installed and connected to the backplane. When used as a booster power supply, this module is installed to a booster carrier and function as a supplemental power supply. It has 5 screw type terminals located on the module’s bottom front panel. Two terminal from the left are the +DC and -DC terminals while the 3rd terminal is the ground terminal. The last Two terminals require no connection.

The IC200PWR002D is designed to operate at an input supply voltage of 18-30 VDC with nominal supply voltage of 24 VDC. The modules input power is 11 Watts with holdup time of 10 ms. It has an inrush current rating of 20 Amperes with maximum duration of 6 ms at 24 VDC and 25 Amperes for maximum duration of 6 ms at 30 VDC. The module output characteristics include output voltage of 5 VDC and 3.3 VDC with output current of 1.5 Amperes, maximum at 3.3 VDC and 1.0 Amperes at 5 VDC however, the output current cannot exceed the maximum output which is 1.5 Amperes. This power supply module is also installed with an internal short circuit, overload and reverse polarity protection.

This power supply module is used mainly with VersaMax I/O modules, Network Interface Units (NIU) and Central Processor Units (CPUs).

The GE FanucIC200PWR002D expanded power supply module is used to supply power to backplane devices such as I/Os, CPUs, and NIUs. If connected to a network interface unit (NIU) or a central processing unit (CPU), the expanded power supply module acts as the primary power supply. However, if it is connected to the power supply booster carrier, the expanded power supply module acts as the secondary power supply. The IC200PWR002 module requires DC power for its output and input voltage. It has an output voltage rating of both 3.3 Volts DC and 5 Volts DC, and an input voltage rating of 24 Volts DC. The output voltage, both at 5 Volts DC and 3.3 Volts DC, determines the module’s output current and the current should not exceed 1.5 Amps. It has an extended power option, but no isolated power.

The GE Fanuc Versamax IC200PWR002D expanded power supply module has an input power rating of 11 Watts and a holdup time of 10 milliseconds. It also has an inrush current rating of 25 Amps at 30 Volts DC and one of 20 Amps at 24 Volts DC. The total output current of the IC200PWR002 expanded power supply module should have a maximum rating of 1.5 Amps. If the output voltage rating is 3.3 Volts, the output current will reach up to 0.25 Amps. If the output voltage rating is 5 Volts, the output current will reach up to 1.5 Amps minus the 3.3 Volts of the voltage that is used. It has dimensions of 49 millimeters (1.93 inches) x 133.4 millimeters (5.25 inches) x 39 millimeters (1.54 inches).
