描述

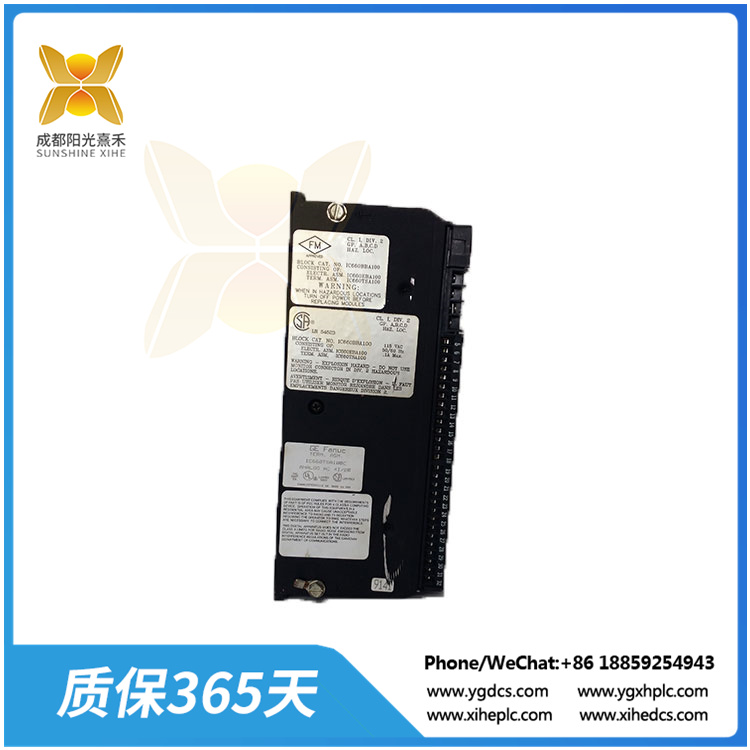

IC660BBA100 模擬 I/O 模塊

額定電壓:交流電115伏
點數:4個輸入/ 2個輸出
輸入范圍:0- 10vdc， -10至+ 10vdc， -5至+ 5vdc, 0- 5vdc, 4- 20ma
輸出范圍:0-10 VDC， -10至+10 VDC， -5至+5 VDC, 0-5 VDC, 4-20 mA
工作電壓:98 – 132伏
每公共點:一組4個輸入和一組2個輸出

IC660BBA100是GE Genius系列的模擬I/O塊。該模塊的額定電壓為115 VAC電壓/電流。IC660BBA100模塊有四個獨立的輸入電路和兩個獨立的輸出電路。這個模塊非常靈活，可以與各種模擬I/O設備兼容。IC660BBA100 Block上的每個電路都可以在以下五個模擬范圍內接收或發送信號:-5伏DC至+5伏DC， -10伏DC至+10伏DC, 0-5伏DC或4-20 mA/1-5伏DC, 0-10伏DC。IC660BBA100上的前四路電路為輸入電路。輸入電路共享一個12位模擬到數字(A/D)轉換器。返回塊將每個輸入信號電流轉換為數字計數值。然后將計算值轉換為表示該特定輸入的工程單位的整數。

其余兩個是由12位數模轉換器提供的輸出電路。然后，IC660BBA100塊將從處理器接收的工程單元輸出轉換為數字計數值。然后將計數值轉換為輸出信號電壓。精度在10V范圍內為50mV, 5V范圍內為5mV, 4-20mA范圍內為100uA。該模塊的內部電源方便地驅動高達300歐姆的電流模式輸出負載。負載不超過2K歐姆時，需要外接24 VDC或48 VDC電源。

其他IC660BBA100功能包括獨立擴展每個單獨輸入和輸出的能力;能夠為每個輸入和輸出啟用或禁用向主機的故障報告;輸入可在正常模擬輸入模式下工作，或僅報告其報警狀態;正常輸入模式和報警輸入模式下各輸入的低、高報警限值;兩個輸出的Power默認值;輸出，因此可以配置為保持最后狀態或默認，如果從處理器的通信丟失;并輸入低報警和高報警檢測。IC660BBA100可與任何手持監視器一起使用。但是，如果使用型號為ic66hh501的手持監視器，則必須更改波特率配置或配置冗余功能。

IC660BBA100 模擬 I/O 模塊

Rated Voltage: 115 volts AC
# of Points: 4 Inputs / 2 Outputs
Input Range: 0-10 VDC, -10 to +10 VDC, -5 to +5 VDC, 0-5 VDC, 4-20 mA
Output Range: 0-10 VDC, -10 to +10 VDC, -5 to +5 VDC, 0-5 VDC, 4-20 mA
Operating Voltage: 98 – 132 VAC
Points per Common:?? One group of 4 Inputs and one group of 2 Outputs

IC660BBA100 is an analog I/O Block from the GE Genius series. The block has a rated voltage of 115 VAC Voltage/Current. The IC660BBA100 block has four independent input circuits and two independent output circuits. This block is quite flexible, which allows compatibility with a wide variety of analog I/O devices. Each circuit on IC660BBA100 Block can either receive or deliver signals in any of these five analog ranges: -5 volts DC to +5 volts DC, -10 volts DC to +10 volts DC, 0-5 volts DC, or 4-20 mA/1-5 volts DC, 0-10 volts DC.? The first four circuits on IC660BBA100 are inputs. The input circuits share one 12 bit analog to digital (A/D) converter. The block in-return converts each input signal current to a digital count value. It then translates the counted value to an integer that represents the engineering units for that particular input.

The other remaining two are output circuits served by a 12 bit digital to analog (D/A) converter. IC660BBA100 block then converts the engineering units output received from the processor to a digital count value. It then converts the counted value to an output signal voltage. Accuracy is within 50mV on the 10V range and 5mV on the 5V range and 100uA on the 4-20mA range.?? The block’s internal power supply conveniently drives the current mode outputting loads of up to 300 Ohms each. An external 24 or 48 VDC power supply is required for loads up to 2K Ohms.

Other IC660BBA100 features include the ability to independently scale for each individual input and output; the ability to either enable or disable fault reports to the host for each input and output; inputs that can function either in normal analog input mode, or report just its alarm status; low and high alarm limits for each input both in normal input mode and alarm input mode; power default values for both output; outputs that can consequently be configured to hold last state or default if communication from the processor is lost; and input Low Alarm and High Alarm detection.? IC660BBA100 can be used alongside any handheld monitor. However, if using handheld monitor model IC66HHM501, the baud rate configuration must be changed or have redundancy features configured.
