描述

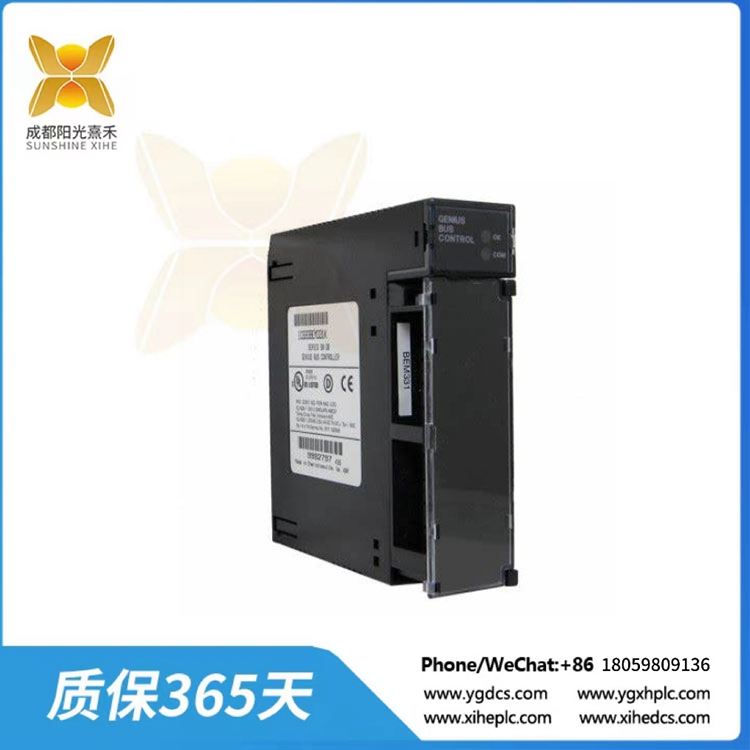

IC693BEM341 工廠儀表協議(FIP)兼容模塊

IC693BEM341是一個工廠儀表協議(FIP)兼容模塊，屬于艾默生自動化的系列90-30可編程邏輯控制器(PLC)系列，以前由GE發那科自動化制造。該模塊是對以前的總線控制器的升級，因?yàn)镮C693BEM341具有2.5 MHz的數據速率。IC693BEM341特別具有三(3)個內置通信接口，兩個(2)個9針d殼FIP總線連接器和一個(1)RS485通信接口，用于通過固件修改進行軟件升級。該模塊還安裝了六(6)個LED狀態指示燈，如模塊OK，運行，載波檢測通道1;信道2的載波檢測信道1使能傳輸，信道2使能傳輸。該FIB總線控制器模塊設計用于通過FIB總線到FIP總線接口與90-70系列PLC等各種設備進行接口;現場控制站通過現場控制I/O模塊通過現場總線接口單元(BIU);遠程I/O滴通過FIP遠程I/O掃描模塊和通用設備使用FIP接口模塊。IC693BEM341需要一個8.0或更高版本的90-30系列CPU。對于配置，該模塊需要使用手持編程器(HHP)， windows編程軟件IC641CTLxxx Release 2.0或更高版本，或FBCLOAD配置實用程序來下載有效的配置到模塊。該模塊增加的功能包括顯示固件版本、最多1024個布爾值的時間戳和模式30，其中包括冗余、從I/O設備管理、時間戳、消息傳遞服務、MIPS同步交換和外部配置接收。

IC693BEM341控制器是GE發那科公司設計制造的FIP總線控制器。該部件屬于GE系列90-30。這種特定的控制器模型是對舊的總線控制器的升級，它包括不同的創新功能。當將該型號與GE 340控制器等舊型號進行比較時，除了新的IC693BEM341型號的網絡速度有所提高外，它們?cè)诠δ苌鲜窍嗤?。GE Fanuc IC693BEM341 FIP總線控制器是總線控制器的2.5兆赫版本。它也適用于固件版本3.01。該總線控制器需要任何版本8.10或更高版本的IC693 PLC CPU。該現場總線控制器的另一個配置要求是它需要一個手持編程器或HHP。本HHP有一個由Windows開發的編程軟件，應該是2.0或更高版本。必須使用FBCLOAD配置實用程序來配置控制器，使其與網絡一起正常運行。

GE Fanuc IC693BEM341 FIP Bus控制器支持Configuration Mode 30。該模式是先前總線控制器版本的配置模式11的擴展，它為從設備(包括I/O巢、驅動器、plc和控制站)添加了不同的功能，如冗余、管理和監控功能。它還可以為布爾值加上時間戳，并通過FIP網絡處理消息傳遞服務和接收外部配置。GE Fanuc IC693BEM341 FIP總線控制器中提供的一些更正是為了解決先前的問題，該問題產生了模塊丟失故障，當沒有此類故障時，PLC CPU報告了該故障。另一個已經糾正的問題是PLC應用程序的狀態經常被錯誤地確定。

IC693BEM341 工廠儀表協議(FIP)兼容模塊

The IC693BEM341 is a Factory Instrumentation Protocol (FIP) compatible module that belongs to the Series 90-30 Programmable Logic Controller (PLC) series of Emerson Automation, formerly manufactured by GE Fanuc Automation. This module is an upgrade to the previous Bus Controller as the IC693BEM341 comes with a data rate of 2.5 MHz. The IC693BEM341 comes with Three (3) built-in communication interfaces particularly, Two (2) 9-pin D-shell FIP Bus connectors and One (1) RS485 communication interface that is used for software upgrade through firmware modification. This module is also installed with Six (6) LED status indicators such as Module OK, Run, Carrier Detection for Channel 1; Carrier Detection for Channel 2; Transmit Enable for Channel 1 and Transmit enabled for Channel 2. This FIB Bus controller module is designed to interface with a variety of devices such as Series 90-70 PLC via FIB bus to FIP bus interface; Field Control stations through Field control I/O modules via Filed Bus Interface Unit (BIU); Remote I/O drops via FIP Remote I/O scanner modules and Generic devices using FIP interface module. The IC693BEM341 requires a Series 90-30 CPU with release 8.0 version or greater. For configuration, the module requires the use of a Hand-Held Programmer (HHP), windows programming software IC641CTLxxx Release 2.0 or later, or the FBCLOAD configuration utility to download the valid configuration to the module. The added functionalities to this module include the capability of displaying Firmware version, timestamping of up to 1024 Boolean values, and mode 30 which includes redundancy, slave I/O device management, time stamping, messaging services, MIPS synchronous exchanges, and external configuration reception.

The IC693BEM341 controller is a FIP Bus controller that has been designed and manufactured by GE Fanuc. This part belongs to GE Series 90-30. This specific controller model is an upgrade for older Bus controllers and it includes different innovative features. When comparing this model to the old one like the GE 340 controller, they are functionally identical except that the speed of the network has been improved in the new IC693BEM341 model. The GE Fanuc IC693BEM341 FIP Bus controller is the 2.5-Megahertz version of the bus controller. It also works with firmware version 3.01. This Bus controller requires any IC693 PLC CPU that is version 8.10 or later. Another configuration requirement for this field bus controller is that it needs a Hand-Held Programmer or HHP. This HHP has a programming software developed by Windows and it should be version 2.0 or later. The FBCLOAD configuration utility must be used to configure the controller to operate properly with the networks.

The GE Fanuc IC693BEM341 FIP Bus controller supports Configuration Mode 30. This mode is an extension of Configuration Mode 11 from previous Bus controller versions and it adds different features such as redundancy, management, and monitoring functions for slave devices that include I/O nests, drives, PLCs, and control stations. It can also time-stamp the Boolean values and handle messaging services and the reception of external configurations through the FIP network. Some of the corrections provided in the GE Fanuc IC693BEM341 FIP Bus controller were made to address a previous problem that produced a loss of Module fault that was reported by the PLC CPU when there was no such fault. Another problem that has been corrected was one where the state of the PLC application was often determined incorrectly.
