描述

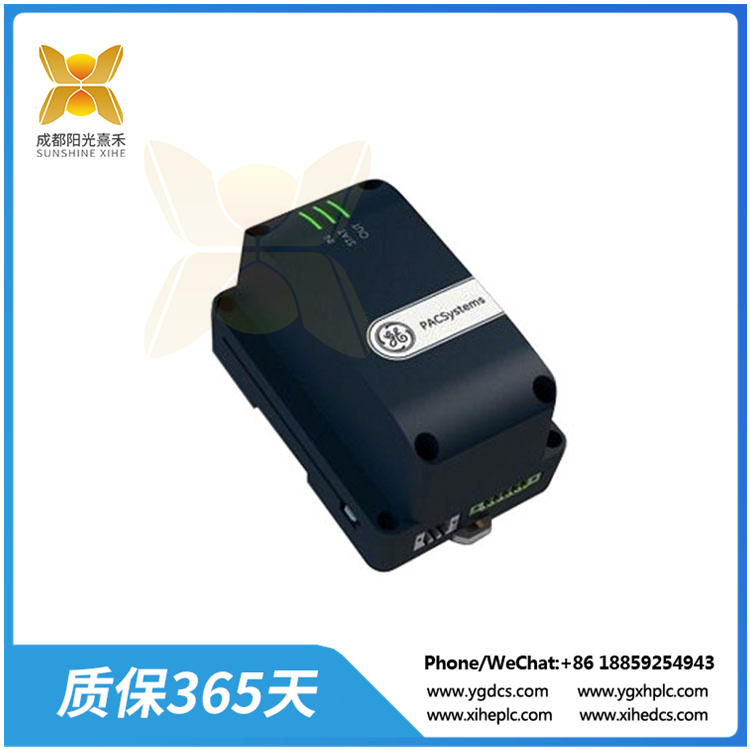

IC695ACC402 RX3i 能量包

1. 概述
ACC402 EnergyPack專用于cpe330 RX3i CPU。它在電源波動或斷電期間保留控制器中的用戶內存。

如果系統電源丟失，能量包保持足夠長的電源，以便連接的cpe330將其用戶內存內容寫入非易失性內存。當系統電源恢復時，如果CPE330配置為從RAM上電，則恢復用戶內存。

ACC402 Energy Pack通過專用線纜IC695CBL002(如上所示)連接到ic695cpe330 CPU。這種安排允許能量包源電源從RX3i背板，以充電其電路。該電纜還允許CPU監控能源包的狀態。在背板電源丟失時，CPU自動切換到能量包電源，確保有序的斷電順序。

2. 硬件安裝
ACC402能源包可以安裝在標準EN50022 DIN導軌上或直接安裝在設備面板上。它被設計為安裝在cpe330控制器附近，并使用提供的1m電纜(IC695CBL002)連接到控制器。

散熱:設備四面(左、右、上、下)的散熱間隙不小于25mm。

在DIN導軌上安裝能源包能源包很容易扣到DIN導軌上。不需要任何工具。

IC695ACC402 RX3i 能量包

1. Overview
The ACC402 EnergyPack is usedexclusively with theCPE330 RX3i CPU. Itpreserves usermemory in theController duringpower fluctuationsor outages.

If system power islost, the Energy Packmaintains powerlong enough for theconnected CPE330to write its usermemory contents tonon-volatilememory. Whensystem power isrestored, the usermemory is restoredif the CPE330 isconfigured to powerup from RAM.

The ACC402 Energy Pack is connected to theIC695CPE330 CPU via a dedicated cable IC695CBL002(shown above). This arrangement allows the Energy Packto source power from the RX3i backplane in order tocharge its circuitry. The cable also allows the CPU tomonitor the status of the Energy Pack. Upon loss ofbackplane power, the CPU automatically switches overto the Energy Pack power source, ensuring an orderlypower-down sequence.

2. Hardware Installation
The ACC402 Energy Pack may be mounted on astandard EN50022 DIN rail or directly on an equipmentpanel. It is designed to be mounted adjacent to theCPE330 Controller and connected to the Controller usingthe 1m cable provided (IC695CBL002).

Heat dissipation: A minimum clearance of 25mm(1 inch) needs to be provided on all four sides of the unit(right, left, top and bottom).

Mounting the Energy Pack on a DIN RailThe Energy Pack snaps easily onto the DIN rail. No toolsare required.
